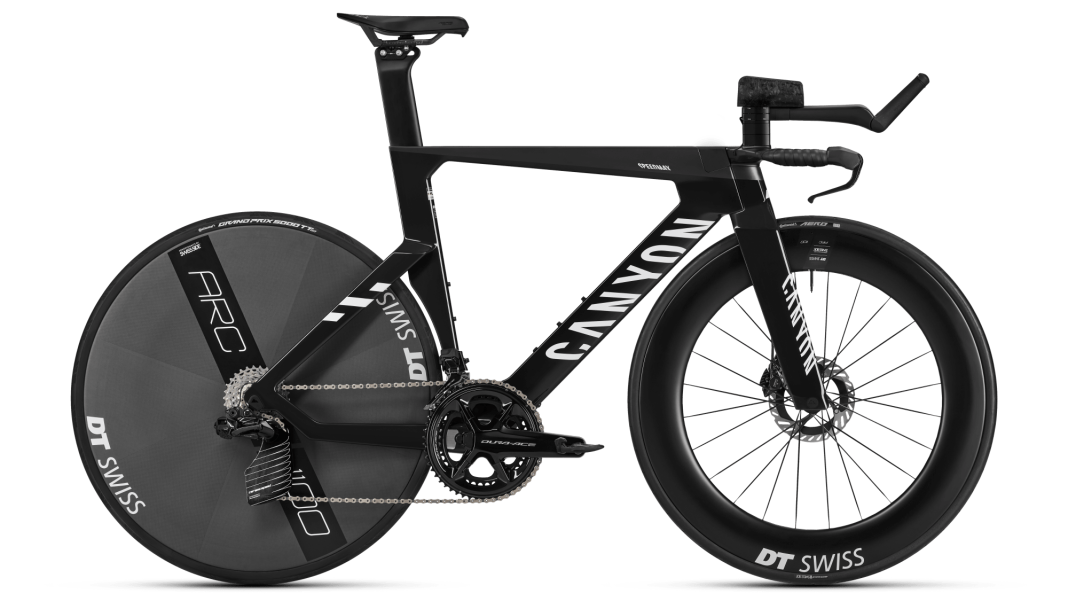

Canyon Speedmax CFR TT

The "Speedmax CFR TT" model from Canyon is a high-performance triathlon and time trial bike that impresses with its precise construction and sophisticated features. With a weight of 8.66 kg, it is designed for lightness and efficiency to meet the requirements of competitions. The maximum brake disc size is 160 mm, which ensures reliable braking performance, while the 28-inch wheels (622 mm) provide an optimal balance between speed and stability.

The design of the Speedmax CFR TT is optimised for aerodynamic efficiency. The seat post has a length of 285 mm, which in combination with a reach of 405 mm and a stack of 466 mm allows for an aggressive but comfortable riding position. The seat tube length is 474 mm, with a seat tube angle of 86 degrees, which supports a powerful pedalling motion. The top tube measures 461 mm and the head tube length is 59 mm, which contributes to a compact and aerodynamic frame profile.

In addition, 55 mm spacers are available to make it easier to adjust the handlebar height to the rider's individual needs. The standover height of 767 mm and the crank length of 170 mm are designed to put the rider in an optimum position for maximum power transfer. The wheelbase of 974 mm ensures stable riding dynamics that are impressive both on straight stretches and when cornering.

Overall, the Canyon Speedmax CFR TT is a well thought-out model for ambitious triathletes and time triallists, which impresses with its technical specifications and the careful coordination of all components. It offers an excellent combination of aerodynamics, lightness and stability to support the rider at peak performance.
