Dropbar MTBs: Three innovative gravel mountain bikes

In the gravel segment, suspension is no longer a unique selling point, but the norm. Micro-suspension systems dampen vibrations, while classic gravel suspension forks extend the range of use to include rough gravel paths and gentle forest trails. And dropbar MTBs go a significant step further. They interpret gravel not as an off-road racing bike, but as a lightweight trail bike with a drop bar.

While micro-suspension gravel bikes (20 to 30 mm) and models from the True Gravel Suspension category (30 to 50 mm) primarily prioritise efficiency, speed and long-distance comfort, dropbar MTBs consistently shift the focus towards optimum control off-road. This is precisely their speciality - and their raison d'être.

Suspension travel & suspension philosophy

Dropbar MTBs work with 60 to 100 mm suspension travel at the front, sometimes with additional suspension elements or flexing materials at the rear. This puts them clearly in the range of modern cross-country mountain bikes. The suspension is not just a comfort feature, but a central component of the riding performance:

• Higher traction on roots & steps
• More reserves for off-road descents
• Less fatigue on long trail sections

In contrast, the shorter suspension travel of the other two categories primarily serves to reduce vibrations - not to absorb them.

Geometry: closer to MTB than gravel bike

Perhaps the most decisive difference lies in the geometry. Dropbar MTBs say goodbye to classic gravel values:

These values ensure smooth running, stability and directional stability where a classic gravel bike reaches its limits.

Component choice: MTB DNA instead of gravel setup

Dropbar MTBs also show a clear edge when it comes to the parts installed:

• Suspension forksclassic MTB forks (e.g. 32 mm stanchions) instead of filigree gravel systems
• Wheels & axle standardsBoost standard (110/148 mm)
• Tyre clearanceup to 2.4 inches - beyond typical gravel dimensions
• Driveswide range, often Sram Eagle or GX level
• Brakesreal MTB brakes with larger disc options

Micro and true gravel bikes, on the other hand, deliberately rely on lighter, specific gravel components in order to maintain weight, efficiency and racing character.

So why not go straight for an MTB hardtail?

On paper, dropbar MTBs and cross-country hardtails are only separated by a few key data points: similar suspension travel, comparable tyre widths, modern, progressive geometries. In practice, however, the two concepts pursue different objectives. While the XC hardtail originates from classic mountain bike racing and strives for maximum control and efficiency off-road, the drop-bar MTB interprets off-road use more holistically - focussing on distance, versatility and fatigue reduction.

The decisive difference starts with the ergonomics. The dropbar MTB relies on the racing handlebars with several grip positions. These allow you to vary your riding position regularly and thus redistribute the pressure on your hands and shoulders. This advantage plays a major role on long gravel connections or asphalt passages between trail segments, not to mention the aerodynamic advantages of the undergrip.

In technical terrain, the other side of this coin becomes apparent. The wide flat bar of the XC hardtail offers significantly more leverage, facilitates quick corrections and is more forgiving of riding errors. The MTB hardtail has a clear advantage on steep, rough descents, tight singletrack and technical uphills. The leverage of the handlebars is higher and the handling is more natural and intuitive. Dropbar MTBs require more active riding technique and more foresighted line choice. Control is achieved primarily through balance, skill and precise timing.

Concepts also differ when it comes to efficiency. The dropbar MTB has a clear aerodynamic advantage. On open stretches, headwind passages and longer approaches, it is much easier to keep up the pace. The XC hardtail, on the other hand, scores points on climbs: the low system weight, direct acceleration and simple power transmission make it the more efficient tool for short, intensive climbs and racing with high power output.

These different philosophies are also reflected in the choice of components. XC hardtails rely on robust MTB standards, for example powerful brakes and proven MTB drivetrains. Dropbar MTBs combine MTB suspension and tyre clearance with racing handlebar controls, often in mullet configurations.

In the end, drop bar MTBs are not an alternative for mountain bikers who want to maximise their enjoyment on the trails. Rather, they are the better choice for riders who want to cover long distances, frequently switch between surfaces and experience technical terrain as part of a long route rather than in isolation.

Comparison: Dropbar MTB vs. cross-country hardtail (flatbar)

Three innovative dropbar mountain bikes

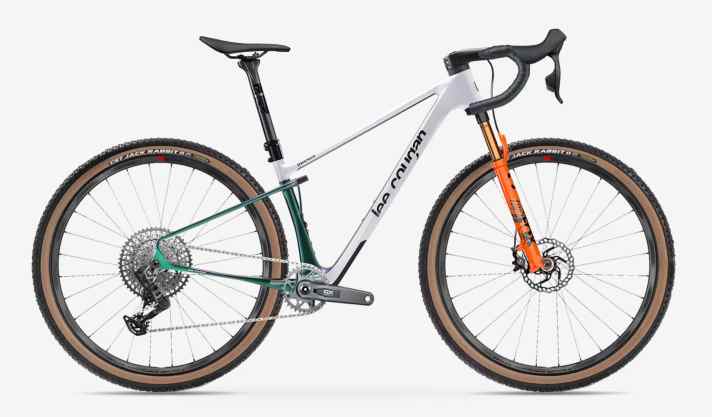

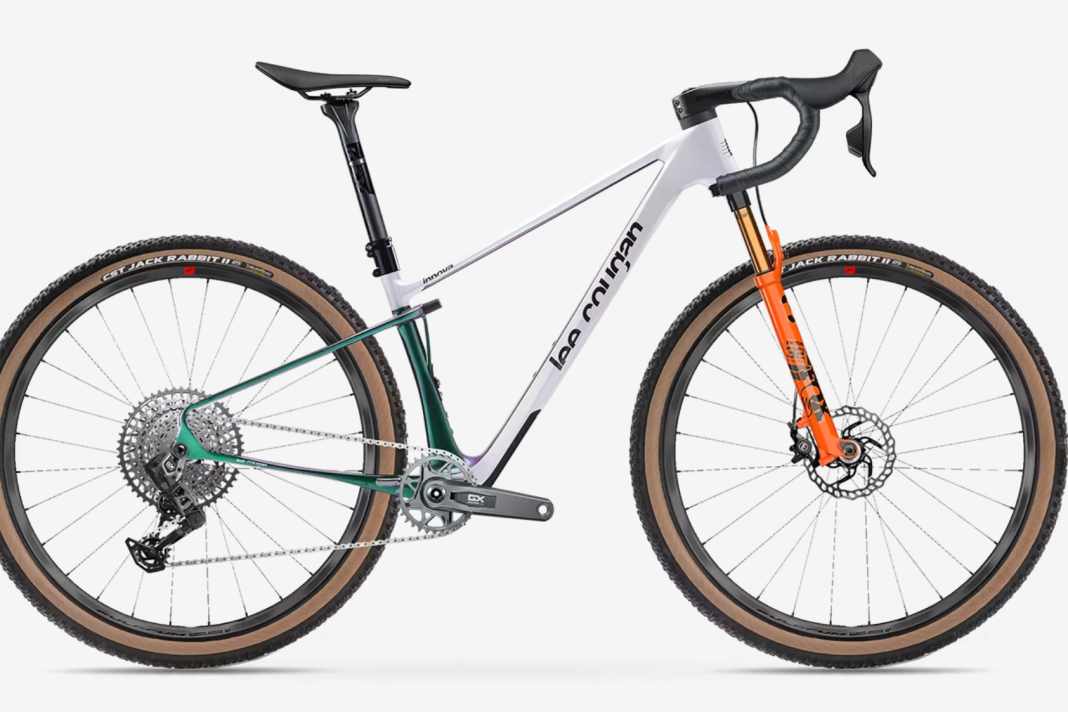

Minimalist: Lee Cougan Innova Super Gravel Mullet

The Innova Super Gravel Mullet interprets the dropbar MTB as a deliberately reduced high-performance machine. Instead of complex damper kinematics, Lee Cougan favours a controlled rear suspension flex which, in combination with a full 100 mm MTB suspension fork, offers amazing reserves in rough terrain.

The sporty, aggressive geometry is clearly aimed at control on steep descents, while the eponymous Mullet concept of road bike controls and MTB drive is designed to combine the best of both worlds. A bike for experienced riders who actively ride technical trails and want to exceed classic gravel limits.

Key technical data

• Frame: Carbon with flexing chainstays
• Suspension fork: Fox 32 Factory Kashima
• Spring travel f/h: 100 mm / approx. 30 mm
• Tyre clearance: up to 60 mm
• Drive / gearstick: Sram GX Eagle
• Brakes: Sram Rival
• Price: from approx. 4,800 euros

Character: purist, technical, rider-centred

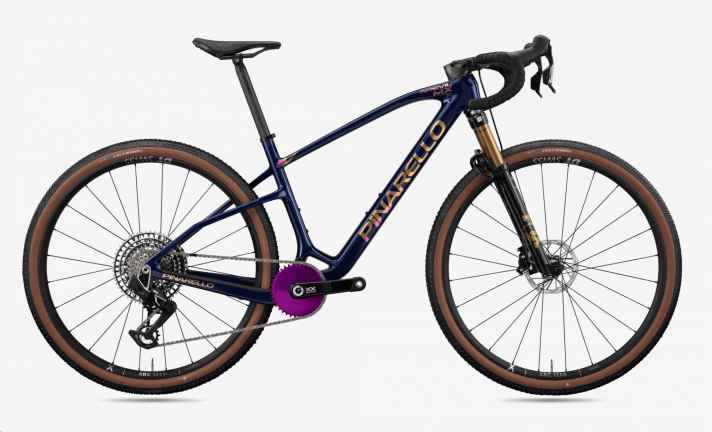

XC hardtail with drop bar: Pinarello Grevil MX

With the Grevil MX, Pinarello brings the dropbar MTB as close as possible to a modern cross-country hardtail. The 100 mm Fox suspension fork, the slack head angle and the extremely stiff carbon frame result in a bike that hardly differs from a classic MTB in terms of speed and terrain - apart from the racing handlebars.

The geometry prioritises smoothness and precision, rather than playfulness. The highest quality components and consistent system integration emphasise the clear performance claim. The Grevil MX is not an adventure all-rounder, but an uncompromising speed tool for technical terrain.

Key technical data

• Frame: Toray M40J Carbon with asymmetric rear triangle
• Spring travel v: 100 mm
• Suspension fork: Fox Float Step Cast Factory Kashima
• Tyre clearance: 50 mm recommended; space for wider tyres
• Impellers: DT Swiss XRC 1200 Spline, Boost standard (110/148 mm)
• Drive / gearstick: SRAM XX SL Eagle AXS
• Brakes: SRAM XX SL hydraulics (160 mm, compatible up to 180 mm)
• Price: approx. 8,500 euros

Character: race-orientated, high-precision, exclusive

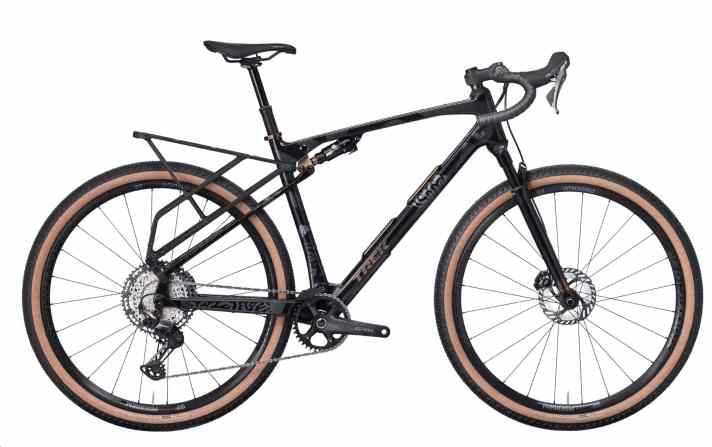

Fully for adventurers: Trek Check-OUT SL 5

The Check-OUT SL 5 takes a much more touring-orientated approach within the dropbar MTB category. As a true fully, it combines moderate front suspension with active rear suspension without sacrificing frame stiffness.

The geometry is stable, smooth-running and deliberately less race-orientated. Together with practical features such as the integrated storage compartment, the Check-OUT positions itself as a versatile adventure bike for long, technically demanding stages - even off classic gravel routes.

Key technical data

• Frame: 500 Series OCLV Carbon with IsoStrut damper and internal storage compartment
• Spring travel f/h: 60 mm / 55 mm
• Suspension fork/damper: RockShox Rudy XL Ultimate / Charger Race Day 2 Solo Air
• Impellers: Bontrager Paradigm Comp 25 (Aluminium, Tubeless Ready)
• Tyre clearance: up to 56 mm
• Drive / gearstick: Shimano GRX, 12-speed
• Brakes: Shimano GRX 800 hydraulics
• Price: approx. 4,999 euros (Check-OUT SL 7 AXS: 6,999 euros)

Character: Versatile, comfortable, adventure-orientated

Conclusion

Dropbar MTBs are not a compromise, but a clear commitment to the terrain. With MTB geometries, long suspension travel and robust components, they differ fundamentally from other gravel categories. If you want to ride trails instead of riding round them - and stick to racing handlebars - this is the logical solution.
