From the flexing frame system to the consistent gravel suspension fork: Lee Cougan Innova Super Gravel, Canyon Grizl Rift and Cannondale Topstone Carbon 1 Lefty represent three particularly innovative approaches in the three suspension categories.
Suspension on gravel bikes has different functions depending on the concept: Performance off-road, efficiency in racing, comfort on classic gravel terrain. The market has responded with very different technical solutions. While some manufacturers rely on minimalist micro-suspension concepts, others integrate classic suspension forks, while others deliberately cross the border into mountain biking. The decisive factor here is not so much the absolute amount of suspension travel as its targeted, controlled use in conjunction with frame geometry, tyre volume and riding position. This is precisely where the three models analysed here come in - each in its own way, but always with a clear conceptual approach.
What they all have in common is the abandonment of the idea of merely "adding on" suspension. Instead, it is an integral part of the overall design. The Cannondale Topstone pursues this approach with an internal frame solution that does without classic damping elements. With the Grizl, Canyon integrates a specially tuned gravel suspension fork into a sporty, rigid chassis. Finally, Lee Cougan radically rethinks gravel and combines dropbar ergonomics with full front and rear suspension.
These models thus represent three different answers to the same question: How much suspension travel on a gravel bike makes sense for which area of use, and which technical solutions can be used to provide the suspension travel efficiently?
The technical suspension solutions in detail
Cannondale Topstone Carbon 1 Lefty: Structural flex instead of classic shock absorber
The Cannondale Topstone is considered one of the style-defining models in the micro-suspension sector. The centrepiece is the so-called KingPin system, in which the rear triangle is not moved via bearings and shock absorbers, but works specifically via elastically designed carbon structures. A thru axle running through the seat tube serves as a defined pivot point at which the seat stays, chain stays and seat post can work together vertically. Depending on the load, this results in around 30 millimetres of effective suspension travel without losing energy when pedalling.
This approach is innovative in that it inextricably links suspension and frame construction. Instead of additional components, Cannondale specifically uses the material behaviour of carbon, including size-dependent layups, to ensure a consistent ride feel across all frame sizes. In combination with wide tyres, the result is a comfortable ride that not only reduces fatigue, but also significantly improves rear wheel traction - especially on washboard sections and loose climbs.
The system is complemented by the single-arm Lefty Oliver at the front. With around 40 millimetres of travel, minimal negative suspension travel and high torsional stiffness, it closes the gap between micro-suspension and genuine full suspension without noticeably compromising the steering precision of a sporty gravel bike
Cannondale Topstone - the most important facts
- Spring travel: approx. 30 mm at the rear, 40 mm at the front
- Chassis concept: KingPin Micro-Suspension, Lefty Oliver
- Tyre clearance: up to approx. 50 mm
- Field of application: Long distance, technical gravel routes, races
- Character: Efficient, low-maintenance, comfort-orientated
Equipment/price
- Frame: Topstone Carbon with KingPin suspension
- Impellers: HollowGram G-S 27 Carbon
- Drive/gear shift: SRAM Force eTap AXS (12-speed)
- Brakes: SRAM Force eTap AXS hydraulics (160 mm)
- Price: 5,499 euros (current prices; 5 models from 3,499 to 7,999 euros)
Canyon Grizl CF Rift: classic fork, retuned
With the Grizl, Canyon takes a much more classic, but also innovative approach. Instead of designing the frame itself to be flexible, it remains deliberately stiff and efficient. At the heart of the Canyon philosophy is the fork specially developed for gravel: the DT Swiss F132 ONE RIFT offers 40 mm of travel and has a remote lockout on the handlebars, which allows it to be locked out at lightning speed for sprints, asphalt passages and pedalling. The flexing Canyon dropper post is designed to provide additional comfort.
The innovation here lies less in the principle than in the design. The DT fork is not a downsized mountain bike fork, but is precisely tuned to the requirements of gravel racing in terms of damping characteristics and spring curve. In combination with the Grizl geometry, this results in a riding behaviour that should bring noticeable advantages, especially on fast descents and long gravel tracks.
With this setup, Canyon shows that real suspension and race DNA don't have to be mutually exclusive. The Grizl remains a fast, direct gravel bike - but the front suspension gives it control exactly where rigid forks reach their limits.
Canyon Grizl - the most important facts
- Canyon Grizl - the most important facts
- Spring travel: approx. 40 mm front, 20 mm rear (seat post)
- Chassis concept: Dedicated gravel suspension fork
- Tyre clearance: up to approx. 50 mm
- Area of application: Gravel racing, sporty toursCharacter: Race-orientated, wide range of use
Equipment/price
- Frame: Canyon Grizl CF Carbon with integrated LOAD storage compartment, 12x142 mm thru-axle and mounting points for mudguards/pannier rack
- Impellers: DT Swiss G1800 Spline, Tubeless Ready
- Drive/gear shift: SRAM Rival XPLR AXS with 10-51T cassette
- Brakes: SRAM Rival AXS hydraulic disc brakes (160 mm)
- Price: 3,499 euros (CF 9 ESC for 5,999 euros)

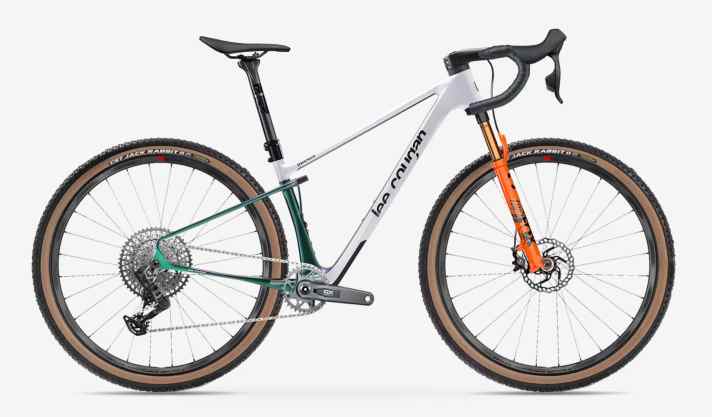

Lee Cougan Innova Super Gravel: Full suspension without compromise
The Innova Super Gravel from Lee Cougan is the most radical representative in the comparison - and at the same time the clearest proof of how far the concept of gravel can now be opened up. At its core, this is a full-suspension bike with a drop bar, whose suspension does not push the boundaries of what is "allowed", but deliberately exceeds them. A suspension fork with 100 millimetres of travel works at the front, while tapered chainstays at the rear allow a controlled flex of up to 30 millimetres. According to Lee Cougan, this flex is supported by integrated oil pistons, which are designed to dampen vibrations in a controlled manner. The frame itself takes on a large part of the suspension work - an approach that saves weight and still enables real suspension behaviour. This system originates conceptually from the XC MTB sector and is being consistently transferred to a gravel-orientated dropbar bike for the first time.
It is not only the technology that is innovative, but also the courage to take a clear position. The Super Gravel is aimed at riders who no longer want to tackle technically demanding trails, rough gravel and long off-road adventures on a classic gravel bike - but on a bike that offers the traction, safety and reserves of a mountain bike without sacrificing the efficiency of the racing handlebar position.
Lee Cougan Innova Super Gravel - the most important facts
- Spring travel: 100 mm at the front, approx. 30 mm at the rear
- Chassis concept: Innova Structural Suspension (ISS)
- Tyre clearance: up to approx. 60 mm (2.4")
- Field of application: technical terrain, adventure, ultra-distances
Character: maximum off-road capability, uncompromising, progressive
Equipment/price
- Frame: Carbon with flexing chainstays
- Drive/gear shift: Sram GX Eagle
- Brakes: Sram Rival
- Price: from approx. 4,800 euros
Conclusion
The three models impressively demonstrate how different innovation in the gravel segment can look. The Cannondale Topstone perfects the integration of micro-suspension, the Canyon Grizl brings targeted suspension into a race-orientated overall package, and the Lee Cougan Innova Super Gravel deliberately goes beyond the classic definition of a gravel bike. Together they make it clear that suspension on gravel bikes is no longer a trend - but a strategic tool for more speed, control and range.
Josh Welz
Editor-in-Chief
