Anyone planning their first long-distance cycle tour will have a inkling of this, whilst those who’ve done it before know it for a fact: luggage affects a bicycle’s handling in several physical ways. The additional mass makes the whole system significantly more sluggish, whilst the altered centre of gravity affects balance and braking behaviour. The moment of inertia about the steering axis determines how quickly the steering responds. These effects can be minimised through careful weight distribution. Ideally, you won’t even notice
Centre of gravity and stability when the wheels are loaded
An unladen bicycle has a defined centre of gravity between the front and rear wheels. Any additional load shifts this point. Luggage carried at the rear shifts the centre of gravity backwards and upwards. The front wheel is relieved of some of the load. The bike reacts more sluggishly when cornering. The increased overall mass also results in a longer braking distance.
Front luggage distributes the load more evenly across both axles. The front wheel carries more weight. This has a more direct effect on the steering. On classic touring bikes with four panniers, the typical distribution is 40 per cent at the front and 60 per cent at the rear. This distribution stabilises the bike’s straight-line stability.
Frame bags keep the weight centred between the two wheels. The centre of gravity remains low. Tools, water and spare parts belong in this area. A 2 kg frame bag has less of an impact on handling than the same load on a high-mounted luggage rack.
Moment of inertia of the fork-and-luggage assembly
The moment of inertia describes a body’s resistance to rotational motion about an axis. In the case of a loaded bicycle, the fork assembly rotates about the steering axis. The moment of inertia increases in proportion to the square of the distance between the mass and the axis of rotation. Doubling the distance therefore quadruples the moment of inertia.
The formula is: I = m × r². Here, I denotes the moment of inertia, m the mass and r the distance from the axis of rotation. A 3 kg luggage rack positioned 15 cm from the steering axis produces a moment of inertia of 0.0675 kg·m². At a distance of 30 cm, the value rises to 0.27 kg·m².
A higher moment of inertia dampens rapid steering movements. The bike responds more smoothly to uneven surfaces. At high speeds, this effect helps to stabilise the bike’s straight-line stability. Wobbling and erratic steering movements are reduced. The centrifugal forces generated by the rotating wheels enhance this effect.
Wheelflop and steering geometry at low speeds
A bicycle’s centre of gravity is at its highest when travelling in a straight line. Any turn of the handlebars lowers the frame and, consequently, the centre of gravity. Gravity thereby generates a torque around the steering axis. This effect is known as ‘wheelflop’. It amplifies any initial turn of the handlebars and means that we always have to countersteer slightly to maintain a constant line through a bend.
Luggage above the steering axle increases this torque. At speeds below 20 km/h, the stabilising gyroscopic forces of the wheels are absent. The steering takes on a life of its own. The rider must keep both hands firmly on the handlebars. Slow evasive manoeuvres require significantly more effort.
Caster counteracts this effect. It describes the horizontal distance between the front wheel’s contact patch and the point where the steering axis intersects the ground. Typical values range between 40 and 60 mm. A greater amount of caster stabilises straight-line stability but makes the steering feel heavier.
Lowrider geometry and centre of gravity of the luggage
Lowrider luggage racks mount the load low on the fork. Standard models position panniers in front of the steering axle. The centre of gravity of the load lies above the pivot point. This exacerbates the wheel flop effect when riding slowly.
Moving the pockets forwards in the direction of travel increases the distance to the steering axis. The moment of inertia increases. At high speeds, this improves ride smoothness. However, below 20 km/h, the steering becomes stiffer. The driver must actively countersteer.
Special lowrider designs position the centre of gravity of the luggage behind the steering axle, so that the bike’s own weight and the weight of the luggage counteract one another. The torques cancel each other out. The bike remains stable across the entire speed range. The situation is similar with bikepacking fork bags, which are attached directly to the fork legs on both sides and have relatively little effect on handling.
Load limits and system weight
Every component has a maximum load capacity which must not be exceeded. Most luggage racks can carry between 9 and 13 kilos per side; some Off-road luggage rack Even more than that. It is important to ensure that the bicycle’s maximum permissible weight is not exceeded.
The maximum permissible weight includes the bicycle, rider, luggage, water and accessories. For example: rider 88 kg, bicycle 16 kg, bags 5 kg, equipment 15 kg, water 5 kg, giving a total weight of 129 kg. A bike with a weight limit of 120 kg would be 9 kg over the limit.
The weakest component sets the limit. Wheels, frames, luggage racks and panniers must all be checked individually. Damaged spokes reduce the load-bearing capacity. Before setting off on a cycling trip, check the rims, spoke tension and tyres.
Tyre pressure and contact patch under load
Additional weight causes the tyre to deform more. The contact area with the ground increases. Rolling resistance increases. Higher tyre pressure partially offsets this effect. The permitted pressure range is marked on the tyre sidewall.
A 28-inch tyre with a width of 28 mm typically requires around 6 bar. With a width of 40 mm, the range drops to between 2 and 3 bar. Greater weight requires higher pressure. Too high a pressure reduces comfort and traction. Too low a pressure increases the risk of punctures.
Higher pressure works well on tarmac. On gravel or dirt tracks, lower pressure improves shock absorption. The contact patch adapts better to uneven surfaces. The bike rides more smoothly. The optimum tyre pressure is always a compromise and must be suited to the bike, the tyres and the route.
Test drive with a full load
A test ride with a full load will highlight any issues before you set off. The route should easily cover 10 km. It should include bends, uphill sections, downhill sections and uneven surfaces. Several controlled braking manoeuvres will test the braking performance.
Rattling bags indicate loose fastenings. Saddle bags that swing about need to be tightened. Straps that are rubbing need to be shortened or tucked away. After 10 km, all screws and hooks should be checked again. Signs of movement are evident from scuff marks.
If the bike has a side stand, it should stand firmly on it when loaded. A flimsy stand will buckle under the weight. When pushing the bike, it must not constantly tip to one side. Holding the handlebar stem with one hand should be sufficient to keep the bike moving in a straight line on level ground.
Sources of error in weight distribution
Carrying too much luggage is more common than packing it unevenly. Large bags tempt you to fill them to the brim. The weight increases without you realising it. A heavy handlebar bag directly affects every steering movement. You should only put the lightest possible items in there.
Heavy items placed on top of the luggage rack or in saddle or top-tube bags can affect the centre of gravity. Tools, water and food should be placed at the bottom. Unsecured bottles in side panniers can slip around. Straps near the spokes are dangerous.
Significant differences in bag sizes make it difficult to load the bike symmetrically. There should be a similar weight on both the left and right sides. A difference of several kilograms will cause the bike to pull to one side. You can check the weight of the bags using a bathroom scales.
Different travel systems and their characteristics
Anyone planning a long-distance cycle tour will have quite a bit of luggage to carry. Depending on the type of bike, different bag systems are suitable. Classic panniers offer plenty of volume and a low centre of gravity. Four side panniers distribute the load evenly. The weight of the panniers and straps is between 4 and 6 kg. This system works well for carrying camping kit on tarmac.

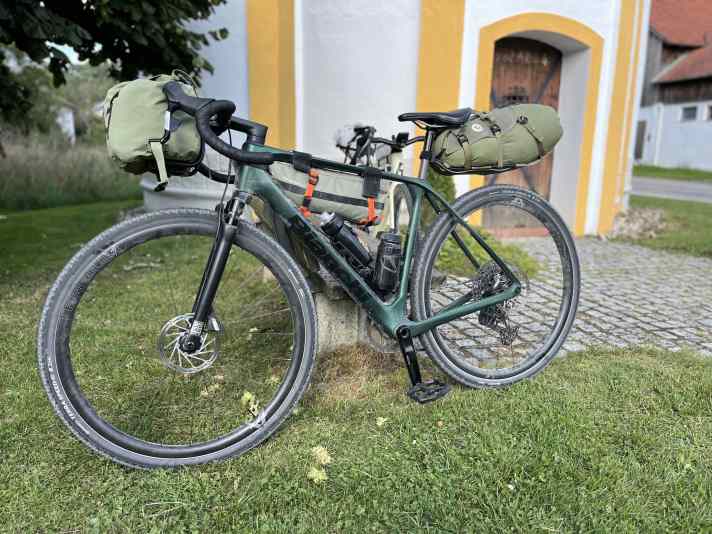

Bikepacking bags Do without a luggage rack. Frame, handlebar and saddle bags keep the weight down and the centre of gravity central. Storage space is limited. Additional bags on the fork legs, the top tube or the down tube can provide extra storage space. This set-up is ideal for light kit and high speeds on narrow trails, tarmac or gravel. Large saddle bags may swing about if not fitted securely.
Bikepacking racks combine the advantages of both systems. They are attached directly to the rear wheel axle and the seat tube or seat post, providing a stable platform for luggage. They are a clever alternative to the traditional saddle bag, particularly for mountain bikes, offering better weight distribution, greater stability and, above all, unrestricted compatibility with telescopic seat posts.
The weight is positioned low and centrally over the rear wheel. Ground clearance is maintained. On technical trails, the fixed mounting prevents the load from swinging about. Modern off-road luggage systems such as the sturdy Restrap Switch Rack can carry up to 30 kg. The Tailfin Journey pannier rack shown in the photo below is even designed for full-suspension bikes and can carry up to 32 kg, thanks to its swivel joints.
These luggage racks can be used in conjunction with waterproof pack sacks or specialised bags. Compared to the saddle bags that swing about on the saddle, they reduce Bikepacking rack The load oscillates noticeably on rough terrain. The rigid connection to the frame prevents any disruptive movements from affecting handling. The low centre of gravity improves control on descents and in hairpin bends.
For really long rides, trailers are also worth considering. They take the strain off the bike frame and can accommodate particularly bulky kit. The turning radius increases. The braking distance is extended due to the additional weight. Trailers are impractical on trails with tight bends.
Centrifugal forces and speed dependence
Rotating wheels generate centrifugal forces. These stabilise the bicycle at higher speeds. The force increases with the speed of rotation, as we know: at 30 km/h, the centrifugal forces are significantly stronger than at 10 km/h. As speed increases, the handling becomes smoother and the bike becomes self-stabilising.
Whilst luggage does not directly affect gyroscopic forces, it does alter the balance between stabilising and destabilising moments. At low speeds, the wheelflop effect predominates. At high speeds, gyroscopic forces and trail predominate.
Conclusion: How luggage affects a bike’s handling
Luggage alters a bicycle’s handling; it becomes less responsive. It is not only the additional weight that matters, but also its position and distance from the steering axis. A load that is high or positioned far forward makes the steering feel sluggish, particularly at low speeds. A low, central and symmetrical weight distribution, on the other hand, improves stability and control.
Heavy items should therefore be placed as close to the centre of the bike as possible. Before setting off on longer rides, you should check your load, total weight, tyre pressure and how everything is secured. A test ride with your luggage will show whether the bike remains controllable and its handling predictable. If you carefully adapt your luggage system to your bike and the route, you’ll be able to ride safely and enjoyably from one stop to the next, even on challenging trails. But you’ll be a bit slower.
