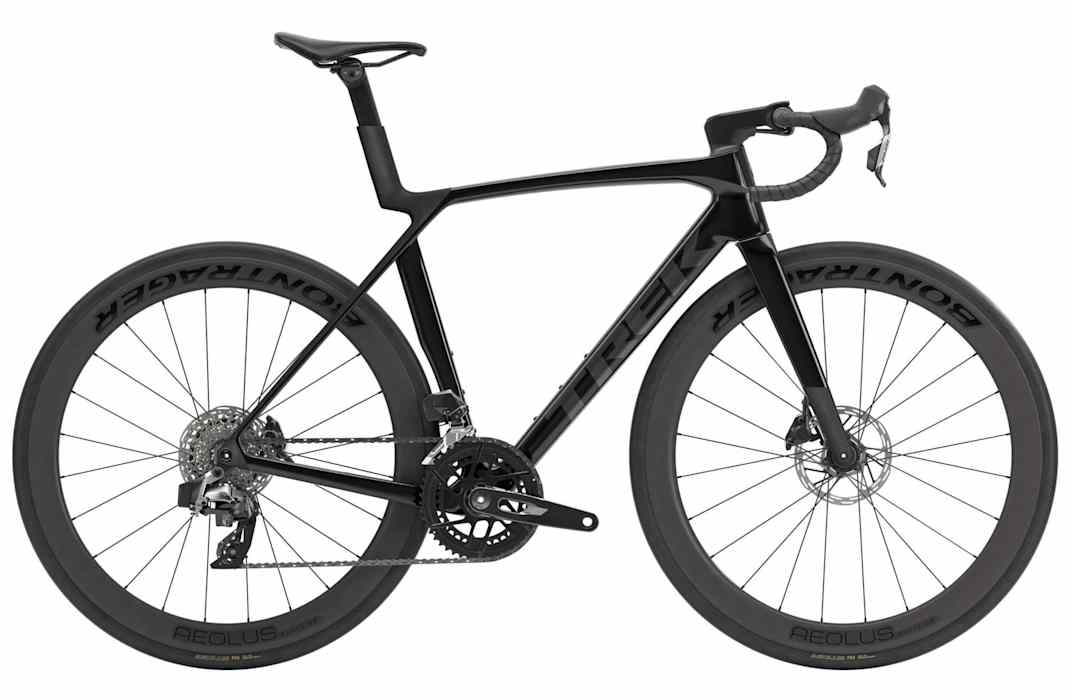

Trek Madone SL 6 AXS Gen 8
4 Images
Model: Madone SL 6 AXS Gen 8
Model year: 2026
Price: 4.799,00 €
Category: Rennrad
Frame material: Carbon
Weight: 8 kg
Permissible total weight: 125 kg
Wheel size: 28"/622mm
Tests & Reviews
Equipment
| Rear brakes | Max. Brake disc thickness |
| Front brakes | Max. Brake disc thickness |
| Frame | 500 Series OCLV Carbon, Full System Foil tube profiles, IsoFlow seat tube, RCS headset system, compatible with electronic or mechanical gear systems, removable aero chain guide, T47 bottom bracket, FlatMount disc brake mount, UDH, 142x12mm thru-axle |
| Frame material | Carbon |
| Drivetrain | SRAM Rival AXS, max. 36T on the largest sprocket |
| Drivetrain type | Derailleur |
| Front derailleur | SRAM RivalAXS, solder-on version |
| Number of gears | 1 |
| Fork | Madone Gen8, full carbon, tapered carbon steerer tube, internal brake cable routing, FlatMount disc brake mount, chamfered 12x100mm thru-axle |
| Crankset | SRAM RivalAXS, 48/35, DUB, 172.5 mm crank arm length SRAM DUB, T47, threaded, internal bearing |
| Sprocket | SRAM XG-1250, 10-36, 12-speed |
| Handlebar | Bontrager Comp, aluminium, 31.8 mm clamp diameter, 80 mm reach, 121 mm drop, 40 cm top tube width, 44 cm bottom tube width |
| Stem | Trek RCS Pro, -7 degrees, 100 mm length |
| Saddle | Bontrager Aeolus Elite, austenitic struts, 145 mm wide |
| Seatpost | Madone, carbon aero seatpost, 0mm offset, short length |
| Wheelset | Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 100x12mm thru-axle Bontrager Aeolus Elite 50, OCLV Carbon, Tubeless Ready, 50mm rim height, SRAM XDR freehub body, 142x12mm thru-axle |
| Wheel size | 28"/622mm |
| Tires | Bontrager R3 Hard-CaseLite, tubeless-ready, aramid bead core, 170 TPI, 700x28mm |
