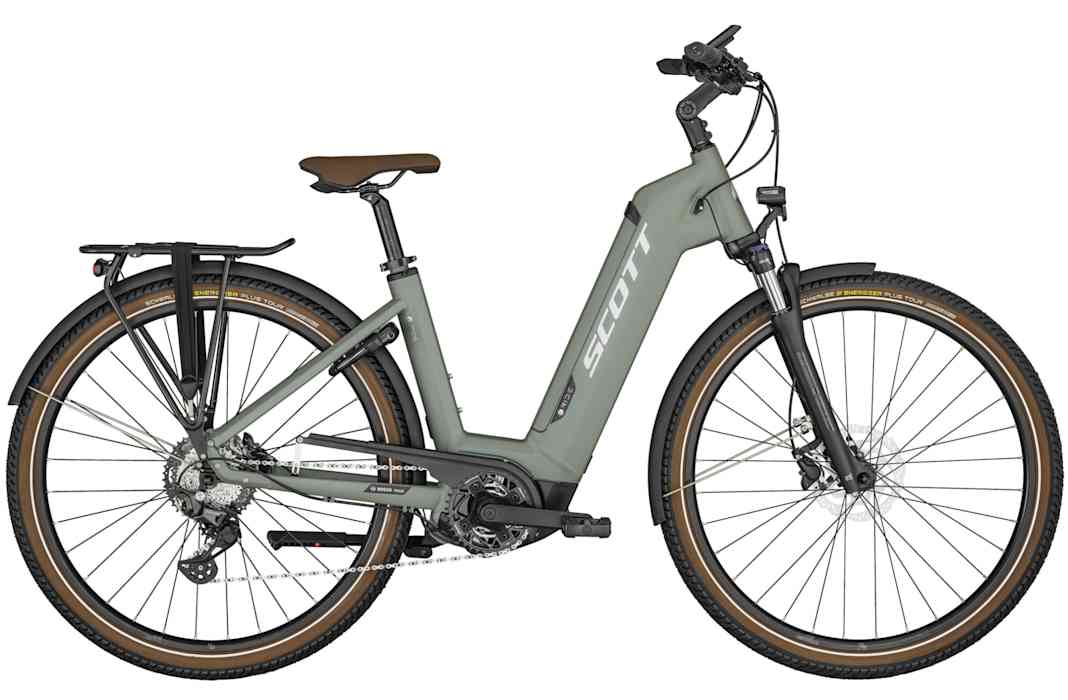

Scott Sub Sport eRIDE 20 Unisex green

The "Sub Sport eRIDE 20 Unisex green" model from Scott, released in 2024, is a versatile e-bike characterised by its high-quality components and robust construction. The frame is made from Sub eRIDE 6061 alloy, giving the bike a sturdy yet lightweight structure. With a maximum load capacity of 128 kg and a kerb weight of 30 kg, this model is well suited to everyday use.

The e-bike is designed for riders between 170 cm and 180 cm tall. The braking system consists of Shimano BR-M200 disc brakes at both the front and rear, with the front brake disc having a diameter of 180 mm and the rear one a diameter of 160 mm. The gear system is a Shimano Deore RD M5130SGS Durable Link with 10 speeds, controlled via the Shimano Deore Trigger SL-M5130 R shifter.

The bike’s fork is a SUNTOUR NVX 30 NLO DS QR 700C TAPERED with 63 mm of travel, which provides extra comfort on uneven terrain. The bike is lit by a Lezyne Hecto 70LUX 210LUMEN front light and a Superbright rear light, which ensure good visibility in the dark.

The pedals are Syncros SP-828, and the crankset is a Miranda 172.5 mm. The cassette is a Shimano CS-LG600-10 with a gear ratio of 11-43T. Power is transmitted via a KMC E11S chain. The handlebars are Syncros UC3.0, with a width of 680 mm, a rise of 12 mm and a backsweep of 15 degrees. The stem is also by Syncros and is adjustable.

The wheels are fitted with Cross X17 Disc rims, each with 32 spokes. The tyres are Schwalbe Energizer Plus Tour 700x55c, fitted to both the front and rear. The hubs are a Shimano HBMT200B at the front and a Shimano FHRM35BZBL5 at the rear.

The saddle is a Syncros Capilano, mounted on a Syncros 3.0 seatpost with a diameter of 31.6 mm and a length of 350 mm. The bike features Curana wide extruded mudguards, an Ursus Mooi Central kickstand and an Abus 5755L ART-approved lock with battery protection.

The luggage rack is a Racktime with a SnapIt 2.0 spring clamp, which makes it easier to carry luggage. The bike is powered by a Bosch Performance CX BES3 motor, which is powered by a PowerTube battery with a capacity of 625 Wh. The Intuvia 100 display shows all the key information, and the charger has an output of 4A.

The bike’s geometry comprises a reach of 402 mm, a stack of 644 mm, a seat tube length of 520 mm and a top tube length of 605 mm. The head tube angle is 70 degrees and the seat tube angle is 73 degrees. The head tube length is 170 mm, the chainstay length is 505 mm, the bottom bracket drop is 70 mm and the fork offset is 42 mm. The top tube height is 499 mm, the fork installation height is 458 mm and the crank length is 173 mm. The wheelbase is 1161 mm and the bottom bracket height is 304 mm.

The “Sub Sport eRIDE 20 Unisex green” is priced at 3,799 EUR and comes with a comprehensive range of features, making it suitable for both everyday city commuting and longer rides.
