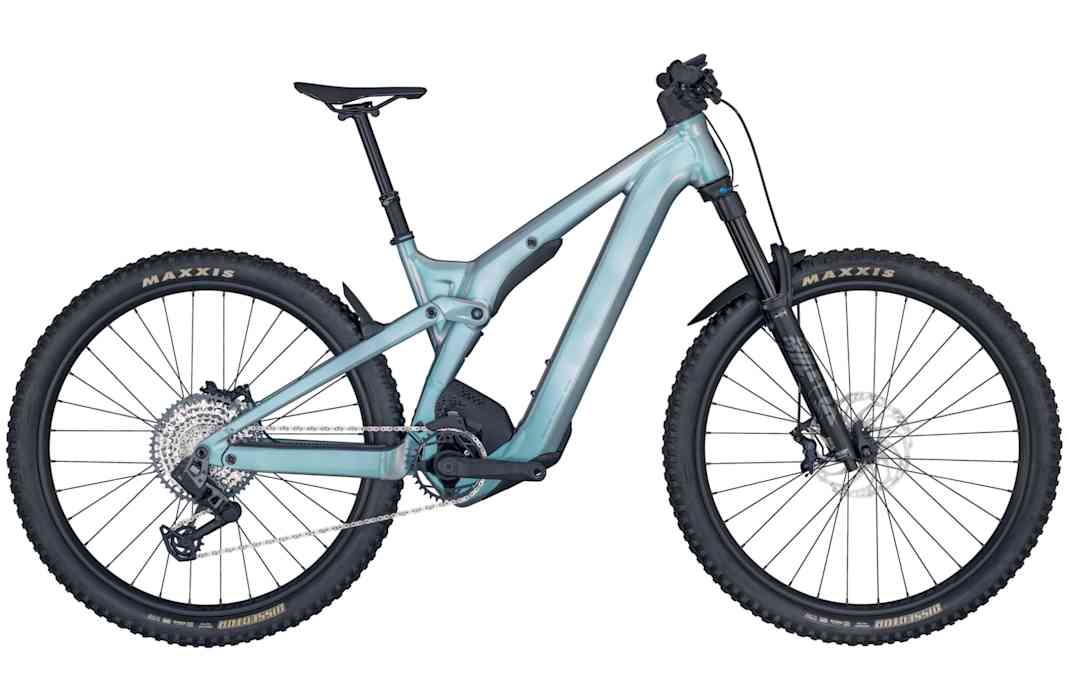

Scott Patron eRIDE 910 TR

The 2024 "Patron eRIDE 910 TR" model from Scott is a high-quality e-bike designed for discerning riders. Priced at 7,999 EUR, this bike offers a wide range of advanced technical features and a well-thought-out specification.

The frame of the Patron eRIDE 910 TR is made from an aluminium alloy and features a Virtual 4 Link Kinematic (VLK) design. This enables suspension with 160 mm of travel at both the front and rear. The frame is designed for 29x2.6 tyres and uses the Boost 148x12 mm UDH system. The integrated, removable Bosch SmartSystem battery has a capacity of 750 Wh and is centrally mounted, ensuring optimum weight distribution. The frame is also fitted with a central kickstand mount and integrated cable routing.

The bike is suitable for riders between 180 cm and 190 cm in height. Optimal braking performance is provided by the Shimano SLX BR-M7120 4-piston brakes with 203 mm SM-RT70 CL brake discs at both the front and rear. The drivetrain consists of the SRAM GX Eagle AXS transmission with 12 speeds and a wireless electronic shifting system, operated via the SRAM GX Eagle AXS Rocker Controller.

The FOX 38 Performance Air fork also offers 160 mm of travel and features several adjustment options, including low-speed and rebound adjustments, as well as a lockout function. The FOX Float EVOL eRIDE rear shock is also adjustable in three modes (Lockout, Trail, Descend) and offers 160 mm of travel.

For added safety and visibility, front and rear lights are integrated, with the rear light built into the Syncros mudguard. The crankset consists of an FSA CK-745 with a length of 165 mm and a 34-tooth chainring. The cassette is a SRAM GX Eagle XS 1275 with a range of 10–52T.

The cockpit comprises a Syncros Hixon 1.5 aluminium handlebar, 780 mm wide, and a Syncros AM1.5 stem, 50 mm long. The headset is an Acros system with integrated cable routing. The Syncros MD30 rims are tubeless-ready and fitted with 29x2.6 Maxxis Dissector tyres, which provide excellent grip and puncture resistance.

The Patron eRIDE 910 TR is fitted with a Bosch Performance CX motor, which provides assistance up to speeds of 25 km/h in the EU. The display comprises the Bosch LED Remote and the Kiox 300, enabling easy control and monitoring of the systems. The battery is charged using a 4A charger.

The bike’s total weight is approximately 35 kg. The frame geometry features a reach of 474 mm, a stack of 651 mm, a seat tube length of 470 mm, a top tube length of 626 mm, a head tube angle of 65 degrees, a seat tube angle of 77 degrees, a head tube length of 135 mm, a chainstay length of 454 mm, a bottom bracket drop of 30 mm, a fork offset of 42 mm, a standover height of 766 mm, a fork installation height of 567 mm and a wheelbase of 1264 mm. The bottom bracket height is 347 mm.

In summary, the Scott Patron eRIDE 910 TR offers an impressive combination of performance, comfort and technology, making it an excellent choice for ambitious e-bike riders.
