Merida eONE-SIXTY 10K EP3 2023 Pedelec > MTB / Cross > Fully

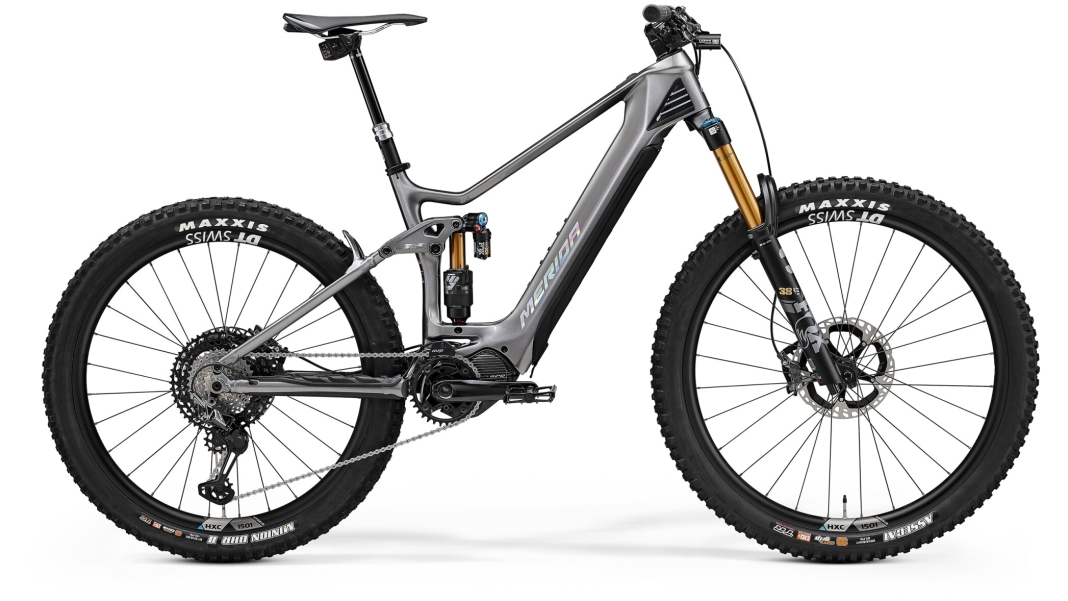

eONE-SIXTY 10K EP3

Das beste E-MTB der Welt? Das hören wir immer wieder. Unser vielfach getestetes und preisgekröntes Flaggschiff liefert dank einer Mischung aus besten Komponenten und bewährtem Design eine überragende Performance.


        In this article, we use so-called affiliate links. With every purchase through these links, we receive a commission from the merchant.
        All relevant referral links are marked with <icon></icon>. <link>Learn more</link>.



        In this article, we use so-called affiliate links. With every purchase through these links, we receive a commission from the merchant.
        All relevant referral links are marked with <icon></icon>.


Most read articles

Most read in category {categoryTitle}

This summary was generated automatically.

Summary

Save filter

The Big Bike Search

Note: This text is a service for our readers and was automatically generated from the data in our bike database.

Verdict on the {brandName} {modelName} test

Verdict on the {modelName} test

Topics on this page

Measurements

Data and facts about the {brandName} {modelName}

Actions

I agree to display external content. This may involve the transmission of personal data to third-party platforms. Learn more in our

At this point, you will find external content that complements the article. You can display and hide it with a click.

Filter

Login required

Save for later?

Rate this article?

 | TOUR

My Premium Guides

My Account

Pro cycling calendar {year}

{title} - Live updates on the race status

{liveticker} {stageName} - {raceName} {year}

To rank the riders, we use results from World Tour races from last year and the current year. The score is updated once a week and is calculated from the sum of wins in one-day races, time trials, stage wins and overall victories.

Saved articles

Search

Just discovered at {portalName}: {articleTitle} {shareUrl}

Many users prefer commenting under a pseudonym. Currently the name from your account is shown. You can change it directly now.

Brakes	Shimano XTR
Brake levers	attached to brake
Frame	eONE-SIXTY CFA II
Drivetrain	Shimano XTR Shadow+
Shift levers	Shimano XTR M9100
Number of gears	12
Fork	FOX 38 Factory eMTB+
Rear shock	FOX Factory Float X2
Fork travel (mm)	160
Rear shock travel (mm)	150
Bottom bracket	included
Crankset	Shimano FCEM900 34t
Sprocket	Shimano M9100
Drive	KMC e12T EPT
Headset	MERIDA-8152
Handlebar	MERIDA EXPERT eTR
Grips	MERIDA EXPERT EC
Stem	MERIDA EXPERT eTRII
Saddle	MERIDA EXPERT CC
Seatpost	SP REVERB AXS
Wheelset	DT Swiss Spline HXC1501 spline 30 boost
Tires	Maxxis Assegai/Maxxis DHR II
Pedals	VP VPE-527
Front light	LEZYNE E-BIKE POWER STVZO E115, reverse MERIDA Custom Mount
Rear light	LEZYNE LED FEMTO USB REAR STVZO
Mudguards	C093-02F + C093-02R
Motor manufacturer / model	Shimano EP8
Display	Shimano SC-EM800
Battery	Shimano E8036 630Wh / Shimano E8035 504Wh (XS only)
