Brakes	Tektro Orion 4P M745, 4-piston, 203mm
Brake levers	Tektro Orion 4P M745, 2-finger
Frame	AluxX SL main frame, FlexPoint rear triangle, integrated speed sensor, EnergyPak Plus compatible, 125 mm travel, 12 x 148 mm, SRAM UDH derailleur hanger
Drivetrain	Shimano Deore LinkGlide M5130, 10-speed
Shift levers	Shimano Deore LinkGlide M5130
Front derailleur	MRP 1X HD2 chain guide
Fork	RockShox 35 Silver, 140mm travel, Boost 15x110mm
Rear shock	SR Suntour Raidon R, 190x45mm, custom tuned
Crankset	FSA Comet, FSA MegaTooth 36T chainring
Sprocket	Shimano LinkGlide CS-LG400-10, 11-43T
Drive	Shimano LinkGlide CN-LG500
Handlebar	GIANT Connect TR Riser 31.8, 20mm rise
Grips	Liv Tactal Pro Single Lock-On Grips
Stem	GIANT Contact
Saddle	Liv Sylvia E+
Seatpost	GIANT Contact Switch Vario post 30.9mm (XS:100 mm, S:125 mm, M:150 mm, L:170 mm)
Rims	GIANT AM 29" (XS: 27.5"), tubeless ready, 30mm inner width
Tires	Maxxis Minion DHF 29 (XS: 27.5") x 2.5" foldable, Tubeless, EXO / Maxxis Dissector 29 (XS:27.5") x 2.40" WT foldable, Tubeless, EXO Supplied with inner tube
Spokes	Stainless steel
Pedals	Flat pedal
Kickstand	compatible with KSA 40 side stand
Rack	compatible with GIANT Rack-It Metro [Lite]
Motor manufacturer / model	GIANT SyncDrive Sport2, 75Nm, powered by Yamaha
Battery	GIANT EnergyPak Smart Integrated 625, EP Plus RangeExtender compatible
Battery capacity (Wh)	625
Charger	GIANT EnergyPak SmartCharger Compact, 4A

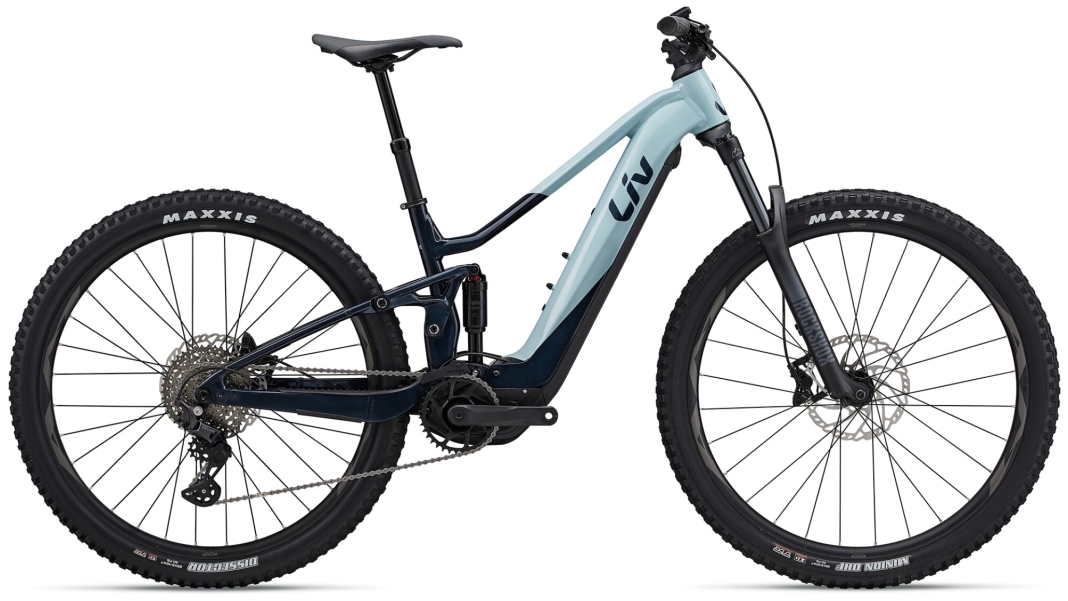

Liv Embolden E+ 1
