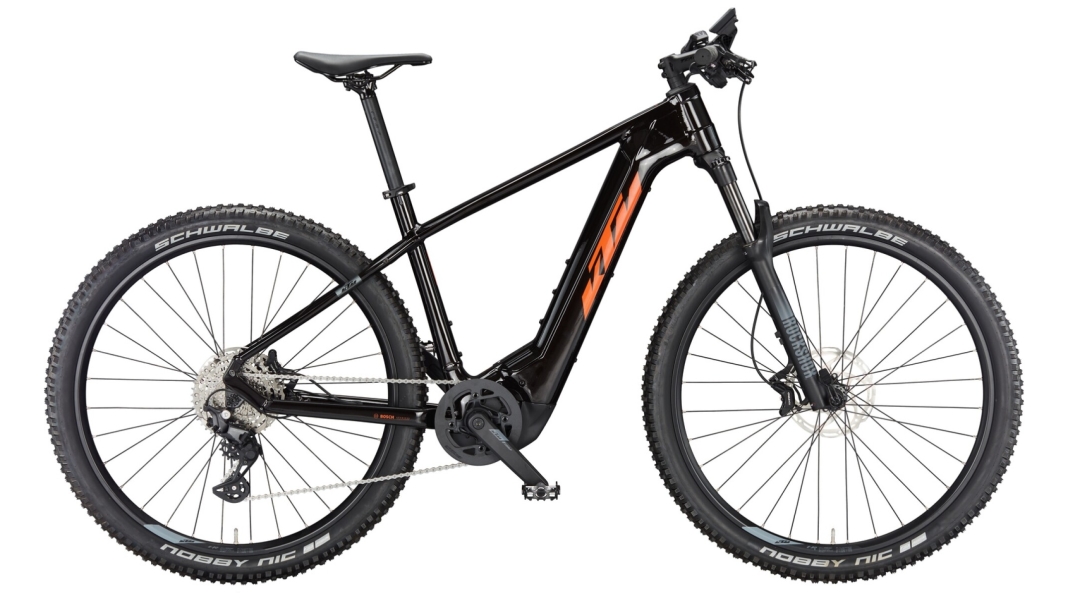

KTM MACINA TEAM 792

The 2023 KTM MACINA TEAM 792 is a high-quality e-mountain bike designed for discerning riders. Priced at 4399 EUR, it offers a wide range of advanced technical features and a robust build. The frame is made from Macina MTB 29" Alloy 6061 and incorporates a 4th-generation Bosch PowerTUBE 750Wh battery, ensuring a long range and reliable performance. The maximum load capacity is 125 kg, whilst the bike itself weighs 24 kg.

The Tektro HD-M535 4-piston brakes ensure powerful and reliable braking performance. The Shimano Deore M5130-10 LG shadow+ derailleur and the Shimano Deore M5130-10 LG display shifter enable precise gear changes. The RockShox Recon Silver RL 29" fork with 120 mm of travel provides excellent damping on rough terrain.

The spec also includes VP-195E aluminium MTB pedals, a KTM E-COMP ISIS crankset measuring 170 mm in length, and a Shimano LG400-10 cassette with a gear ratio of 11–43. The drivetrain is powered by the Shimano LG500. The handlebars are KTM COMP II flat 2X, 720 mm wide, complemented by KTM Comp Lock grips and a KTM Team MTB stem with a 7° angle.

The headset is an Acros AICR internal model with a size of 1.1/8"-1.5" and angle limitation. The rims are KTM Line – Shimano MT410B CL at the front and MT400B CL at the rear, combined with Ambrosio E30 Trail rims and DT Champion and Alpine II spokes respectively. The tyres, Schwalbe Nobby Nic Perf. Folding in size 62-622, offer excellent grip and traction.

The saddle is a KTM Line Sport model, mounted on a KTM COMP II seatpost measuring 30.9/400 mm and featuring a KTM Line JD-SC99 saddle clamp with a diameter of 34.9 mm. The motor is a Bosch PERFORMANCE CX Gen.4 SMART SYSTEM, providing assistance up to 25 km/h and a torque of 85 Nm. The SMART SYSTEM also includes a Bosch LED remote and a Bosch KIOX 300 TFT display, both of which offer intuitive operation and comprehensive information. The battery has a capacity of 750 Wh and is charged using a Bosch STANDARD 4A charger.

Overall, the KTM MACINA TEAM 792 offers an outstanding combination of performance, comfort and technology, making it the ideal companion for challenging mountain bike tours.
