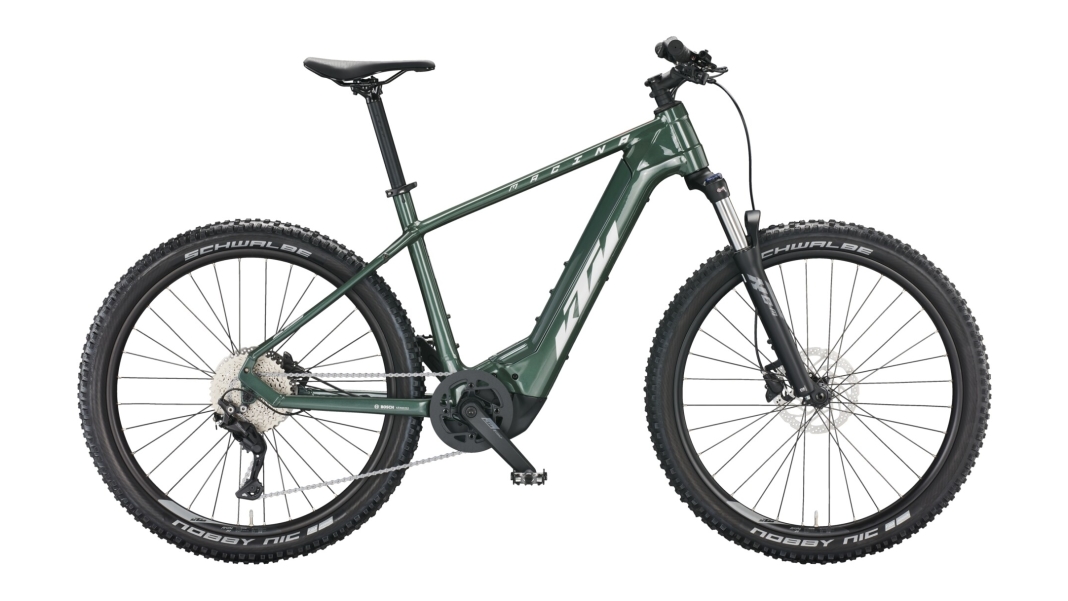

KTM MACINA TEAM 773

The "MACINA TEAM 773" model from KTM, released in 2022, is a high-quality e-mountain bike characterised by its robust construction and high-performance specifications. The price for this model is 3699 EUR.

The bike’s frame is made from Macina MTB 27.5” Alloy 6061 and is fitted with a PT750Wh Bosch Gen.4 / M-2716 system, ensuring high stability and durability. The maximum permissible weight is 144 kg, whilst the bike’s kerb weight is 24 kg.

The Shimano MT200 / MT200 2-piston system has been chosen for the brakes, complemented by a Shimano RT30 CL 180 / EM300 CL 180 magnet front brake disc. Gear changes are handled by a Shimano Deore M4120-10 SGS Shadow groupset, controlled via the Shimano Deore M4100-10 Display shifter. The fork is a Suntour XCM 34 Coil 27.5" NLO with 100 mm of travel and a 15x110 taper.

The bike is fitted with VP-195E alloy MTB pedals and features a KTM COMP ISIS 170mm Q16 crankset as well as a Shimano Deore M4100-10 / 11-42 cassette. Power is transmitted via a KMC e10 EPT e-bike chain.

The handlebars are KTM Comp Rizer 15 with a width of 700 mm, combined with KTM Comp Lock grips and a KTM Comp stem with a 7° angle. The headset is an Acros AICR internal 1.1/8>1.5" angle limit.

The tyres are Schwalbe Nobby Nic Perf. Folding 65-584 at both the front and rear, fitted to a wheelset comprising (front):KTM Line – Shimano MT410B CL 32H 110-15TA / Ryde Rival30 32H 584x30C / DT Champion 2.0 black and rear:KTM Line – Shimano MT400B CL 32H 148-12TA / Ryde Rival30 32H 584x30C / DT Alpine II 2.34 black.

The saddle is a KTM Line Sport, fitted to a KTM Comp 30.9/350 seatpost. The drive system is powered by a Bosch PERFORMANCE CX Gen.4 SMART SYSTEM motor (25 km/h / 85 Nm), which is powered by a Bosch PowerTUBE 750 Wh SMART SYSTEM horizontal battery. The charger is a Bosch STANDARD Charger 4A smart system.

Overall, the KTM MACINA TEAM 773 offers a well-thought-out combination of high-quality components and state-of-the-art technology, ensuring an excellent riding experience.
