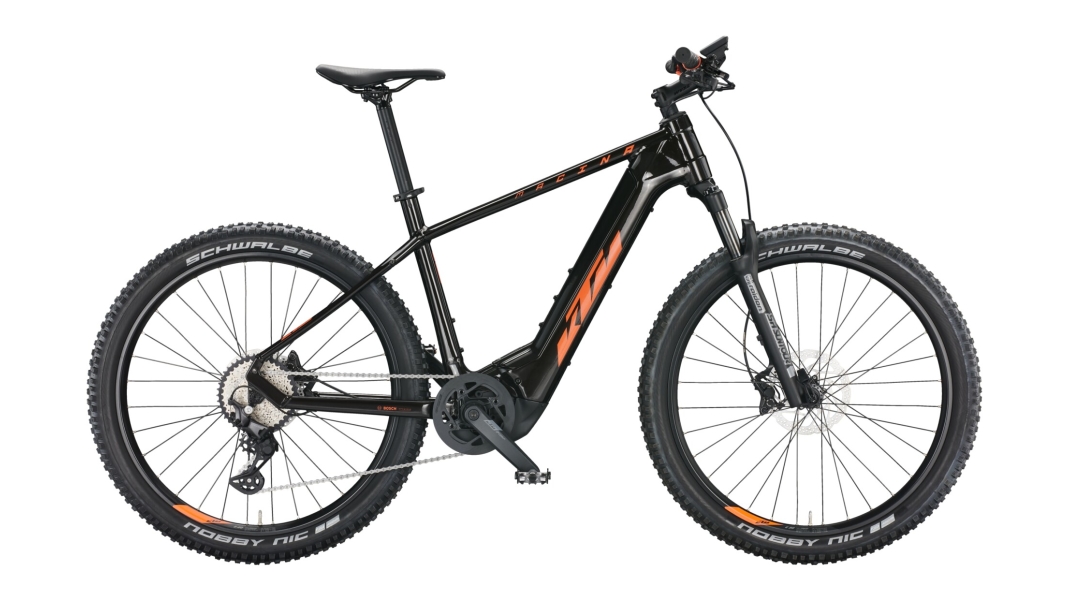

KTM MACINA TEAM 772

The "MACINA TEAM 772" model from KTM, released in 2022, is a high-quality e-mountain bike designed for discerning riders. Priced at 4099 EUR, this bike offers a wide range of technical features and specifications that ensure both performance and comfort.

The frame of the MACINA TEAM 772 is made from Macina MTB 27.5" Alloy 6061, ensuring robustness and durability. The frame incorporates a Bosch Gen.4 motor and a PowerTUBE 750Wh battery, providing a range sufficient even for longer rides. The maximum permissible weight is 143 kg, whilst the bike’s kerb weight is 24 kg.

Braking performance is provided by Shimano MT401 / MT420 4-piston brakes with a front brake disc (Shimano RT30 CL 180 / EM300 CL 180 magnet), enabling reliable and powerful braking manoeuvres. The gear system is controlled by a Shimano Deore M5130-10 LG Shadow+ with a matching shifter (Shimano Deore M5130-10 LG display), ensuring precise and smooth gear changes.

The Suntour Raidon 34 Air fork, with 100mm of travel and a 15x110 taper, offers excellent damping and control on uneven terrain. The pedals are VP-195E MTB pedals made from a robust aluminium alloy. The crankset is a KTM COMP ISIS with a length of 170mm and a Q-factor of 16.

The cassette is a Shimano LG600-10 with a gear ratio of 11-43, whilst the drivetrain features a Shimano LG500. The handlebars are KTM Comp Rizer 15 with a width of 700 mm, combined with KTM Comp Lock grips and a KTM Team MTB stem with a 7° angle. The headset is an Acros AICR internal with an angle-limiting system.

Schwalbe Nobby Nic Perf. Folding tyres (65-584) have been chosen for both the front and rear, providing excellent grip and stability. The wheelset consists of FR: KTM Line – Shimano MT410B CL 32H 110-15TA / Ambrosio E30 Trail 32H 584x30TC / DT Champion 2.0 black and RR:KTM Line – Shimano MT400B CL 32H 148-12TA / Ambrosio E30 Trail 32H 584x30TC / DT Alpine II 2.34 black.

The saddle is a KTM Line Sport, mounted on a KTM Comp seatpost (30.9/350), which provides additional comfort. The motor is a Bosch PERFORMANCE CX Gen.4 SMART SYSTEM with a top speed of up to 25 km/h and a torque of 85Nm. The battery is a Bosch PowerTUBE 750Wh SMART SYSTEM, integrated horizontally, and the display is a Bosch KIOX 300 TFT SMART SYSTEM display, which clearly shows all the key information. The charger is a Bosch STANDARD Charger 4A SMART SYSTEM.

In summary, the 2022 MACINA TEAM 772 from KTM offers an impressive combination of advanced technology, robust design and high functionality, making it an excellent choice for e-mountain bike enthusiasts.
