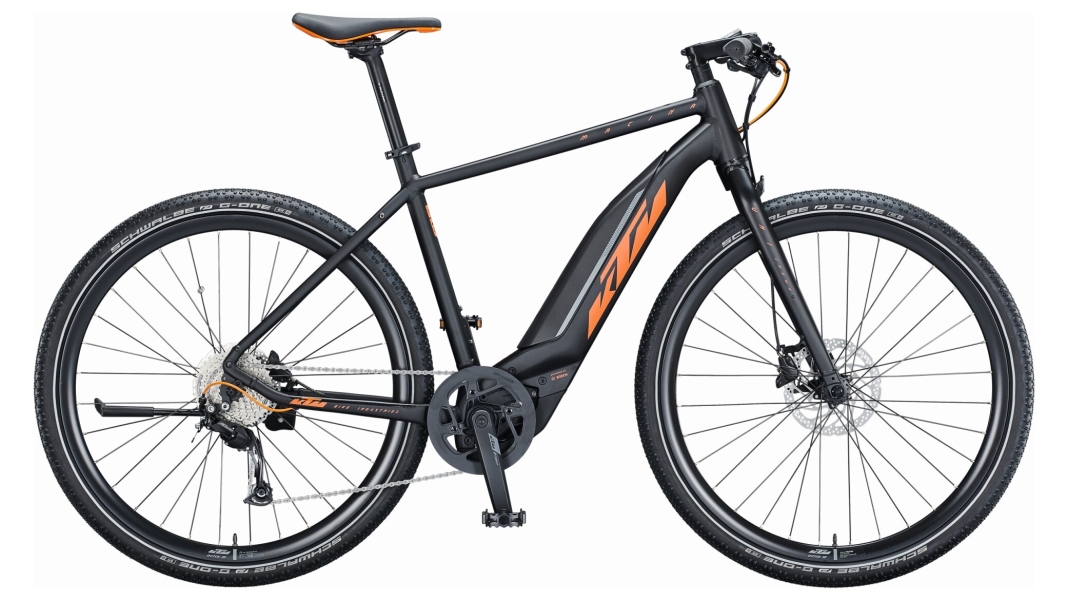

KTM MACINA SPRINT

The "MACINA SPRINT" model from KTM, released in 2021, features a wide range of high-quality components and is available at a price of 2,799 EUR. The frame is made from Macina Trekking Offroad Alloy 6061 MC and is fitted with a Bosch Gen.4 UC-PP500Wh battery, providing a solid and robust foundation for the e-bike.

Braking performance is provided by Shimano MT200 brakes with 2-piston calipers, complemented by Shimano RT30 CL brake discs with a diameter of 180 mm at the front and 160 mm at the rear. Gear changes are handled by the Shimano Alivio M3100-9 SGS Shadow groupset and the matching Shimano Alivio M3100-9 Display shifter, ensuring precise and reliable gear changes.

The fork is an Alloy Rigid Longleg, PM-Disc 9QR, which provides additional stability. The pedals are aluminium MTB C280DU pedals, and the crankset is a KTM COMP ISIS with a length of 170 mm and a Q-factor of 16. The cassette is a Shimano HG201-9 with an 11–36 tooth range, whilst the drivetrain is assisted by the Shimano E6070-9 e-bike system.

The handlebars are KTM Team Flat 2X with a width of 680 mm, and the grips are KTM Comp Ergo Lock, which provide extra comfort. The stem is a KTM Team Road with an 8° angle, and the headset is a KTM Team eTrekking 1.1/8"-1.5" angle limit.

The tyres are Schwalbe G-One Bite Perf. RaceGuard 50-622, fitted to a wheelset comprising, at the front, a KTM Line – Shimano Acera M3050 CL 32H 100-5QR / Ryde Dutch19 32H 622x19C / DT Champion 2.0 black, and at the rear from the KTM Line – Shimano Deore M6000 CL 32H 135-5QR / Ryde Dutch19 32H 622x19C / DT Alpine II 2.34 black.

The saddle is a KTM Line Hybrid, and the seatpost is a KTM Team 30.9/350. An adjustable kickstand for 28" wheels completes the package. The motor is from Bosch; it is the PERFORMANCE CX Gen.4 model, offering assistance up to 25 km/h and a torque of 85 Nm. The battery is a Bosch PowerPACK with a capacity of 500Wh, and the display is a Bosch PURION LCD display.

Overall, the KTM MACINA SPRINT offers a well-thought-out combination of high-quality components and state-of-the-art technology, ensuring a comfortable and safe riding experience.
