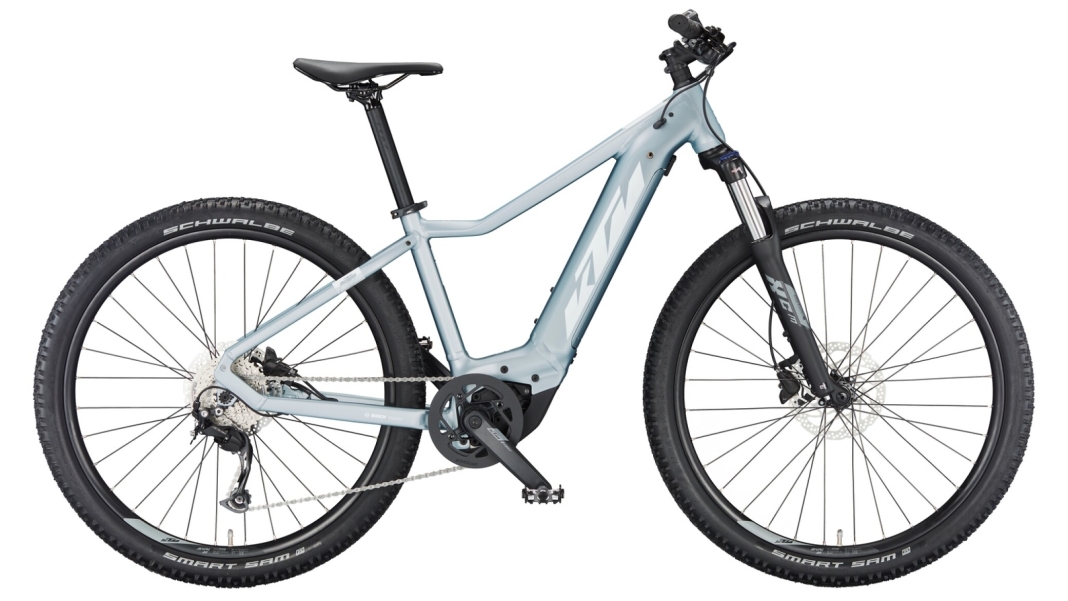

KTM MACINA RACE 572 GLORIOUS

The "MACINA RACE 572 GLORIOUS" model from KTM, released in 2023, is a high-quality e-mountain bike designed for challenging rides across a wide variety of terrain. Priced at 3199 EUR, this model offers a wide range of technical features and specifications that appeal to both experienced mountain bikers and beginners.

The bike’s frame is made from Macina MTB 27.5” Alloy 6061 and features a PT500Wh Bosch Gen.4 / M-1776 unit, which ensures stability and durability. The maximum load capacity is 141 kg, whilst the bike’s own weight is 22 kg, offering a good balance between robustness and manoeuvrability.

Shimano MT200 / MT200 2-piston brakes have been fitted, ensuring reliable and powerful braking. Gear changes are handled by the Shimano Alivio M3100-9 SGS Shadow system, which is renowned for precise and rapid gear changes. This is supported by the Shimano Alivio M3100-9 shifter with display.

The Suntour XCM 32 coil 27.5" NLO 100mm 15x100 taper fork offers 100 mm of travel, effectively absorbing bumps on rough terrain. The pedals are VP-195E MTB pedals made from a durable aluminium alloy.

The crankset is the KTM E-COMP ISIS 170mm Q16, whilst the cassette is a Shimano HG201-9 / 11-36. Power is delivered by the Shimano E6070-9 e-bike system, which ensures efficient power transfer.

The handlebars are KTM COMP II Rizer 15 with a width of 700 mm, complemented by KTM Comp Lock grips and a KTM COMP II 7° stem. The headset is the KTM Team drop/in 1.1/8"-1.5".

The front and rear rims are Ryde Rival30 models, each with 32 spokes: DT Champion 2.0 black at the front and DT Alpine II 2.34 black at the rear. The tyres are Schwalbe Smart Sam K-Guard 57-584, which are known for their good grip and durability.

The saddle is a KTM Line Sport model, mounted on a KTM COMP II seatpost measuring 30.9/350 mm. The saddle is clamped in place by a KTM Line JD-SC99 – 34.9 mm clamp.

The bike is powered by a Bosch PERFORMANCE CX Gen.4 motor with a torque of 85 Nm and a top speed of up to 25 km/h. The battery is a Bosch PowerTUBE with a capacity of 500 Wh, integrated horizontally into the frame. The display is a Bosch PURION LCD display, which clearly shows all the necessary information. The battery is charged using the Bosch COMPACT Charger 2A.

In summary, the “MACINA RACE 572 GLORIOUS” offers an impressive combination of advanced technology, robust design and high performance, making it an excellent choice for anyone looking for a reliable and powerful e-mountain bike.
