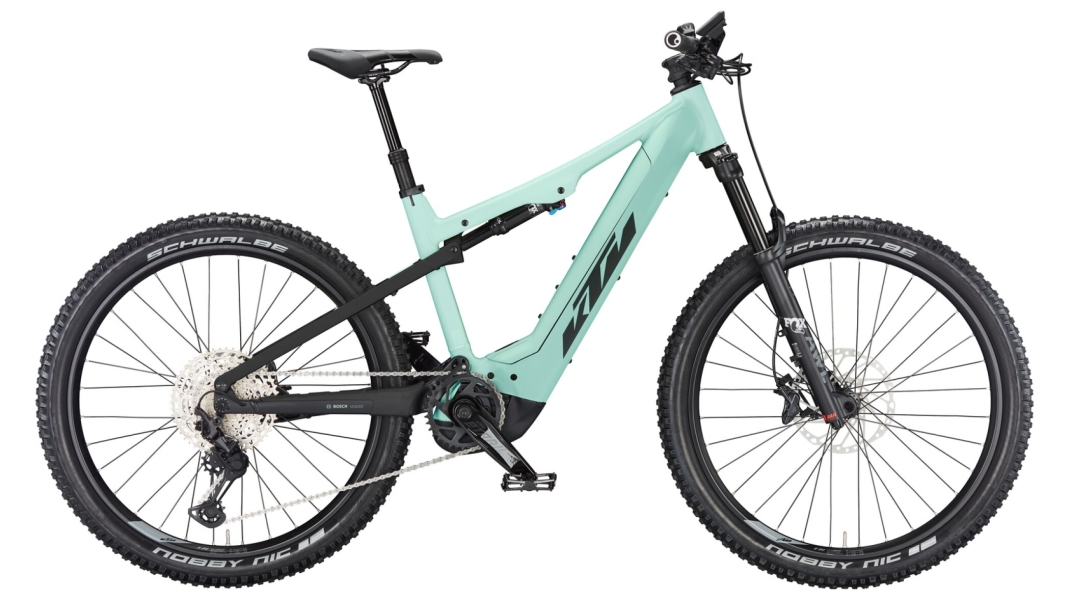

KTM MACINA LYCAN 771 GLORIOUS

The "MACINA LYCAN 771 GLORIOUS" model from KTM, released in 2023, is a high-quality e-mountain bike designed for discerning riders. The price for this model is 5799 EUR.

The bike’s frame is made from Macina Lycan 27.5" Alloy6061 SLL-E with 140 mm of suspension travel and is compatible with the Bosch Gen.4 motor. The maximum permissible weight is 145 kg, whilst the bike itself weighs 26 kg.

Braking is provided by the Shimano Deore M6100 / M6120 4-piston system, which offers reliable and powerful braking performance. Gear changes are handled by the Shimano Deore XT M8100-12 SGS shadow+ system, controlled via the Shimano Deore M6100-12 shifter with display. The fork is a FOX 34 Float AWL 27.5" e-bike fork with 140 mm of travel and a 15x110 thru-axle system. The rear shock is a FOX Float DPS Performance measuring 230x62.5.

The bike is fitted with VPE-527 flat aluminium MTB pedals and features a KTM E-TRAIL ISIS crankset with a length of 170 mm and a Q-factor of 16 mm. The cassette is a Shimano Deore M6100-12 with a 10–51-tooth range. The drivetrain is the Shimano M6100-12 system.

The handlebars are KTM COMP II Trail35 Rizer with a width of 760 mm, complemented by Ergon GA20 grips and a KTM TEAM II Trail35 stem. The headset is an Acros AICR internal 1.1/8"-1.5" angle limit.

The front wheels consist of a combination of KTM Line – Shimano MT410B CL 32H 110-15TA and Ambrosio E30 Trail 32H 584x30TC rims with DT Champion 2.0 black spokes. At the rear, KTM Line – Shimano MT410B CL 32H 148-12TA and Ambrosio E30 Trail 32H 584x30TC rims are also used, but with DT Alpine II 2.34 black spokes. Both tyres are Schwalbe Nobby Nic Perf. Folding, sized 65-584.

The saddle is a Selle San Marco Ground Short Open Fit Narrow, mounted on a KTM COMP II dropper seatpost with internal cable routing. The saddle is clamped in place using a KTM Line JD-SC140A clamp with a diameter of 35.0 mm.

At the heart of the drivetrain is the Bosch PERFORMANCE CX Gen.4 SMART SYSTEM motor, which provides assistance up to a speed of 25 km/h and a torque of 85 Nm. The battery is a Bosch PowerTUBE with a capacity of 750 Wh, which is also part of the SMART SYSTEM. The display consists of a Bosch LED remote SMART SYSTEM and a Bosch KIOX 300 TFT display SMART SYSTEM. The Bosch STANDARD Charger 4A SMART SYSTEM is used to charge the battery.

Overall, the KTM MACINA LYCAN 771 GLORIOUS offers an impressive combination of performance, technology and comfort, ideal for ambitious mountain bikers who tackle both challenging trails and longer rides.
