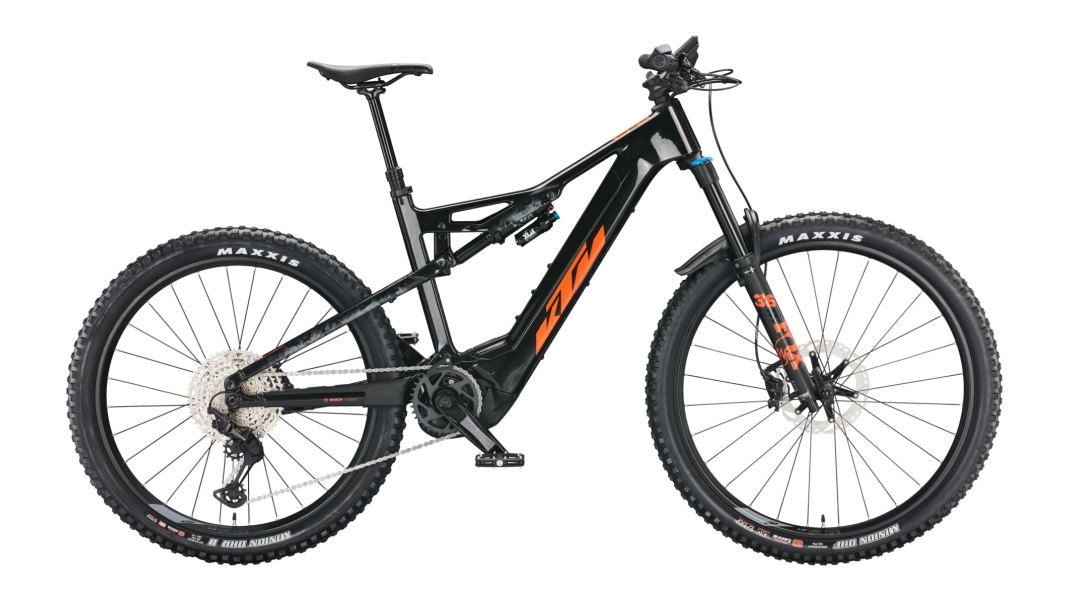

KTM MACINA KAPOHO MASTER

The “MACINA KAPOHO MASTER” model from the “KTM” brand, released in 2022, is a high-quality e-mountain bike designed for discerning riders. Priced at 6599 EUR, it offers a wide range of technical features and specifications that ensure both performance and comfort.

The bike’s frame is made from Macina Kapoho Dimmix Perf. Carbon SLL-LTE with 160mm of suspension travel and is fitted with a UDH (Universal Derailleur Hanger) and a PT750 Bosch Gen.4 motor mount. The bike’s maximum load capacity is 144 kg, whilst the bike itself weighs 25 kg.

Braking performance is provided by Shimano Deore XT M8100 / M8120 4-piston brakes, combined with a Shimano MT800 CL 203 mm front brake disc and an EM810 CL 180 mm rear brake disc featuring Freeza technology and a magnet. The drivetrain consists of a Shimano Deore XT M8100-12 SGS shadow+ with a Shimano Deore XT M8100-12 shifter. The cassette is a Shimano Deore M6100-12 with a range of 10–51 teeth.

Suspension is provided by a FOX 36 Float 29" Performance E-Bike fork with 160 mm of travel and a FOX Float X Performance shock absorber measuring 250x70 mm. The bike is fitted with VP-539 flat MTB pedals made of nylon and features a KTM TRAIL ISIS crankset with a length of 160 mm and a Q-factor of 16.

The handlebars are KTM Team Trail35 rizer25 with a width of 800 mm, complemented by Ergon GA20 grips and a KTM Team Trail35 stem. The headset is an Acros AICR internal with a 1.1/8>1.5" angle-limiting system.

The tyres are Maxxis Minion DHF 3C-MaxxTerra/EXO/TR 63-622 at the front and Maxxis Minion DHR II 3C-MaxxTerra/EXO/TR 70-584 at the rear. The front wheelset consists of a KTM Line - DT Swiss 370 CL 28L 110/15 / Ambrosio E30 Trail 28H 622x30TC / DT Hybrid 2.34 straight-pull black, and the rear wheelset consists of a KTM Line - DT Swiss 370 CL 28L 148/12 12SP LN18 / Ambrosio E35 Trail 28H 584x35TC / DT Hybrid 2.34 straightpull black.

The saddle is a Selle San Marco GND Supercomfort, fitted to a KTM Comp dropper seatpost with internal cable routing. The bike is powered by a Bosch PERFORMANCE CX Gen.4 SMART SYSTEM motor, which provides assistance up to a speed of 25 km/h and delivers a torque of 85 Nm. The battery is a Bosch PowerTUBE with a capacity of 750Wh SMART SYSTEM, fitted horizontally, and the display is a Bosch KIOX 300 TFT SMART SYSTEM display. A Bosch STANDARD Charger 4A SMART SYSTEM is provided for charging.

Overall, the MACINA KAPOHO MASTER is a well-equipped and powerful e-mountain bike designed for challenging trails and long rides.
