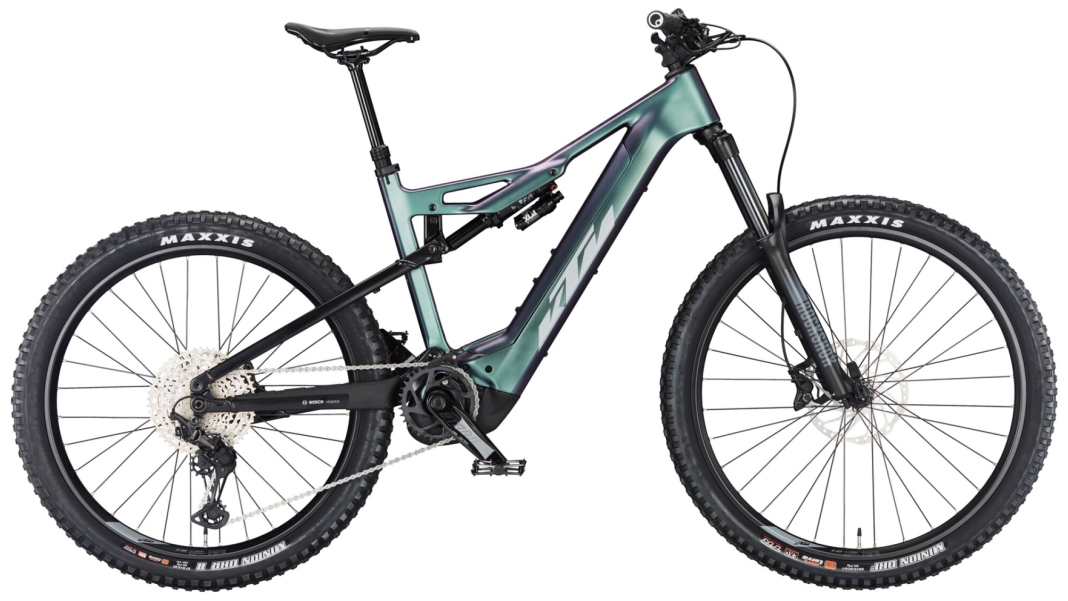

KTM MACINA KAPOHO ELITE

The "MACINA KAPOHO ELITE" model from KTM, released in 2023, features a wide range of high-quality components and technologies that make it an outstanding e-mountain bike. The price for this model is 6399 EUR.

The frame of the MACINA KAPOHO ELITE is made from Macina Kapoho Dimmix Perf. Carbon SLL-LTE, has a travel of 160 mm and is compatible with the UDH system. The frame is specifically designed for the Bosch PT750 Gen.4 system and bears the model number M-2246. The maximum permissible weight is 145 kg, whilst the bike itself weighs in at 25 kg.

Braking performance is provided by Shimano M4100 brakes combined with MT420 4-piston calipers, which ensure reliable and powerful deceleration. The drivetrain consists of a Shimano Deore XT M8100-12 SGS shadow+ with a Shimano Deore M6100-12 shifter, enabling precise and smooth gear changes. The bike’s fork is a RockShox 35 Silver TK 29" with 160 mm of travel and a 15x110 mm tapered axle standard. The rear shock is a FOX Float X Performance 2-Pos measuring 250x70 mm.

The bike is fitted with VPE-527 aluminium MTB pedals. The crankset is a KTM E-TRAIL ISIS with a length of 160 mm and a Q-factor of 16 mm. The rear cassette consists of a Shimano Deore M6100-12 cassette with a range of 10–51 teeth. The drivetrain is provided by the Shimano M6100-12.

The handlebars are KTM Team Trail35 Rizer, 800 mm wide, complemented by Ergon GA20 grips and a KTM TEAM II Trail35 stem. The headset is an Acros AICR internal with an angle range of 1.1/8"–1.5".

The front wheelset comprises a combination of KTM Line, Shimano MT410B CL 32H, Ambrosio E30 Trail 32H 622x30TC and DT Champion 2.0 black. At the rear, a combination of KTM Line, Shimano MT410B CL 32H, Ambrosio E35 Trail 32H 584x35TC and DT Alpine II 2.34 black is used. The tyres are Maxxis Minion DHF 3C-MaxxTerra/EXO/TR in size 63-622 at the front and Maxxis Minion DHR II 3C-MaxxTerra/EXO/TR in size 70-584 at the rear.

The saddle is a Selle San Marco Ground Short Open Fit Narrow, mounted on a KTM COMP II dropper seatpost with internal cable routing. The saddle is clamped using a KTM Line JD-SC140A with a diameter of 35.0 mm.

The bike is powered by the Bosch PERFORMANCE CX Gen.4 SMART SYSTEM motor, which provides assistance up to a speed of 25 km/h and a torque of 85 Nm. The battery has a capacity of 750 Wh and is a Bosch PowerTUBE SMART SYSTEM, mounted horizontally. Control is via the Bosch LED remote SMART SYSTEM display. The charger is a Bosch STANDARD Charger with an output of 4A, which is also part of the SMART SYSTEM.

With these technical specifications and features, the MACINA KAPOHO ELITE offers an impressive all-round package for discerning e-mountain bikers who value performance, reliability and state-of-the-art technology.
