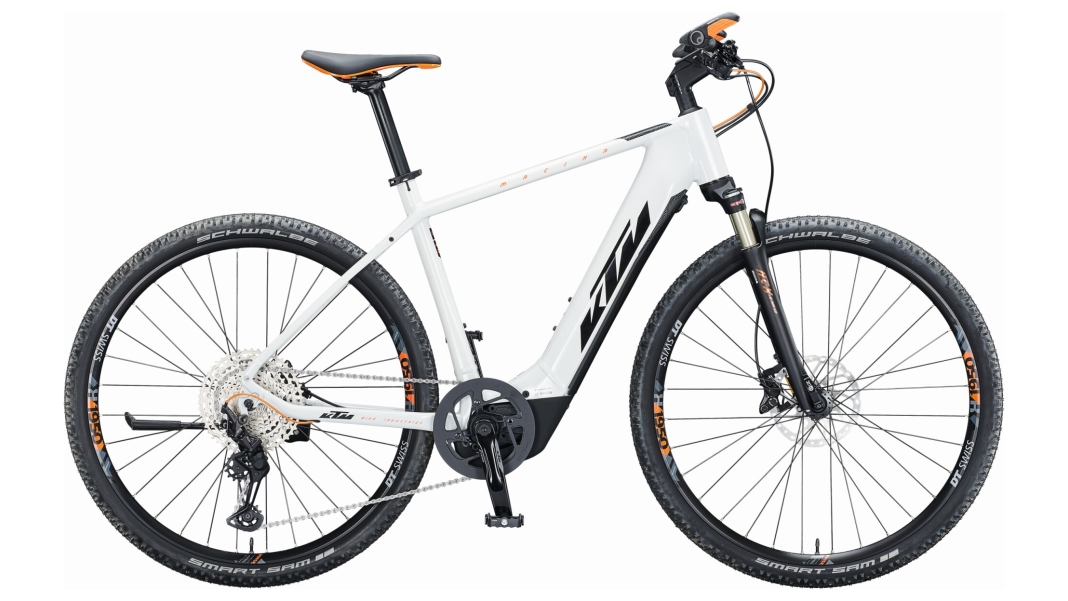

KTM MACINA CROSS 610

The 2021 KTM MACINA CROSS 610 is a high-quality e-bike that stands out for its excellent features and robust construction. The price for this model is 3,799 EUR. The frame is made from Macina Trekking Offroad Alloy 6061 and is fitted with a Bosch Gen.4 motor delivering 85 Nm of torque. The bike’s battery is a Bosch PowerTUBE with a capacity of 625 Wh, which is integrated horizontally into the frame. The display is a Bosch KIOX TFT display with a remote control, enabling simple and intuitive operation.

Braking performance is provided by Shimano MT402 brakes at the front and MT420 4-piston brakes at the rear, combined with Shimano RT64 CL brake discs measuring 180 mm at the front and 160 mm at the rear. The drivetrain is a Shimano Deore XT M8100-12 SGS shadow+, which enables precise and reliable gear changes. The shifter is a Shimano Deore M6100-12 with a display. The fork is a Suntour NCX-E air LO with 63 mm of travel and a 15QLC thru-axle system.

The bike is fitted with lightweight VP-197 aluminium MTB pedals. The crankset is a KTM TEAM ISIS, 170 mm long and Q16. The cassette is a Shimano Deore M6100-12 with a range of 10–51 teeth, offering a wide range of gears. The drivetrain also features Shimano Deore M6100-12 components.

The handlebars are KTM Team low-riser bars with a width of 640 mm; the grips are Ergon GP30 SD with bar ends for added comfort. The stem is a KTM Team Kiox, whilst the headset is a KTM Team eTrekking 1.1/8"-1.5" with angle limitation. The tyres are Schwalbe Smart Sam Perf. in size 47-622, which offer good grip both on the road and off-road.

The front wheelset consists of KTM Line - DT Swiss 350 CL 32H 100-15TA components at the front and KTM Line - DT Swiss 370 CL 32H 135-5QR components at the rear, both with DT Swiss H1950 rims and DT Alpine III spokes in black. The saddle is a KTM Line Hybrid, and the seatpost is a KTM Team measuring 30.9/350 mm. A Hebie 28" adjustable kickstand ensures stability when parking the bike.

Overall, the KTM MACINA CROSS 610 offers a balanced combination of performance, comfort and versatility, making it an excellent choice for discerning cyclists who ride both on the road and off-road.
