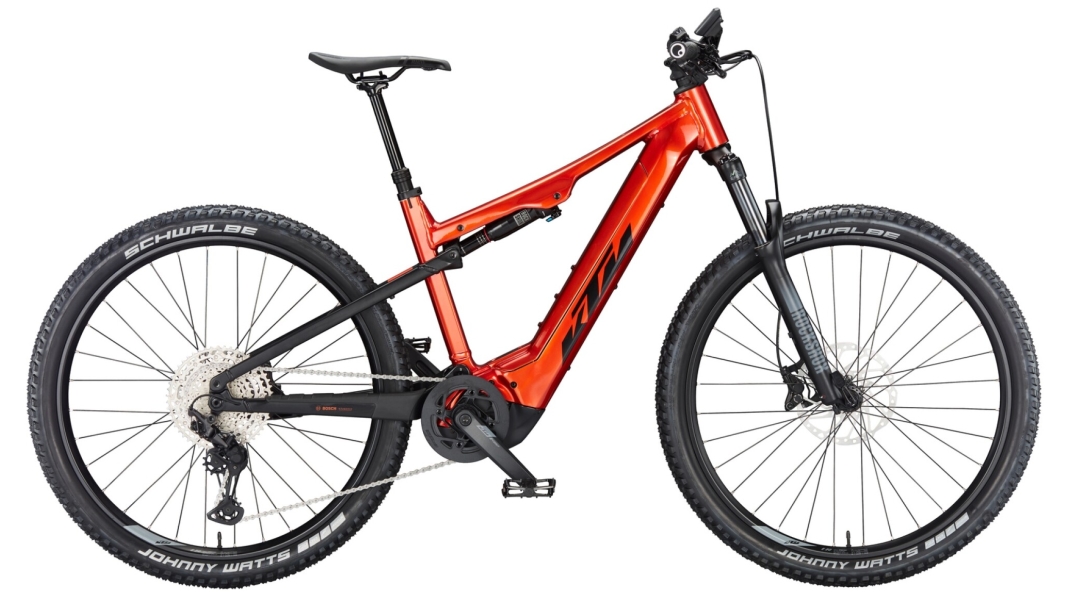

KTM MACINA CHACANA 792

The "MACINA CHACANA 792" model from KTM, released in 2023, is a high-quality e-bike designed for challenging trails and tours. Priced at 5599 EUR, this bike offers a wide range of technical features and a robust build.

The frame of the MACINA CHACANA 792 is constructed from a Macina Chacana 29" Alloy6061 SLL-E 125mm UDH; PT750 Bosch Gen.4 / M-2286 design, which ensures stability and durability. The maximum load capacity is 147 kg, whilst the bike itself weighs 27 kg.

Braking performance is provided by the Shimano M4100 / MT420 4-piston system, which enables reliable and powerful braking manoeuvres. The drivetrain is fitted with a Shimano Deore XT M8100-12 SGS shadow+ system, which ensures precise and rapid gear changes. The shifter is a Shimano Deore M6100-12 model.

The suspension on the MACINA CHACANA 792 consists of a RockShox 35 Silver TK 29" fork with 130mm of travel and a RockShox Deluxe Select+ shock absorber measuring 230x57.5, which ensures excellent shock absorption and riding comfort. The pedals are MTB flat pedals (VPE-527 alloy), offering durability and a secure grip.

The crankset is a KTM E-COMP ISIS 170mm Q16, whilst the cassette is a Shimano Deore M6100-12 / 10-51. The drivetrain is a Shimano M6100-12 system. The handlebars are KTM COMP II Trail35 Rizer15 with a width of 760mm, and the grips are Ergon GA20 models.

The bike features a KTM TEAM II Trail35 stem and an Acros AICR internal 1.1/8"-1.5" angle limit headset. The rims are KTM Line – Shimano MT410B CL 32H at the front and rear, combined with Ambrosio E30 Trail 32H 622x30TC rims and DT Champion and DT Alpine II spokes respectively. The tyres are Schwalbe Johnny Watts Perf. DD RaceGuard Folding 65-622 models, which provide good grip and puncture protection.

The saddle is a Selle San Marco RND Manganese Rails model, and the seatpost is a KTM COMP II internal dropper post, which allows for flexible adjustment of the seat height. The saddle is clamped in place using a KTM Line JD-SC140A – 35.0 mm clamp.

The MACINA CHACANA 792 is powered by a Bosch PERFORMANCE CX Gen.4 SMART SYSTEM motor with a top speed of up to 25 km/h and a torque of 85 Nm. The battery has a capacity of 750 Wh and is a Bosch PowerTUBE 750 Wh SMART SYSTEM battery, fitted horizontally. The display is a Bosch LED remote SMART SYSTEM / Bosch KIOX 300 TFT display SMART SYSTEM, which clearly shows all the key information. The charger is a Bosch STANDARD Charger 4A SMART SYSTEM.

In summary, the 2023 KTM MACINA CHACANA 792 offers an outstanding combination of a powerful drive system, a robust frame and high-quality components, making it suitable for both challenging trails and longer tours.
