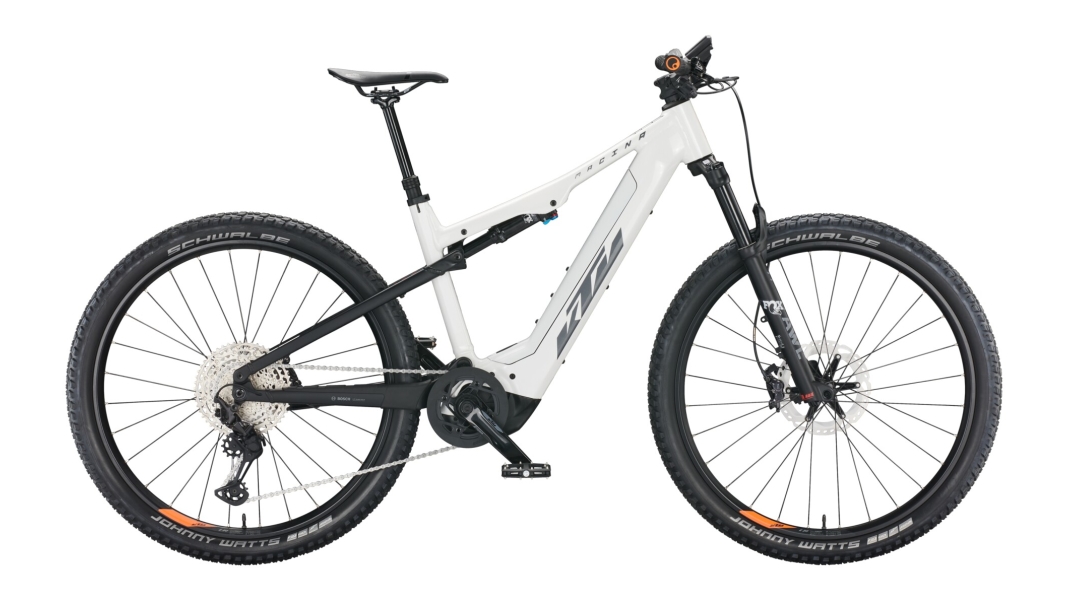

KTM MACINA CHACANA 791

The “MACINA CHACANA 791” model from the “KTM” brand, released in 2022, is a high-quality e-bike that stands out for its well-thought-out features and advanced technology. Priced at 5799 EUR, it offers a wide range of features suitable for both challenging mountain bike tours and everyday use.

The frame of the MACINA CHACANA 791 is constructed from a robust Macina Chacana 29" Alloy6061 SLL-E frame with 125 mm of suspension travel and is designed for the Bosch Gen.4 system. The maximum load capacity is 145 kg, whilst the bike itself weighs in at 26 kg.

Reliable braking performance is provided by the Shimano Deore XT M8100 / M8120 4-piston brakes, complemented by a Shimano MT800 CL 203 mm front brake disc and an EM810 CL 180 mm Freeza Magnet rear brake disc. The drivetrain consists of a Shimano Deore XT M8100-12 SGS shadow+ derailleur and a Shimano Deore XT M8100-12 shifter, which enable precise and fast gear changes.

The bike’s suspension is provided by a FOX 34 Float AWL 29" e-bike fork with 130 mm of travel and a FOX Float DPS Performance shock measuring 230x57.5. The MTB pedals are flat VP-539 nylon pedals, which provide good grip. The crankset consists of a KTM TEAM ISIS 170 mm Q16.

The cassette is a Shimano Deore M6100-12 with a 10–51-tooth range, which, in combination with the Shimano M6100-12 drivetrain, ensures excellent power transfer. The handlebars are KTM Comp Trail35 Rizer15 with a width of 760 mm, fitted with Ergon GA20 grips and a KTM Team Trail35 stem. The headset is an Acros AICR internal 1.1/8>1.5" angle limit.

The tyres are Schwalbe Johnny Watts Perf. DD RaceGuard Folding 65-622, fitted to both the front and rear, mounted on a wheelset comprising: front: KTM Line - DT Swiss 370 CL 28L 110/15 / Ambrosio E30 Trail 28H 622x30TC / DT Hybrid 2.34 straightpull black and rear: KTM Line - DT Swiss 370 CL 28L 148/12 12SP LN18 / Ambrosio E30 Trail 28H 622x30TC / DT Hybrid 2.34 straight-pull black.

The saddle is a Selle San Marco Aspide Short Open Fit Narrow, fitted to a KTM Comp internal dropper seatpost, which allows for easy adjustment of the seat height.

At the heart of the drivetrain is the Bosch PERFORMANCE CX Gen.4 SMART SYSTEM motor, delivering power up to 25 km/h and a torque of 85 Nm. The accompanying battery is a Bosch PowerTUBE with a capacity of 750 Wh, also from the SMART SYSTEM range, and is fitted horizontally. The Bosch KIOX 300 TFT SMART SYSTEM display serves as a clear and user-friendly interface for controlling the electric assistance. The battery is charged using a Bosch STANDARD Charger 4A smart system charger.

Overall, the MACINA CHACANA 791 is a technically sophisticated and versatile e-bike that impresses in terms of both performance and comfort.
