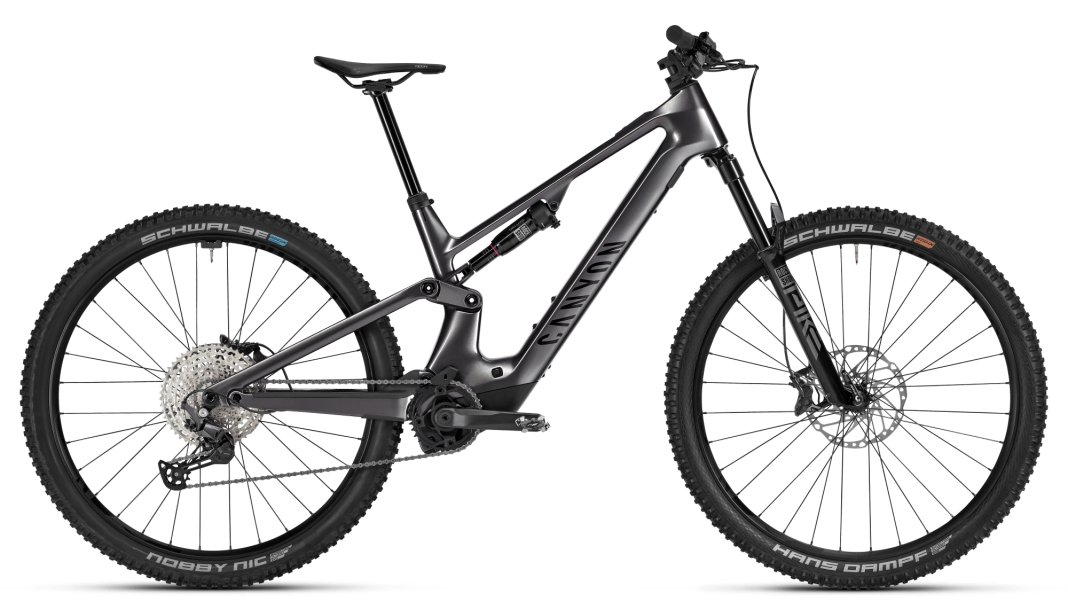

Canyon Neuron:ONfly CF 7
Model: Neuron:ONfly CF 7
Model year: 2026
Price: 3.999,00 €
Category: Fully
Frame material: Carbon
Weight: 20.3 kg
Wheel size: 29"/622mm
Tests & Reviews
Equipment
| Rear brakes | Shimano M6100, 2-piece disc brake configuration (4-piston front, 2-piston rear; exact allocation not explicitly stated) |
| Front brakes | Shimano M6120, 2-piece disc brake configuration (4-piston front, 2-piston rear; exact allocation not explicitly stated) |
| Frame | Canyon Neuron:ONfly CF, lightweight, elegant, playful E-MTB with a powerful, confidence-inspiring geometry. With Bosch SX motor and perfectly integrated 400 Wh battery in the down tube. |
| Frame material | Carbon |
| Drivetrain | Shimano Deore M6100, cage length long, weight 356 g |
| Shift levers | Shimano Deore, 12-speed, weight 136 g |
| Drivetrain type | Derailleur |
| Number of gears | 12 |
| Fork | RockShox Pike Base, axle size 15x110 mm, stanchion diameter 35 mm, suspension travel 140 mm, steerer tube diameter 1 1/8" - 1.5", offset 44 mm |
| Rear shock | RockShox Deluxe Select+, weight 338 g |
| Fork travel (mm) | 130 |
| Crankset | FSA CK-745 170mm |
| Sprocket | Shimano Deore M6100, number of sprockets 12, gear ratio 10-51 |
| Drive type | Chain |
| Handlebar | Canyon:ON HB0056 Riser bar, aluminium, clamp diameter 35.0 mm, rise 20 mm |
| Grips | Canyon Lock-On grips |
| Stem | Canyon:ON ST0031 Stem, Canyon E-MTB stem, length 45 mm, steerer tube diameter 1 1/8", clamp diameter 35.0 mm, material aluminium (AL) |
| Saddle | Fizik Terra Aidon X5, Gender Unisex, Weight 251 g |
| Seatpost | Canyon SP0070-01, air cartridge. Bowden cable operation, stroke depends on frame size (see table of components and geometry), seatpost clamping diameter 34.9 mm, material aluminium (AL), weight 654 g |
| Seat clamp | Canyon GP0446-01 |
| Wheel size | 29"/622mm |
| Rims | Iridium 30 (front wheel), inner rim width 30 mm, rim material aluminium, Iridium 30 (rear wheel), inner rim width 30 mm, rim material aluminium |
| Tires | Schwalbe Hans Dampf, width 60 mm, weight 1,048 g, Schwalbe Nobby Nic, width 62 mm |
| Front hub | Shimano MT400 |
| Rear hub | Shimano MT510 |
| Pedals | VP-536 flat pedals |
| Motor manufacturer / model | Bosch Performance Line SX |
| Motor type | up to 25 km/h |
| Battery | Bosch CompactTube removable battery |
| Battery capacity (Wh) | 400 |
| Battery mount | Intube |
| Charger | Bosch 4A |
