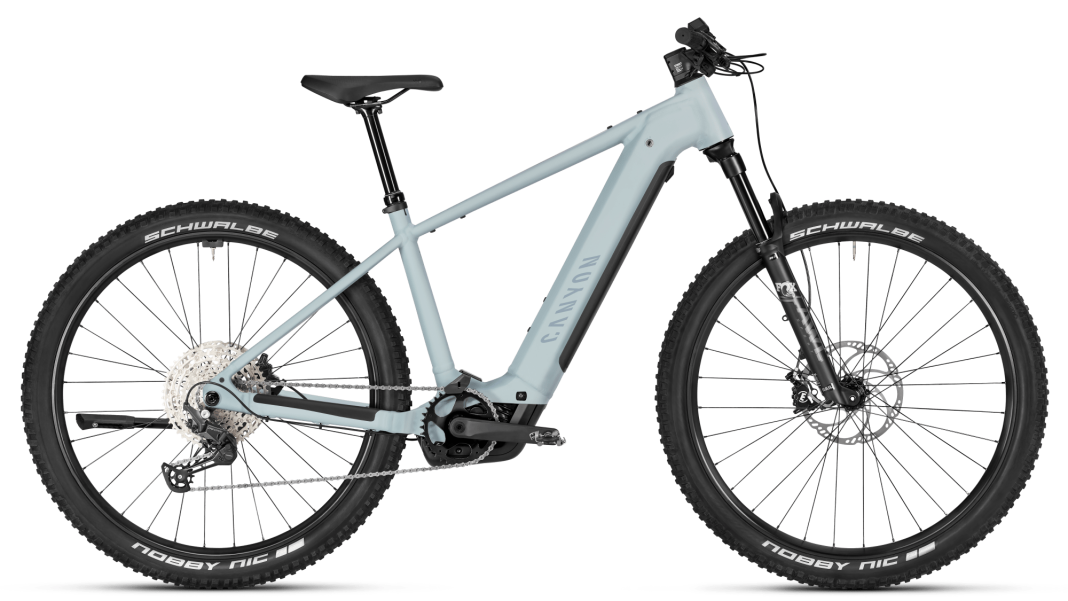

Canyon Grand Canyon:ON AL 8
Model: Grand Canyon:ON AL 8
Model year: 2026
Price: 3.499,00 €
Category: Hardtail
Frame material: Aluminium
Weight: 24.38 kg
Wheel size: 29"/622mm
Tests & Reviews
Equipment
| Rear brakes | Magura MT Thirty rear brake, number of brake pistons2 |
| Front brakes | Magura MT Thirty front brake, number of brake pistons4 |
| Frame | Canyon Grand Canyon:ON, The next generation of the Grand CanyonON frame, tyre clearance65 mm |
| Frame material | Aluminium |
| Drivetrain | Shimano Deore M6100, cage length, weight356 g |
| Shift levers | Shimano Deore M6100, weight133 g |
| Drivetrain type | Derailleur |
| Number of gears | 12 |
| Fork | FOX 34 AWL, axle dimension15x110 mm, stanchion diameter34 mm, suspension travel120 mm, steerer tube diameter1 1/8" - 1.5", offset51 mm |
| Fork travel (mm) | 120 |
| Crankset | FSA CK 220, number of chainrings1 |
| Sprocket | Shimano Deore M6100, number of sprockets12, gear ratio10-51 |
| Drive type | Chain |
| Handlebar | Canyon HB0059-01, clamp diameter31.8 mm, Rise5 mm |
| Grips | Canyon Lock-On grips |
| Stem | Canyon stem ST0037, steerer tube diameter1 1/8", clamp diameter31.8 mm |
| Saddle | Selle Royal Vivo Ergo, weight352 g |
| Seatpost | Canyon SP0081, clamp diameter seatpost34.9 mm, materialaluminium (AL), weight638 g |
| Seat clamp | Canyon GP0446-01 |
| Wheel size | 29"/622mm |
| Rims | Alex Rims MD30 rim, rim materialaluminium, inner rim width30 mm |
| Tires | Schwalbe Nobby Nic Performance, 2.6, width2.6", weight890 g |
| Front hub | Shimano TC500 front hub |
| Rear hub | Shimano TC500 rear hub |
| Pedals | VP-536 flat pedals |
| Kickstand | Atran Edge HV |
| Motor manufacturer / model | Bosch Performance Line CX GEN.5 |
| Motor type | up to 25 km/h |
| Display | Bosch Purion 200 Display BRC3800 |
| Battery | Bosch PowerTube 600Wh, Bosch PowerTube 800Wh |
| Battery capacity (Wh) | 800 |
| Battery mount | Intube |
| Charger | Bosch 2A |
