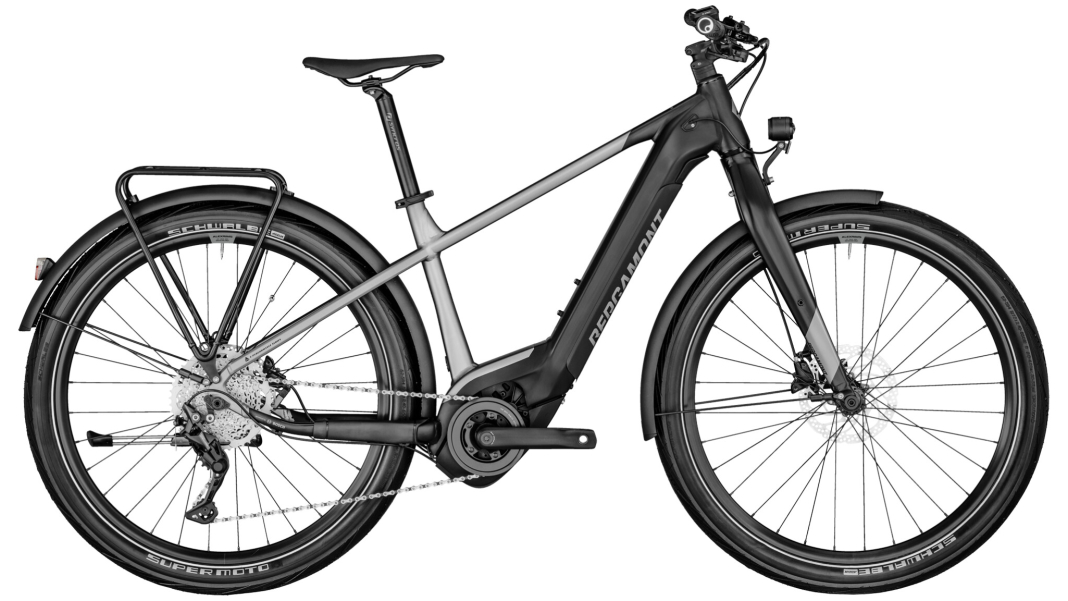

Bergamont E-Revox Rigid EQ

The "E-Revox Rigid EQ" model from Bergamont, released in 2022, is a high-quality e-bike priced at 3,399 EUR. The frame is made from ultra-lightweight AL-6061 tubing and is designed for 27.5" wheels. The integrated PowerTube battery ensures a sleek look and optimal weight distribution. The maximum permissible weight is 135 kg, whilst the bike itself weighs 23 kg.

For the brakes, Bergamont has opted for Shimano BR-MT200 hydraulic disc brakes, complemented by Shimano BL-MT201 brake levers and a 180 mm Shimano SM-RT30 front brake disc. The derailleur is a Shimano Deore RD-M4120 Shadow, controlled via the Shimano Deore SL-M4100 shifter with a 1x10-speed system and Rapidfire Plus shifters. The fork is a rigid BGM 27.5" MTB fork.

For lighting, the E-Revox Rigid EQ is fitted with a Litemove SE front light (70 lux) and a Herrmans H-Trace Mini rear light, both featuring LED technology. The bottom bracket and motor are both from Bosch; the third-generation Bosch Performance Line Cruise motor delivers 250 W and provides assistance up to a speed of 25 km/h. The battery is a Bosch PowerTube with a capacity of 500 Wh and is charged using a Bosch Compact Charger (2A). The display is a Bosch Purion.

The crankset consists of an FSA CK-200 with 34 teeth and a length of 170 mm. The cassette is a Shimano Deore CS-M4100 with a range of 11–46 teeth, whilst the drivetrain uses a KMC e10S chain. The handlebars are Syncros Hixon 2.0 Mini Riserbars with a rise of 15 mm and a width of 740 mm, complemented by Ergon GA20 grips and a Syncros FL2.0 stem with an angle of +/-6°.

The headset is a Prestine PT F13X A-Headset, semi-integrated and tapered. The rims are Alex EXR30 disc rims with eyelets and a width of 30 mm; the tyres are Schwalbe Super Moto Performance in size 27.5x2.40". The hubs are a Shimano HB-MT400-B at the front and a Shimano FH-MT400-B at the rear, both featuring a CentreLock disc system and thru-axles (15x110 mm at the front, 12x148 mm at the rear). The spokes are Sapim Leader.

The saddle is a Syncros Tofino 2.5, mounted on a Syncros M3.0 seatpost. The bike is also fitted with Curana Apollo mudguards, an Atran kickstand and a Racktime/BGM Allroad luggage rack with the Snapit 2.0 system. Pedals are not included.

In summary, the Bergamont E-Revox Rigid EQ offers a well-thought-out combination of high-quality components and robust design, ideal for everyday use as well as longer tours.
