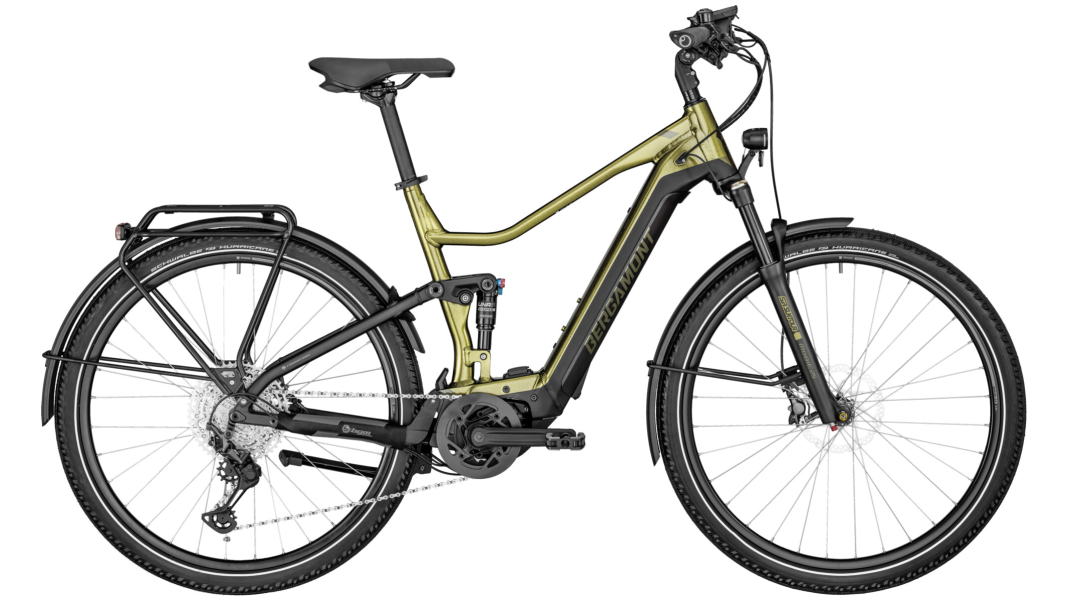

Bergamont E-Horizon FS Elite

The "E-Horizon FS Elite" model from Bergamont, released in 2022, is a high-quality e-bike available for €5,099. It features a robust frame made from ultra-light AL-6061 tubing with a PowerTube battery and offers 80 mm of rear suspension travel. The maximum permissible weight is 140 kg, whilst the bike itself weighs 26 kg.

The braking system consists of a Shimano Deore XT BR-M8100 hydraulic disc brake, operated by Shimano Deore XT BL-T8100 brake levers. The front brake disc is a Shimano SM-RT54 with a diameter of 180 mm. The gear system consists of a Shimano Deore XT RD-M8100 Shadow Plus with a Shimano Deore SL-M6100 shifter, which enables 1x12-speed shifting.

Front suspension is provided by a Suntour Mobie 25 Air fork with 100 mm of travel and a 15x100 mm axle. The rear shock is a Suntour UNAir R8 with 80 mm of travel and a lockout function. For lighting, a B&M IQ-XS front light with an 80 lux LED and a B&M Toplight 2 C rear light with LED are integrated. The pedals are made of aluminium and designed for trekking.

The bottom bracket is a Bosch Isis model. The crankset is an FSA CK-320 with 38 teeth. The cassette is a Shimano Deore CS-M6100 with a range of 10–51 teeth, and the drivetrain uses a KMC e12S chain. The handlebars are BGM Pro Riserbars with a 15° backsweep and a 5 mm rise; the grips are Ergon GP10. The stem is a BGM E-Bike model, which is adjustable and suitable for integrating the Kiox display. The headset is an FSA NO.57SC-1, semi-integrated and tapered.

The rims are Ryde Rival 23 Disc with eyelets; the tyres are Schwalbe Hurricane Addix with reflective stripes, size 57-622. The hubs are Shimano HB-MT400 at the front and Shimano FH-MT410-B at the rear, both with Centre Lock disc brake mounts. The spokes are Sapim Leader.

The saddle is a Syncros Capilano Trekking Gel saddle and the seatpost is a Syncros Duncan Dropper Post with 120 mm of travel and remote control. The bike is fitted with Racktime Wingee mudguards, a Syncros kickstand and a Racktime/BGM luggage rack with the Snapit 2.0 system.

The E-Horizon FS Elite is powered by a fourth-generation Bosch Performance Line CX motor with an output of 250 W and a voltage of 36 V, enabling a maximum speed of 25 km/h. The battery is a Bosch PowerTube with a capacity of 625 Wh. The display is a Bosch Intuvia, and the charger is a Bosch Standard Charger with a 4A output.

In summary, the Bergamont E-Horizon FS Elite offers a comprehensive range of features and high quality, making it suitable for both everyday use and longer rides.
