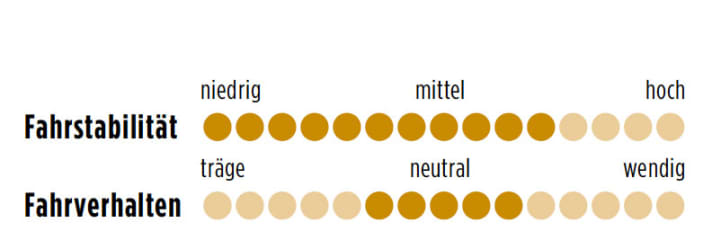

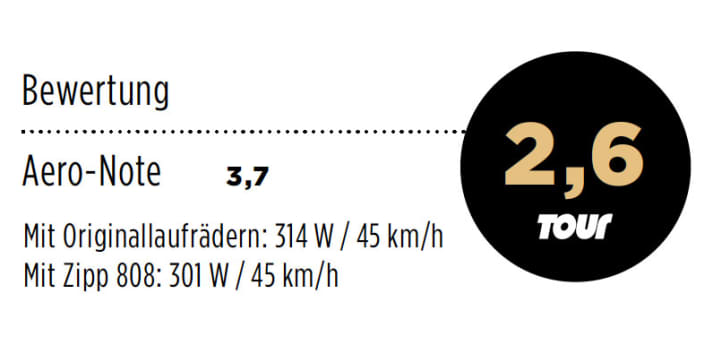

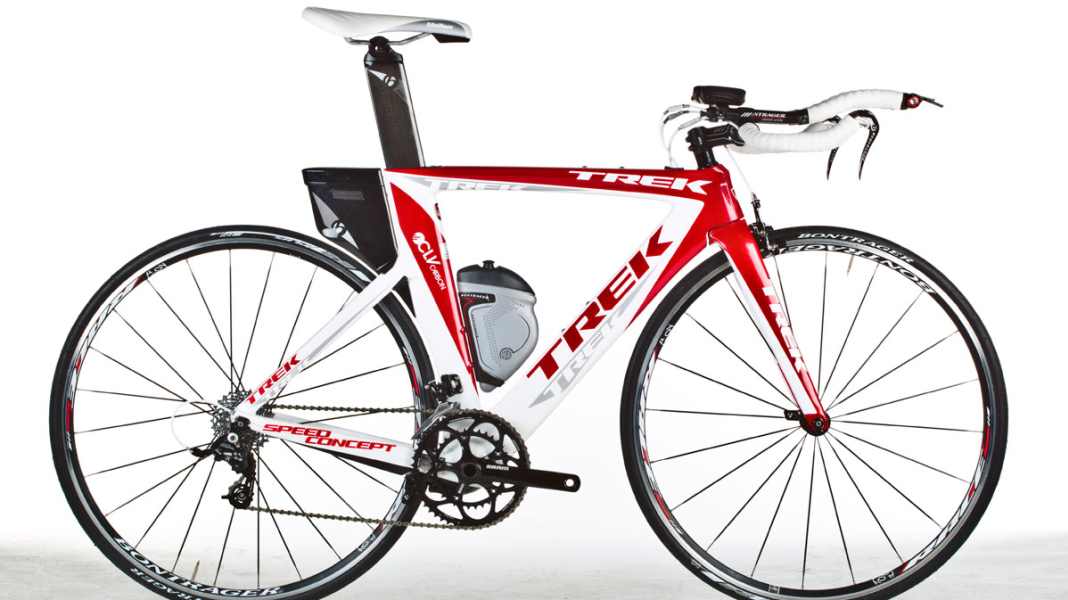

Like the expensive model (TOUR-Test 5/2011->), the entry-level version also has the characteristic tear-off edges (comb tail) at the ends of the tube profiles; the specially designed rear brake behind the bottom bracket has also been adopted. The frame therefore looks almost like a high-end model, apart from the slightly larger frontal area. The reference measurement with Zipp 808 wheels shows that it has considerable aero potential; here a jump of a whopping 13 watts to a good 301 watts at 45 km/h is achieved. The expensive frame probably forced Trek to economise on the equipment. This can be seen in the very simple wheels, but also in the compact cranks, which are unsuitable for a time trial bike. The riding stability of the 7.2 is significantly higher than that of the 9.9, which favours stronger riders.
Conclusion: Stable, first-class frame with good aero potential; very simple equipment
Price 2,999 Euro
Weight 9.0 kilos
Available in Specialised trade
Reference/Info www.trekbikes.com
Frame sizes* S, M, L
Seat/steering angle 78°-79,5°/72,5°
Seat/top tube/head tube 525/510/100 mm plus 8 mm spacer
Wheelbase/caster 990/60 mm
Stack/Reach/STR** 519/415 mm
EQUIPMENT
Brakes/brake lever Bontrager (front), Trek (rear)/Bontrager
Gear lever/gear shift SRAM 500 TT/SRAM Rival
Bottom bracket SRAM S350 (50/34 T., BB90)
Wheels/tyres Bontrager Race/Bontrager R1 Plus
Saddle Vision Aeromax Tri
Handlebar/stem Bontrager/Bontrager
*Manufacturer's specification; test frame size greased.
**Stack/reach: projected vertical/horizontal dimension from the centre of the bottom bracket to the top of the headset tube.
