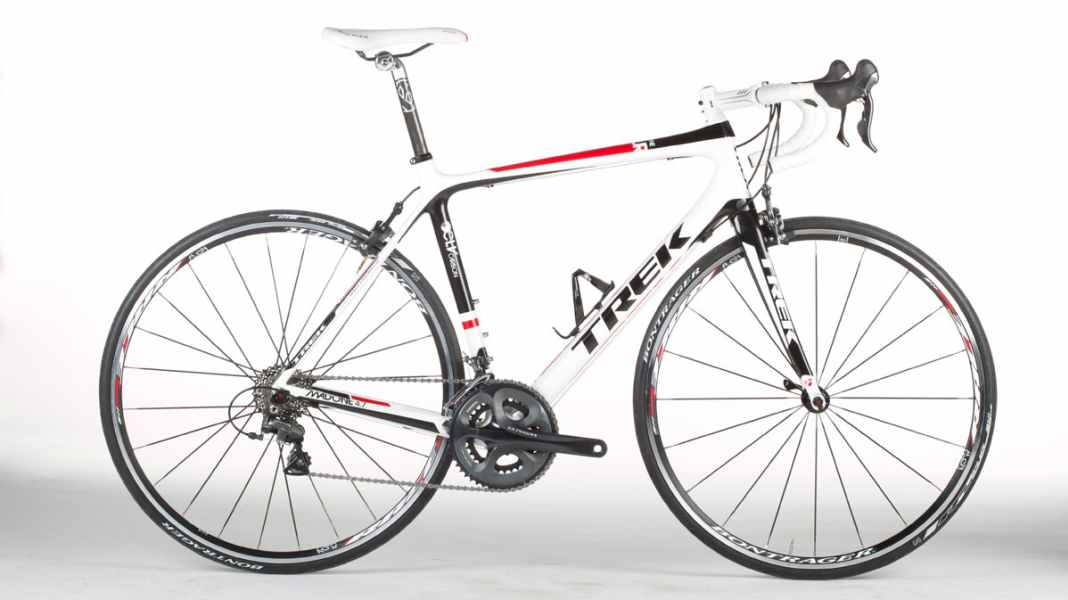

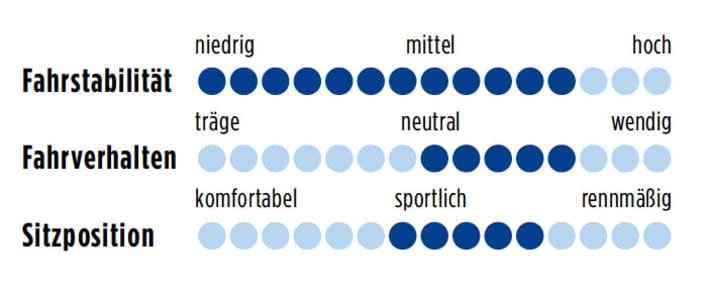

The Madone 4.7 is based on a technically solid, relatively heavy carbon frame. With multiple variations in tube profiles, an asymmetrical seat tube and an extra-wide bottom bracket shell, the bike has an individual appearance that clearly sets it apart from the competition. One detail that is increasingly being copied by other manufacturers is a transmitter integrated into the left chainstay that communicates with ANT+-compatible computers. The class-typical Ultegra groupset is joined by attachments and solid, albeit rather heavy, wheels from Trek's own brand Bontrager. On the road, the bike is manoeuvrable and smooth-running, with precise steering and well-balanced damping on the saddle and handlebars. The H2 geometry is the middle of three variants and hits the golden mean between a sporty and racing design.
Price 2,499 Euro
Weight 8.0 kilos
Available in Specialised trade
Reference/Info www.trekbikes.com
Weight frame/fork/steering bearing** 1,286/408/61 grammes
Frame sizes*** 50, 52, 54, 56, 58, 60, 62 cm
Seat/steering angle 73,5°/74,5°
Seat/top tube/head tube 535/565/168 mm plus 16 mm headset cap
Wheelbase/caster 985/51 mm
Stack/Reach/STR**** 578/394 mm/1.47
EQUIPMENT
Steering bearing FSA, top 1-1/8, bottom 1-1/2 inch
Brakes/gears/bottom bracket Shimano Ult egra (50/34 t., BB90)
Wheels/tyres Bontrager Race/Bontrager R2+
Handlebar/stem Bontrager Alloy Blade/Bontrager RL
Saddle/post Bontrager Affinity/Bontrager Carbon (27.2 mm)

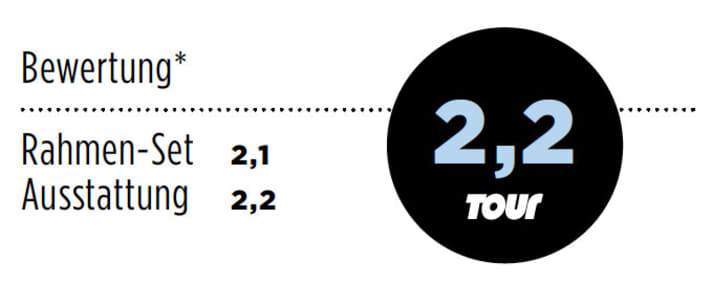

* The frameset accounts for 40 per cent and the equipment for 60 per cent of the overall rating.
**Weighed weights.
***Manufacturer's specification, test size greased.
****Stack/Reach: projected vertical/horizontal measurement from the centre of the bottom bracket to the top of the headset cap; STR (Stack to Reach): Values from 1.45 to 1.55 indicate a sporty riding position, values below that are race-like, above that comfortable.
