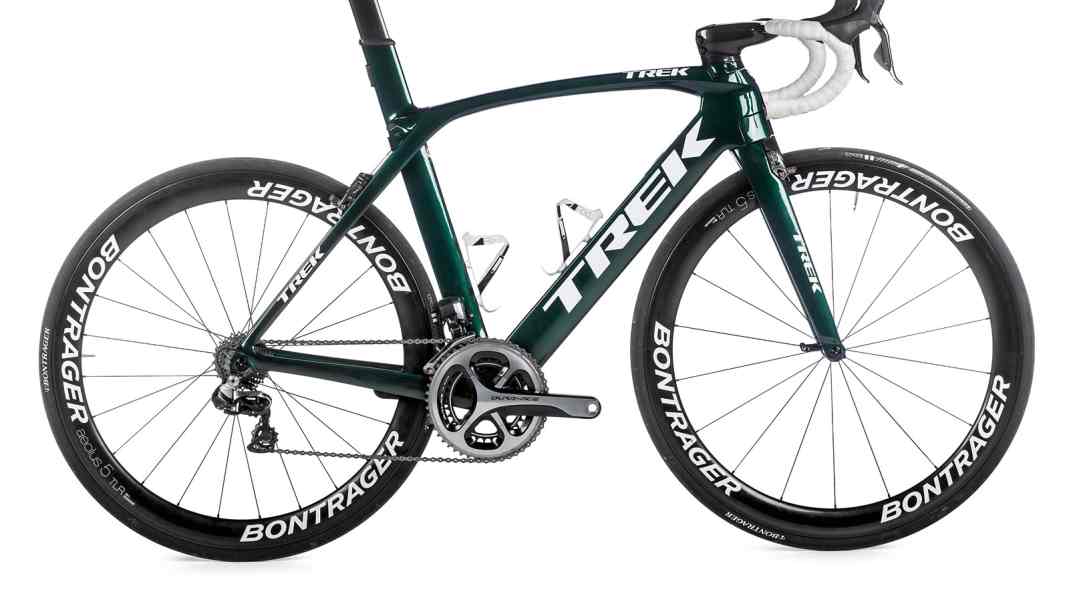

Whatever you think of the design, the result is clear: it's the fastest bike we've ever measured, and it combines this with the outstanding suspension comfort of the Isospeed seat tube. The top tube and seat tube are connected by a ball bearing that allows the seat tube to flex over its entire length. Fully integrated cables and brakes are also responsible for the aero result. The brake cables run through the handlebar/stem unit into the frame and from there to specially designed centre-pull brakes. The only points of criticism: the cork brake pads and the in-house tyres; there is still potential for tuning here. The sleek wheels are tubeless-compatible, and in addition to the radical racing geometry, a more moderate version with a longer head tube is also available.
CONCLUSION Outstanding aerodynamics, comfortable, successful integration solutions. A bike that sets standards, even in terms of price
Price 12,999 Euro
Weight 6.8 kilos
Available in specialised shops
Info www.trekbikes.com
Weight frame/fork/steering bearing* 1,069/396/56 grammes
Frame sizes** 50, 52, 54, 56, 58, 60, 62 cm
Seat/top tube/head tube 630/565/145 mm
Stack/Reach/STR*** 553/392 mm/1.41
EQUIPMENT
Drive Shimano Dura-Ace Di2 (50/34 t., BB90)
Brakes/gears Bontrager/Shimano Dura-Ace Di2
Wheels/tyres Bontrager Aeolus 5 TLR/Bontrager R4 23C (v/h: 969/1,432 grams)
*Weighed weights.
**Manufacturer's specification, test size bold.
***Stack/reach projected vertical/horizontal measurement from the centre of the bottom bracket to the top of the head tube; STR (Stack to Reach): 1.36 means a very stretched, 1.60 a very upright riding position;
****Wheel weights including tyres, cassette, quick release/threaded axles and brake discs if applicable
