The Nexio is one of the winners of this test because, of the previously tested aero models, it benefits the most from the new test procedure with a new dummy and fast Zipp 404 wheels. However, the frame also owes its good aero performance to the tear-off edges on all tubes in the wind, so-called comb tails. Three bottle cage threads on the down tube allow two different cage positions. In the carbon frame range of the Vorarlberg manufacturer, the Nexio represents the pithy racing machine. With high stiffness values, noticeable hardness on the saddle and an almost extreme racing geometry, the bike is made for spontaneous acceleration, solo escapes and sprints.
Price 6,399 Euro
Weight 6.6 kilos
Reference/Info www.simplon.com
Weight frame/fork/steering bearing** 1,022/358/73 grammes
Frame sizes*** 50, 53, 55, 57, 60 cm
Seat/steering angle 74°/73° seat/top/head tube 530/555/144 mm plus 19 mm headset cap Wheelbase/caster 990/55 mm
Stack/Reach/STR**** 555/401 mm/1.39
EQUIPMENT
Steering bearing Acros, top 1-1/8, bottom 1-1/4 inch
Brakes/gears/bottom bracket Shimano Dura-Ace Di2 9070 (50/34 t, Press-Fit BB86)
Wheels/tyres Mavic Cosmic SLE/Mavic Yksion Pro 23C
Handlebar/stem Simplon ERG/Simplon Zero
Saddle/post Selle Italia SLR Monolink/Simplon (aero profile)

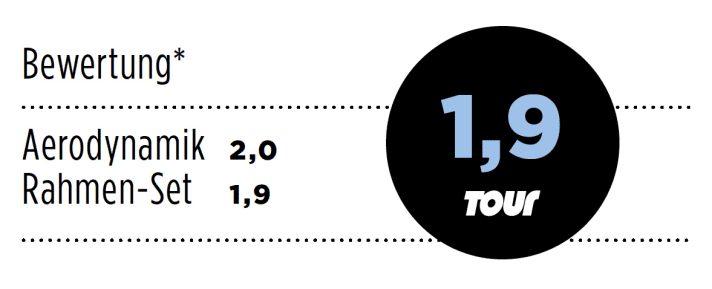

*The grades are calculated up to the final grade with all decimal places; for a better overview, however, we indicate all grades with rounded decimal places.
**Weighed weights.
***Manufacturer's specification, test size bold.
****Stack/Reach projected vertical/horizontal measurement from the centre of the bottom bracket to the top of the head tube; STR (Stack to Reach): 1.36 means a very stretched, 1.60 an upright riding position.
