THE WHEEL
The shifting technology and bottom bracket from Shimano's tried-and-tested 105 groupset do their job just as well as the Shimano brakes, which are slightly inferior in terms of quality. The rather narrow saddle even provides some suspension comfort thanks to the carbon seat post. The weak point of the equipment is the hard-rolling clincher tyres.
CONSULTING/SERVICE
We consider it a mistake to recommend a size M bike to a 1.81 metre tall customer. The dealer must also scrutinise the assembly quality. Side impacts in both wheels, a brake pad that doesn't lie flat against the rim, different quick-release levers and cable housing that is too long are too many defects to look past. It doesn't help that the bottle cage is a gift from the company and the warranty on the frame has been extended from five to ten years. Unfortunately, the owner's manual has been forgotten.
purchased from Radlbauer, Munich North
Price 1,099 Euro
Weight 9.0 kilos
Reference/Info www.scott-sport.com
Weight frame/fork/steering bearing** 1,525/600/41 grammes
Frame sizes*** XXS, XS, S, M, L, XL, X XL
Seat/steering angle 74,5°/73°
Seat/top tube/head tube 540/545/155 mm plus 5 mm headset cap
Wheelbase/caster 985/55 mm
Stack/Reach/STR**** 562/385 mm/1.46
EQUIPMENT
Fork Scott
Steering bearing Scott (1-1/8 inch)
Brakes Shimano R561
Gearshift/bottom bracket Shimano 105 (50/34 t., BSA)
Wheels/tyres Scott hubs, Alexrims rims/Continental UltraSport (clincher tyres)
Handlebar/stem Scott/Scott
Saddle/post Scott/Scott (31.6 mm)

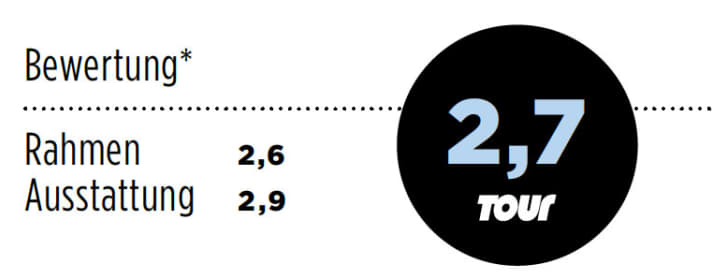

* The frame set accounts for 40 % of the overall grade, the equipment for 60 %. The grades are calculated up to the final grade with all decimal places; however, for the sake of clarity, all grades are given with rounded decimal places.
**Weighed weights.
***Manufacturer's specification, test size bold.

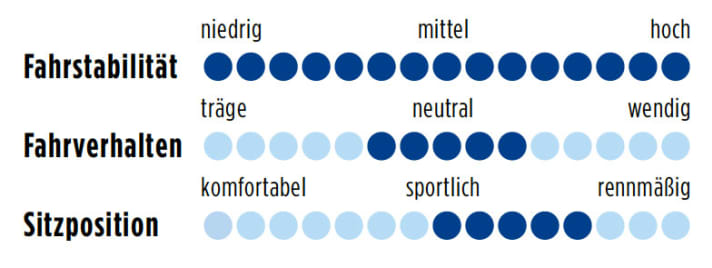

****Stack/Reach: projected vertical/horizontal measurement from the centre of the bottom bracket to the top of the head tube; STR (Stack to Reach): 1.40-1.50 means a sporty riding position, below that a racing position, above that a comfortable position.
