What a small facelift can do: Technically, the Spire frame is unchanged for the current model year, but thanks to the new graphics, the bike looks much more attractive and independent. The sporty impression it conveys thanks to the short head tube and sloping top tube is confirmed in practice. Here, the Spire turns out to be a thoroughbred racing machine: very stable with precise steering and unagitated steering geometry. The frame also offers noticeable suspension comfort thanks to the HiFlex seatpost from Syntace. A Radon wouldn't be a Radon if it wasn't opulently equipped. The high-profile wheels from Mavic are a highlight, offering clear aerodynamic advantages over wheels with flat rims and are also very suitable for everyday use. Only the saddle looks a little cheap, but is not uncomfortable.
Price 2,499 Euro
Weight 7.4 kilos
Available in Specialised trade and about the Mail order business
Reference/Info www.radon-bikes.com
Weight frame/fork/steering bearing** 1,194/388/90 grammes
Frame sizes*** 54 , 56, 58, 60, 63 cm
Seat/steering angle 74°/73,5°
Seat/top tube/head tube 560/560/164 mm plus 9 mm headset cap
Wheelbase/caster 990/52 mm
Stack/Reach/STR**** 563/400 mm/1.41
EQUIPMENT
Steering bearing No-name, top 1-1/8, bottom 1-1/2 inch
Brakes/gears/bottom bracket Shimano Ultegra (50/34 t., press-fit)
Wheels/tyres Mavic Cosmic Carbon SL/Schwalbe Ultremo ZX
Handlebar/stem Syntace Racelite Carbon 2/F109
Saddle/post Radon CrMo/Syntace P6 HiFlex (31.6 mm)

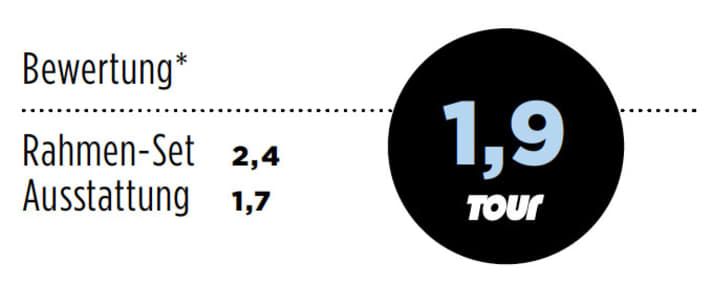

* The frameset accounts for 40 per cent and the equipment for 60 per cent of the overall rating.
**Weighed weights.
***Manufacturer's specification, test size greased.
****Stack/Reach: projected vertical/horizontal measurement from the centre of the bottom bracket to the top of the headset cap; STR (Stack to Reach): Values from 1.45 to 1.55 indicate a sporty riding position, values below that are race-like, above that comfortable.
