The many available frame sizes and the option of having the frame painted in the colour of your choice speak in favour of the Onroad Comp. According to Müsing, the fresh grass green colour is just one of 250 options. The formally sober, rigid aluminium frame falls into the "solid work tool" category. The equipment with 105 gears, groupless Shimano cranks and Aksium wheels from Mavic works perfectly. The Ritchey saddle should suit many riders. The main tuning tips are a lighter, better-sprung seatpost and easier-rolling tyres. The bike rides unobtrusively and the riding position is comfortable. All in all, it is a model without any weaknesses, but also without any outstanding features - apart from the beautiful colour.
Price 999 Euro
Weight 8.7 kilos
Available in specialised shops / construction kit
Reference/Info www.muesing-bikes.de
Weight frame/fork/steering bearing** 1,554/558/105 grammes
Frame sizes*** 46 to 64, 2 cm each (58)
Seat/steering angle 74°/73°
Seat/top tube/head tube 580/560/187 mm plus 17 mm headset cap
Wheelbase/caster 990/54 mm
Stack/Reach/STR**** 588/388 mm/1.52
EQUIPMENT
Steering bearing Ritchey, 1-1/8 inch
Brakes/gears Shimano 105
Bottom bracket Shimano FC-R565 (50/34 t., Press-Fit BB86)
Wheels/tyres Mavic Aksium/Mavic Aksion 25C
Handlebar/stem Ritchey Comp/Müsing
Saddle/post Ritchey Comp/Ritchey Comp (27.2 mm)

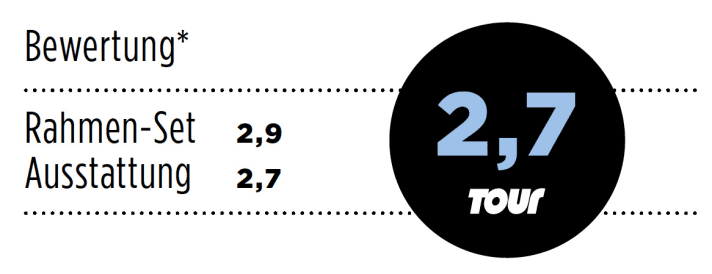

*The frame set accounts for 40 per cent and the equipment for 60 per cent of the overall grade. The grades are calculated with all decimal places up to the final grade; however, for the sake of clarity, all grades are given with rounded decimal places.
**Weighed weights.
***Manufacturer's specification, test size bold.
****Stack/Reach Projected vertical/horizontal dimension from the centre of the bottom bracket to the top of the head tube; STR (Stack to Reach): 1.36 means a very stretched, 1.60 an upright riding position.
