The type designation could be misleading: The Scultura CF 905 has little in common with the extremely race-orientated Scultura CF Team. Thanks to the long head tube, you sit on the 905 almost as relaxed as on a marathon racer; the long rear triangle also allows 25 mm tyres to be fitted instead of the standard 23 mm. The frame, which is heavy for a carbon model with generous tube diameters, is sufficiently stable for most conceivable riding situations. Its outstanding quality is the excellent suspension comfort of the carbon seatpost. Unfortunately, the concept is not continued on the handlebars; the heavy FSA bar with its unusual position is one of the most unyielding in the test. The powerful bi-colour brakes from TRP and the coherent design stood out positively.
Price 2,149 Euro
Weight 8.1 kilos
Available in specialised shops
Reference/Info www.merida-bikes.com
Weight frame/fork/steering bearing** 1,270/436/66 grammes
Frame sizes*** 47, 50, 52, 54, 56, 59 cm
Seat/steering angle 73,5°/73,5°
Seat/top tube/head tube 565/575/192 mm plus 18 mm headset cap
Wheelbase/caster 1,005/51 mm
Stack/Reach/STR**** 591/399 mm/1.48
EQUIPMENT
Steering bearing FSA, top 1-1/8, bottom 1-1/2 inch
Brakes TRP
Circuit Shimano Ultegra
Bottom bracket FSA Energy (50/34 t., FSA)
Wheels/tyres Fulcrum Racing 7/Continental UltraSport 23C
Handlebar/stem FSA Gossamer New Ergo/Merida
Saddle/post Prologo Kappa/Merida Carbon (27.2 mm)

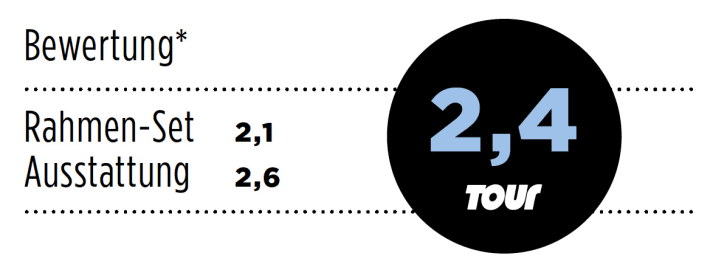

*The frame set accounts for 40 per cent and the equipment for 60 per cent of the overall grade. The grades are calculated with all decimal places up to the final grade; however, for the sake of clarity, all grades are given with rounded decimal places.
**Weighed weights.
***Manufacturer's specification, test size bold.
****Stack/Reach Projected vertical/horizontal dimension from the centre of the bottom bracket to the top of the head tube; STR (Stack to Reach): 1.36 means a very stretched, 1.60 an upright riding position.
