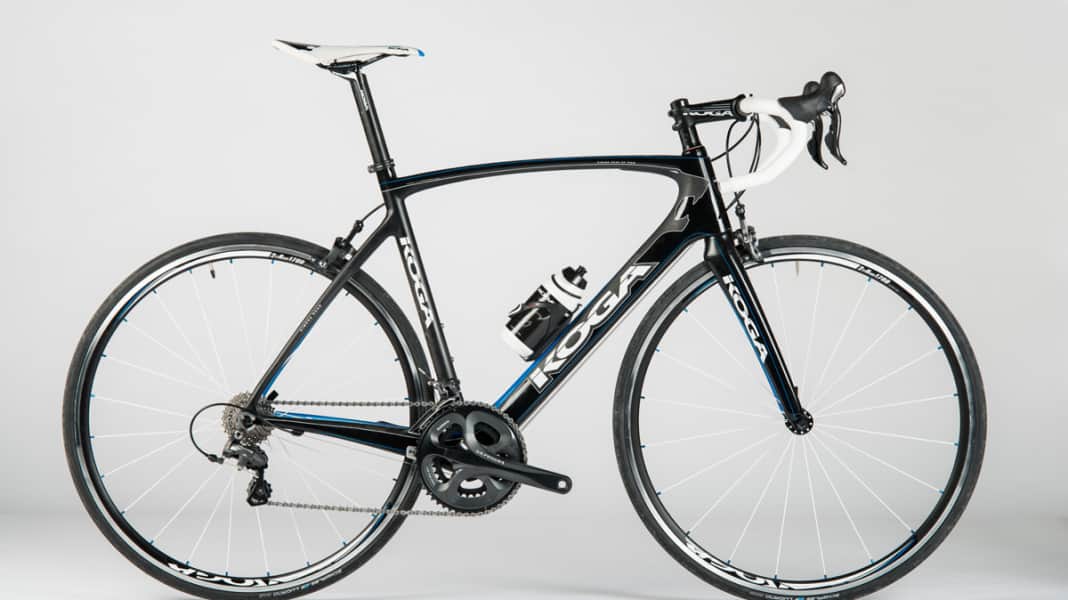

Even though the Kimera frame has been in the programme for several years, it still looks modern and unique. The extremely short head tube gives the bike a very race-like riding position. Thanks to the high stiffness values, which are mainly the result of the high material usage, the bike is a recommendation for sprinters. Thanks to the low-set seat stays, the bike provides noticeable suspension comfort on the saddle despite the oversized seat post. An original detail is the gear cables routed through the side of the head tube. The equipment is solid. The complete Ultegra is complemented by add-on parts with the Koga label, among which the comfortable saddle stands out. The thin top bar, on the other hand, is no longer up to date and feels uncomfortable to grip. The front rim attracted attention due to an unclean bump that caused heavy brake rubbing.
Price 2599 Euro
Weight 7.6 kilos
Available in specialised shops
Reference/Info www.koga.com
Weight frame/fork/steering bearing** 1,270/415/81 grammes
Frame sizes*** 50, 52, 54, 56, 58, 60, 63 cm
Seat/steering angle 73,5°/73°
Seat/top tube/head tube 560/570/155 mm plus 14 mm headset cap
Wheelbase/caster 1,000/55 mm
Stack/Reach/STR**** 557/405 mm/1.37
EQUIPMENT
Steering bearing FSA, top 1-1/8, bottom 1-1/4 inch
Brakes/gears/bottom bracket Shimano Ultegra (50/34 t., press-fit)
Wheels/tyres Koga 2TT Race 1700/Schwalbe Lugano
Handlebar/stem Koga/Koga
Saddle/post Koga/Koga (31.6 mm)
*The frame set accounts for 40 % of the overall grade, the equipment for 60 %. The grades are calculated with all decimal places up to the final grade; however, for the sake of clarity, all grades are given with rounded decimal places.
**Weighed weights.
***Manufacturer's specification, test size bold.
****Stack/Reach: projected vertical/horizontal measurement from the centre of the bottom bracket to the top of the head tube; STR (Stack to Reach): 1.36 means an extremely race-like riding position, 1.60 an extremely comfortable riding position. A typical sporty position is in the range of 1.44 to 1.49.
