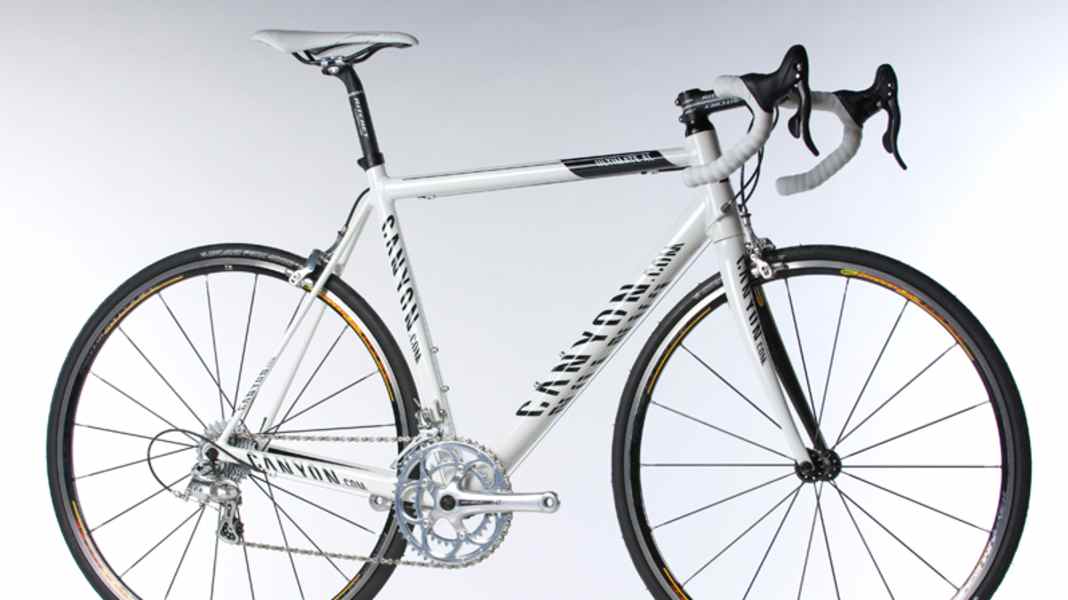

Anyone interested in the replica of the Omega-Pharma-Lotto team bike will have to search for a long time on the Canyon website. But the bike has no need to hide. The frame and equipment are among the best on offer in this price range. Campa's "Athena" groupset in particular makes a first-class impression with its finely stepped gearing, excellent shifting precision, easy to modulate brakes and easy-to-grip shift levers. Otherwise, the frame impresses with qualities that have already earned it several top placings in TOUR tests: in addition to superior directional stability and the best power transmission, the outstanding comfort on the saddle is particularly impressive. The only criticism of the otherwise convincing package is the somewhat rough weld seams. We've seen better on this model.
Reference/InfoCanyon Bicycles GmbH, phone 0261/404000, www.canyon.com
Weight frame/fork/headset bearing*: 1,344/335/74 g
Frame sizes**: 50, 52, 54, 56, 58, 60, 62, 64, 66 cm
Seat/steering angle: 73.5°/73°
Seat / top / head tube: 572/560/188 mm
Wheelbase/caster: 990/61 mm
Stack/Reach/STR***: 595/385 mm/1.54
Equipment
Fork: Canyon
Steering bearing: Acros, top 1-1/4, bottom 1.5 inch

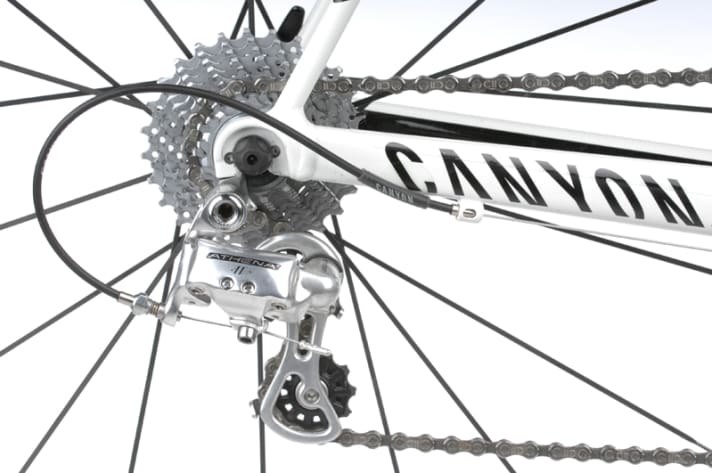

Brakes/gears/bottom bracket: Campagnolo Athena (50/34 t.)
Wheels/tyres: Mavic Ksyrium Equipe/Continental Grand Prix 4000 S tyres
Handlebar/stem: Ritchey WCS/Ritchey WCS
Saddle/post: Selle Italia SL/ Ritchey WCS (27.2 mm)
* weighted weights; ** manufacturer's specification, test frame size greased; *** stack/reach: projected vertical or horizontal measurement from the centre of the bottom bracket to the top of the headset cap; STR (stack to reach): Values between 1.45 and 1.55 denote a sporty riding position, values below are race-like, above are comfortable
