The TimeMachine was derived directly from the Swiss brand's spectacular time trial bike. Its prestige is enhanced by the fact that the Australian Cadel Evans completed several stages on this bike during his Tour victory in 2011. In the wind tunnel, the black and red bullet confirmed the good result of the last test and came third in the speed ranking behind Cervélo and Merida (205 watts at 45 km/h). The well-functioning V-brakes integrated into the fork and chainstays are a defining feature. The front brake cable runs under a cover in front of the head tube. The large-volume tubes end at the rear with tear-off edges. Laminated beads on the tubes in the wind are designed to create turbulence, which smoothes the overall airflow. The lab results show the bike to be stable and not very comfortable.
Price 9,999 Euro
Weight 6.8 kilos
Reference/Info www.bmc-racing.com
Weight frame/fork/steering bearing** 1,062/487/76 grammes
Frame sizes*** 48, 51, 54, 56, 58, 61 cm
Seat/steering angle 73,5°/72,5°
Seat/top tube/head tube 585/560/157 mm plus 7 mm headset cap
Wheelbase/caster 990/63 mm
Stack/Reach/STR**** 561/394 mm/1.42
EQUIPMENT
Steering bearing BMC, top 1-1/8, bottom 1-1/4 inch
Brakes/gears/bottom bracket Shimano Dura-Ace DI2 9070 (53/39 t, Press-Fit BB86)
Wheels/tyres Zipp 404/Continental Competition (tubular tyre)
Handlebar/stem 3T Ergonova/3T ARX
Saddle/post Fizik Arione/BMC (aero profile)

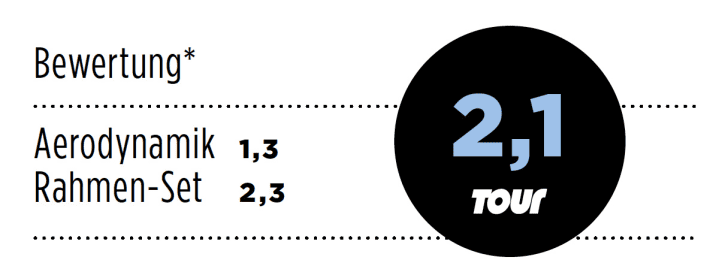

*The grades are calculated up to the final grade with all decimal places; for a better overview, however, we indicate all grades with rounded decimal places.
**Weighed weights.
***Manufacturer's specification, test size bold.
****Stack/Reach projected vertical/horizontal measurement from the centre of the bottom bracket to the top of the head tube; STR (Stack to Reach): 1.36 means a very stretched, 1.60 an upright riding position.
