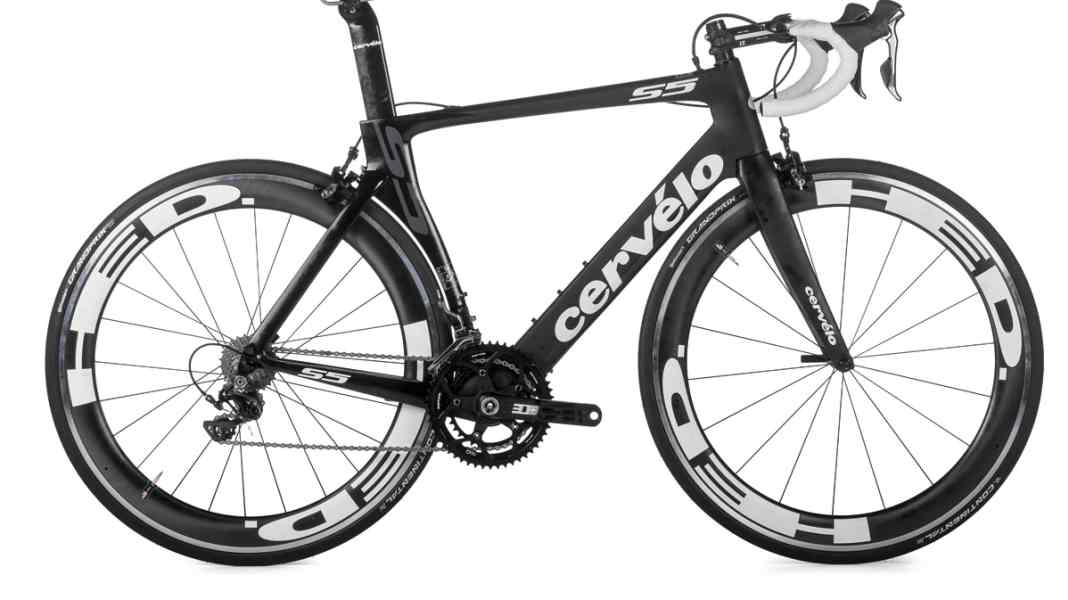

Following the aero test in TOUR 2/2014 as the fastest road bike frame on the market, but was not as stable and comfortable. The new S5 is much improved in these areas in particular. A direct comparison of the two generations shows that the down tube is slightly more voluminous, the transition from fork to head tube has been shaped differently and the fork blades have been made wider. In the wind tunnel, the bike performs just as well as its predecessor. Interesting: With standard wheels, the cwA value is more favourable than with the Zipp 404. Part of the concept of the new S5 is an aero handlebar split in two in the clamping area, which directs the airflow around the stem clamp. One drawback remains that the bike rides extremely harshly.
Price 6,800 Euro
Weight 7.1 kilos
Available in specialised shops
Reference/Info www.cervelo.com
Frame/fork/steering bearing weight 1,093/376/54 grammes
Frame sizes 48, 51, 54, 56, 58, 61 cm
Seat/steering angle 73°/73,5°
Seat/top tube/head tube 505/565/158 mm plus 6 mm headset cap
Wheelbase/caster 985/53 mm
Stack/Reach/STR 565/394 mm/1.43
Equipment
Steering bearing FSA, top 1-1/8, bottom 1-3/8 inch
Brakes/gears Shimano Dura-Ace
Bottom bracket Rotor 3DF+ (52/36 t., BB-Right)
Wheels/tyres HED Jet 6+/Continental Grand Prix 23C
Handlebar/stem Cervélo All-Carbon Aero/FSA OS99
Saddle/post Fizik Antares/Cervélo (Aeroprofil)
*The frame set accounts for 36 per cent of the overall score, the equipment for 54 per cent and the aerodynamics for 10 per cent. The grades are calculated with all decimal places up to the final grade; however, for the sake of clarity, all grades are given with rounded decimal places.
**Weighed weights.
***Manufacturer's specification, test size greased.
