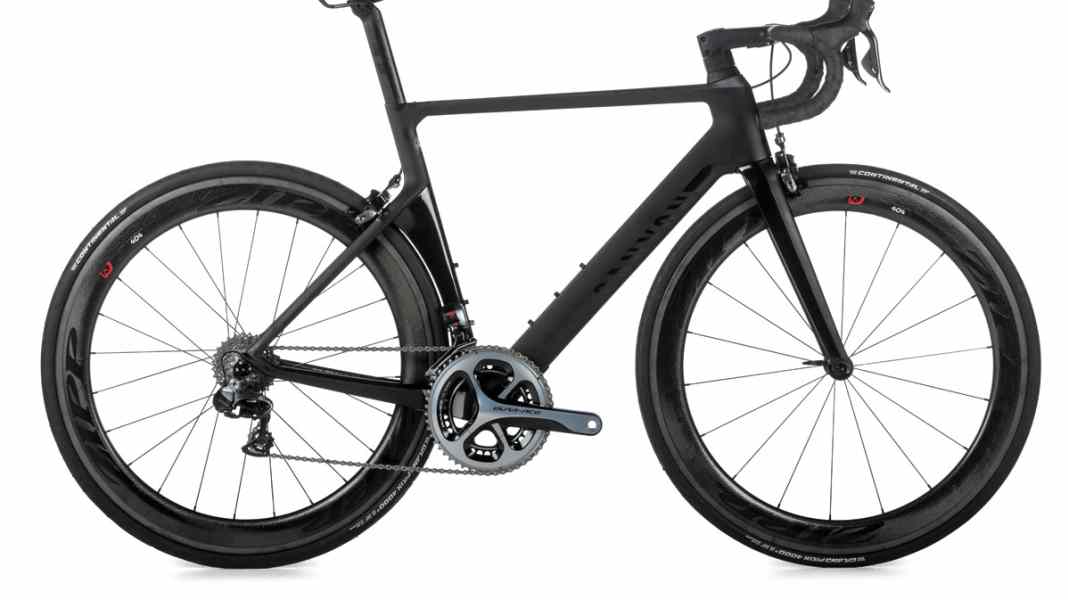

The new Aeroad is tailored to the wishes of racing cyclists. The short head tube places the handlebars low down. It's impressive how Canyon has managed to combine previously contradictory characteristics such as aerodynamics and suspension comfort. The aero support flexes noticeably. The spec is so good that we can't think of a single detail that could improve the bike. Even the smart Di2 sprinter shifters in the handlebars are on board. The integration of the electric drivetrain is also exemplary. The junction box is hidden in the aerodynamic handlebar/stem unit and the battery is pushed through the bottom bracket shell into a holder in the down tube. Not entirely unimportant: the Aeroad is one of the best in the wind tunnel.
Price 6,799 Euro
Weight 6.8 kilos
Available via mail order
Reference/Info www.canyon.com
Frame/fork/steering bearing weight 955/378/56 grammes
Frame sizes 47, 50, 53, 56, 58, 60, 62 cm
Seat/steering angle 74°/74°
Seat/top tube/head tube 530/560/145 mm plus 38 mm headset cap
Wheelbase/caster 985/54 mm
Stack/Reach/STR 552/397 mm/1.39
Equipment
Steering bearing Canyon, 1-1/4 inch
Brakes/gears/bottom bracket Shimano Dura-Ace Di2 (52/36 t, press-fit)
Wheels/tyres Zipp 404/Continental Grand Prix 4000 S2 23/25C
Handlebar/stem Canyon Aerocockpit
Saddle/post Fizik Arione R5/Canyon S27 Aero VCLS (aero profile)
*The frame set accounts for 36 per cent of the overall score, the equipment for 54 per cent and the aerodynamics for 10 per cent. The grades are calculated with all decimal places up to the final grade; however, for the sake of clarity, all grades are given with rounded decimal places.
**Weighed weights.
***Manufacturer's specification, test size greased.
