Turning off the forest track onto off-road terrain on a gravel bike. This is clearly better with suspension models. The True Gravel Suspension category with up to 50 millimetres of suspension travel is becoming increasingly popular. Seven models in comparison.
Suspension on a gravel bike: progress or betrayal?
Hardly any other topic has been discussed as controversially in the gravel cosmos as suspension. The fact is that most gravel bikers mainly ride on forest tracks and tarmac. The bikes should be light, direct and efficient - reduced to the essentials. But more and more gravel bikers also want to turn off the forest track and onto a single trail, because the types of gravel biking are becoming more and more diverse: bikepacking and adventure tours, technically demanding gravel races - the more the material can handle, the more you dare to tackle unknown terrain. And what professional racers in the cross-country mountain bike discipline have known for a long time is also gradually gaining acceptance among the gravel clientele: Suspension systems not only improve comfort, they also increase efficiency off the beaten track and prevent fatigue. More traction, less power loss due to bumps, higher riding speed on poor surfaces and significantly reduced strain on hands, arms, upper body and buttocks - many good reasons to take a closer look at this still young category.
The three categories of suspension gravel bikes
The trend is still young, but the market has already differentiated itself. Suspension gravel bikes can be divided into three classes.
Micro suspension: 20 to 30mm
Focus on vibration damping instead of off-road capability. Head tube systems, leaf spring forks or targeted frame flex almost completely preserve the classic gravel feeling. Ideal for fast tracks, all-road use and long-distance riders looking for comfort without compromising on weight and efficiency.
Dropbar MTBs: 60 to 100mm
The most radical interpretation: mountain bike geometries, large-volume tyres and genuine MTB suspension - combined with racing handlebars. Maximum terrain-orientated, extremely confident, but heavier and aerodynamically at a disadvantage. A deliberate alternative to the XC hardtail.
True Gravel Suspension: 30 to 50mm
The category that is considered the golden mean in 2026 lies exactly between the poles mentioned above. It delivers noticeable suspension performance without sacrificing the character of a gravel bike. True gravel suspension bikes remain committed to the basic gravel concept. Their geometries are clearly typical of gravel bikes: balanced, efficient, suitable for long distances. The suspension travel is deliberately moderate and the forks are specially developed for this area of use - lighter and more direct than classic MTB suspension.
The effect is subtle, but decisive: the bike remains fast, reacts precisely, but loses its nervousness on rough surfaces. Where unsprung bikes lack traction and composure, true-gravel bikes ride faster and more smoothly.
Six models in detail

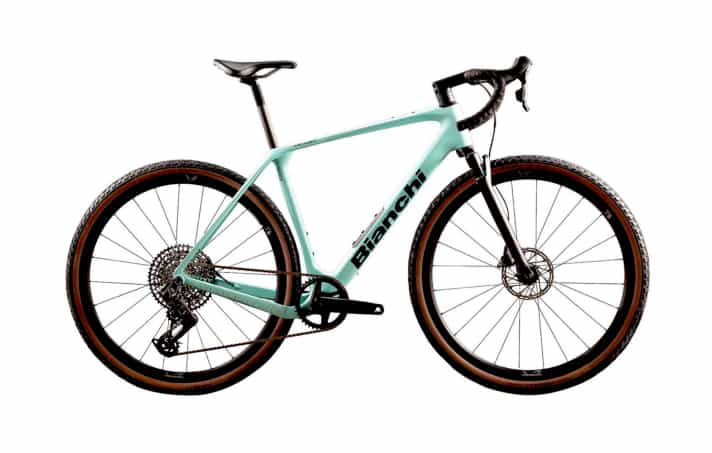

Bianchi Arcadex Pro - Italian elegance
The Arcadex Pro marks Bianchi's most consistent step towards True Gravel Suspension to date. The aerodynamically optimised carbon frame combines sporty lines without sacrificing the robustness required for technical terrain, according to the manufacturer.
The RockShox Rudy XPLR with 30 mm travel is deliberately firm and effectively filters out hard impacts without diluting the direct feedback from the front. In combination with the comfort-orientated but efficient geometry, the Arcadex Pro is particularly suitable for long distances with varying terrain. The integrated storage compartment in the down tube emphasises the adventure claim. The Arcadex Pro is intended to be the ideal tool for explorers: it combines Italian design elegance with genuine off-road expertise and contemporary system integration.
Key technical data
- Frame: Arcadex Carbon with Internal Frame Storage (IFS), 12×142 mm thru axle, UDH derailleur hanger
- Spring travel v: 30 mm
- Impellers: Velomann Terbium 30 Carbon
- Drive / gearstick: choice of SRAM Rival XPLR AXS or Apex GX AXS
- Brakes: SRAM Rival hydraulic disc brakes (160 mm)
- Price: approx. 5.050Euro

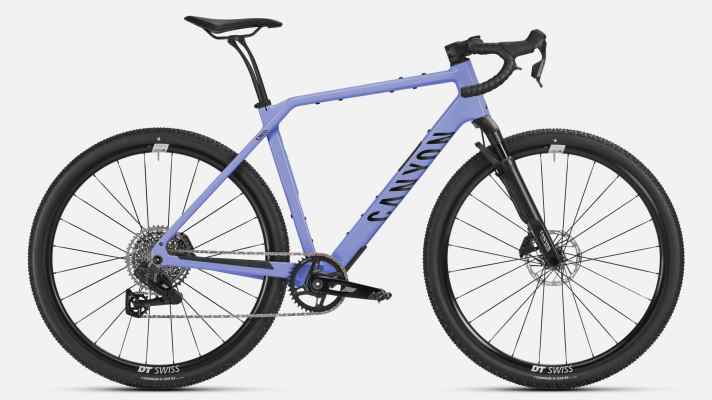

Canyon Grizl CF 8 Rift - maximum versatility
Canyon takes a decidedly functional approach with the Grizl Rift. The DT Swiss F132 ONE RIFT offers 40 mm of travel and differs from competitor products primarily due to the handlebar remote lockout. This allows the bike to be transformed from a comfort-orientated off-roader to a tough racing machine depending on the situation.
In combination with the flexing seatpost, the aim is to create a particularly harmonious riding experience: noticeable relief on rough surfaces, clear directness on fast passages. The "long-reach" geometry ensures a smooth ride at speed without making the Grizl feel sluggish.
The integrated LOAD storage compartment and numerous mounting points emphasise its do-it-all ambitions. The Grizl Rift is aimed at riders who want to cover racing, training and adventure with one bike - and are looking for a particularly strong price-performance ratio.
Key technical data
- Frame: Grizl CF Carbon with LOAD storage compartment, 12×142 mm thru axle, mounting points for mudguards/pannier rack
- Spring travel f/h: 40 mm / 20 mm (seat post)
- Impellers: DT Swiss G1800 Spline, Tubeless Ready
- Drive / gearstick: SRAM Rival XPLR AXS with 10-51T cassette
- Brakes: SRAM Rival AXS hydraulic disc brakes (160 mm)
- Price: from 3,499 euros (CF9 Rift from 5,999 euros)

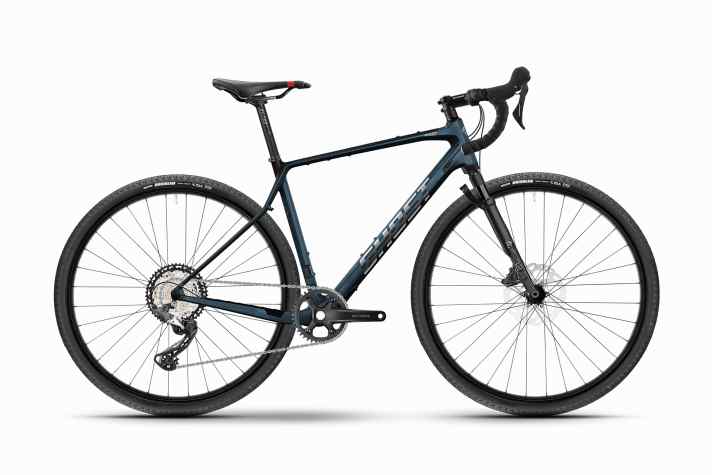

Ghost Asket CF Full Party - robust all-rounder
The Ghost Asket CF is based on a lightweight carbon frame combined with the Fox 32 Float AX Performance Elite, which offers 40 mm of travel. Ghost has opted for a geometry with a short rear end and distinctive sloping, which ensures greater freedom of movement off-road. Particularly practical: the numerous mounting points for bikepacking equipment transform the bike from an agile after-work trail raider into an adventure-ready expedition vehicle in no time at all.
The price-performance ratio is impressive, as Ghost combines a high-quality carbon chassis with strong Fox suspension and a reliable SLX 12-speed MTB groupset. The Asket CF Full Party is the ideal choice for riders looking for a robust, versatile gravel bike that can also be used to tackle technical single trails.
Key technical data
- Frame: Asket Carbon (CF) with numerous mounting points
- Spring travel v: 40 mm
- Impellers: Rodi Ready 23 ASY
- Drive / gearstick: Shimano GRX 822 / SLX 12-speed mix (10-51T)
- Brakes: Shimano GRX hydraulic disc brakes (160 mm)
- Price: approx. 3,499 euros (top model Asket CF30: approx. 6,000 euros)

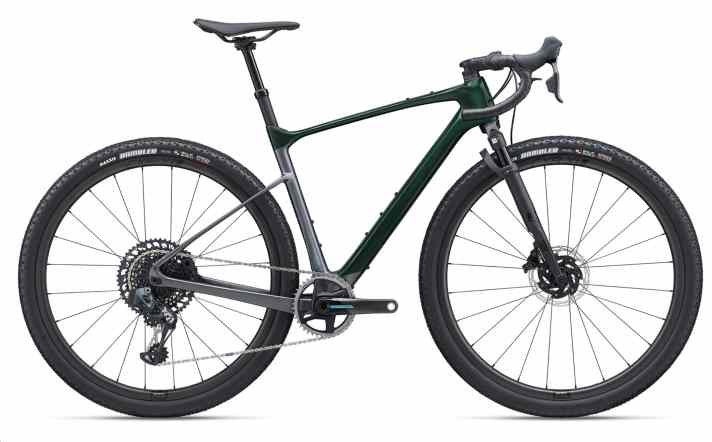

Giant Revolt X Advanced Pro 2 - comfort and control
The Revolt X Advanced Pro 2 is the trail-focussed evolution of the proven Revolt platform. While the standard model is trimmed for pure efficiency, the "X" consistently focusses on control in rough terrain. The centrepiece is the RockShox Rudy XPLR (40 mm), which, in combination with the longer wheelbase and an optimised fork offset, is designed to ensure high stability on rough surfaces and off-road descents.
The Contact Switch Dropper Post is a truly unique selling point in this segment: The telescopic seatpost offers 100 mm drop for technical passages and also has an integrated 30 mm suspension for extra comfort. Thanks to the flip-chip system at the dropout, the wheelbase can also be individually adjusted to prioritise agility or maximum directional stability depending on the terrain. A potent off-roader for adventurers who want to blur the boundaries between gravel and MTB.
Key technical data
- Frame: Advanced-grade carbon with flip-chip dropout
- Spring travel f/h: 40 mm / 30 mm (seat post)
- Impellers: Giant CXR 2 Carbon
- Drive / gearstick: SRAM X1 Eagle AXS (12-speed, wireless)
- Brakes: SRAM Apex eTap AXS (160 mm)
- Price: from 4,299 euros (Pro 0: 6,999 euros)

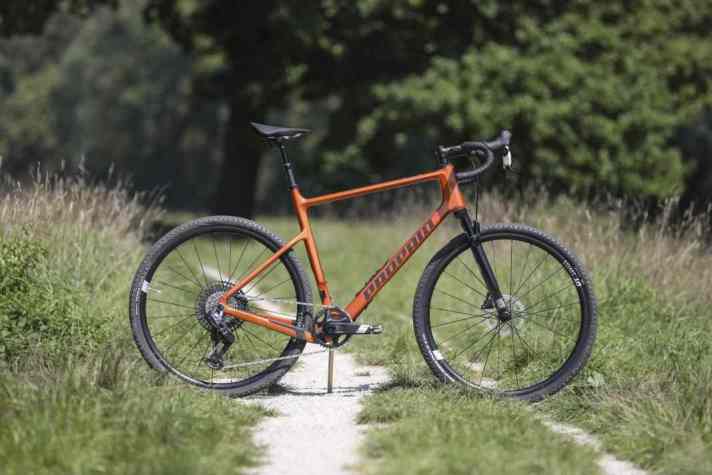

Propain Terrel CF Trail: Gravity DNA
The Terrel CF Trail is Propain's answer to the question of how much mountain bike fits into a gravel bike. As the brand's first gravel model, it breaks with the image of the delicate racer: the robust carbon frame with the striking "Blend Carbon Layup" is trimmed for maximum durability and offers an integrated storage compartment for tools or a windbreaker. There is 40 mm of travel at the front, while the RockShox Reverb dropper post with 75 mm travel ensures great freedom of movement in technical terrain.
With a long reach and relatively slack head angle (70.5°), the geometry is consistently designed for safety in off-road use. The Propain Terrel CF Trail is primarily aimed at riders who come from mountain biking and are looking for a bike that masters technical single trails with confidence without losing too much efficiency on long gravel stages.
Key technical data
- Frame: Terrel CF High-Modulus Carbon with integrated storage compartment and UDH derailleur hanger
- Spring travel v: 40 mm
- Impellers: configurable, e.g. DT Swiss G 1800 Spline
- Drive/gear shift: configurable, e.g. SRAM Force AXS Transmission
- Brakes: configurable, e.g. SRAM Force AXS (160 mm rotors).
- Price: from € 4,049 (configurator)

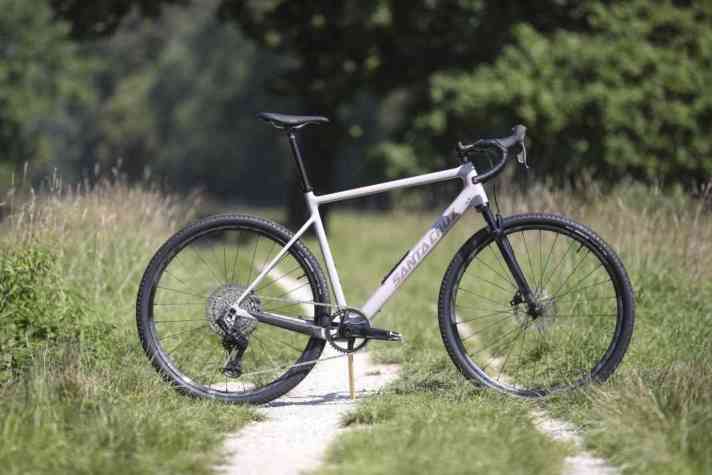

Santa Cruz Stigmata Rudy - California Dreaming
In the 2026 "Rudy" edition, the Californians want to transform their high-end all-rounder into the ultimate all-purpose weapon for off-road use by integrating the RockShox Rudy Ultimate (40 mm). With this model, Santa Cruz manages the balancing act between a stiff carbon frame trimmed for propulsion and at the same time vibration-damping, which also impresses in terms of everyday suitability thanks to the proven glovebox storage compartment in the down tube.
According to the manufacturer, the geometry has been specifically optimised to provide a smooth ride at high speeds without sacrificing the agility of a gravel racer. The equipment leaves little to be desired and is appropriately high-end: The combination of the in-house Reserve carbon wheels with a lifetime guarantee, the precise SRAM X0 Eagle AXS wireless drivetrain and the Rudy Ultimate suspension should justify the price.
Key technical data
- Frame: Carbon CC with glovebox storage compartment
- Spring travel v: 40 mm
- Impellers: Reserve 25 GR Carbon
- Drive/gear shift: SRAM Force XPLR AXS
- Brakes: SRAM Force hydraulic disc brakes (160 mm)
- Price: approx. 7,799 Euro

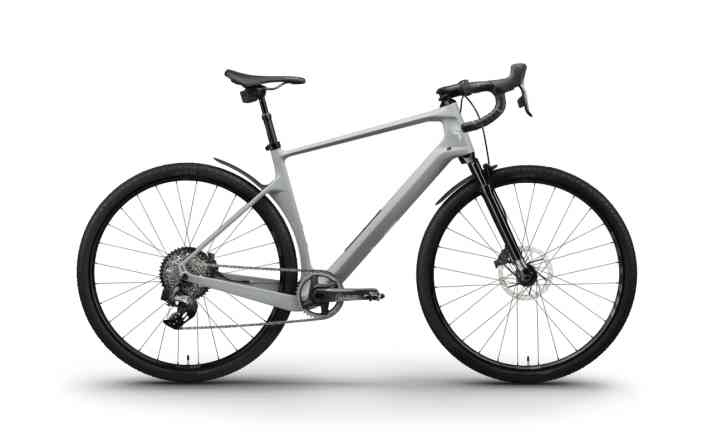

YT Scepter Core 4 - young talent
You can feel the mountain bike DNA in every fibre of the YT Szepter Core 4. The Szepter literally screams for steep off-road descents - the mail-order company Young Talent Industries consistently brings its "gravity" attitude to the gravel segment. The geometry breaks with classic road conventions: An extremely long reach meets a short stem, which should give the bike handling that is otherwise more familiar from aggressive trail hardtails.
A striking technical highlight is the short seat tube with the integrated fender - a solution that is not only visually polarising, but also creates space for the SRAM Reverb AXS dropper post. In combination with the slack 69-degree head angle and the RockShox Judy Ultimate, the Sceptre should offer a level of confidence on steep terrain that is unrivalled in this class. As usual from YT, the price-performance ratio is a real statement: here you get high-end components and a progressive frame concept at an affordable price. A bike for all those who prefer to interpret gravel biking as "mountain biking with racing handlebars".
Key technical data
- Frame: Ultra High Modulus Carbon
- Spring travel v: 40 mm
- Impellers: WTB Proterra Light i23
- Drive/gear shift: SRAM Force eTap AXS
- Brakes: SRAM Force AXS
- Price: 4,499 euros (Core 3 for 3,299 euros, Core 2 for 2,499 euros)
Conclusion
True gravel suspension bikes have established themselves on the market in 2026. And for good reason: they offer real off-road performance without sacrificing the efficiency, weight and ride feel of classic gravel bikes. Striking developments include special gravel suspension forks with 40 mm travel and progressive geometries that are based on trends from cross-country mountain biking. Anyone who races, plans long distances or wants to master technical terrain with confidence will find the best compromise between control, speed and versatility in this category.
