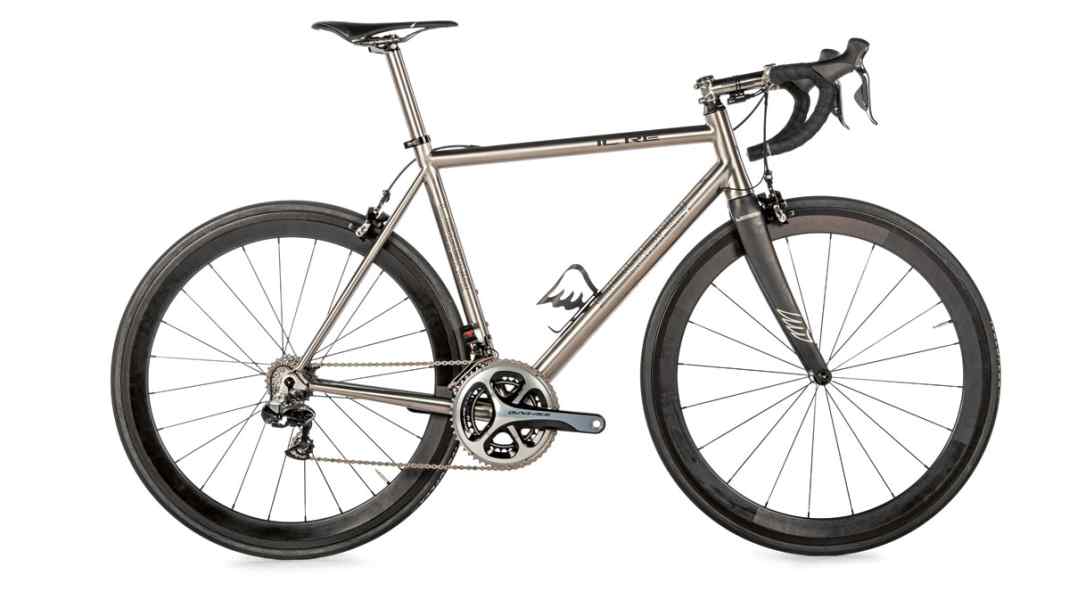

Legend from Bergamo has existed since 2009 and uses carbon, aluminium, steel and titanium, all made to measure. There is an experienced man behind the young brand: owner Marco Bertoletti has been in the business as a frame builder for almost 40 years, according to his own statement. He does not want to reveal which brands he has worked for. Instead, he lets his craft speak for itself and shows that he has extremely high standards. So much dedication has visibly gone into the Il Re that you no longer need to justify the price: meticulously smoothed weld seams, fine engravings, elaborate cable guides, carbon inlays in the dropouts. Many of the fine craftsmanship and artistic details only become apparent on closer inspection. The highly manoeuvrable bike also shines on the road with its great stiffness and comfort. Pure understatement.
Price 5,299 / 12,246 Euro
Weight 7.4 kilos
Available in specialised shops / customised frames
Reference/Info www.legendfactory.eu
Weight frame/fork/steering bearing** 1,724/402/79 grammes
Frame sizes*** made to measure only
Seat/steering angle 73,5°/74°
Seat/top tube/head tube 545/570/165 mm plus 17 mm headset cap
Wheelbase/caster 990/48 mm
Stack/Reach/STR**** 562/400 mm/1.41
EQUIPMENT
Steering bearing Legend
Brakes/gears/bottom bracket Shimano Dura-Ace Di2 (BSA, 50/34 t.)
Wheels/tyres PMP RS03/Veloflex Carbon (tubular tyre)
Handlebar/stem ControlTech Ti-Mania
Saddle/post Selle Italia SLR Carbon/PMP Titanium (31.6 mm)

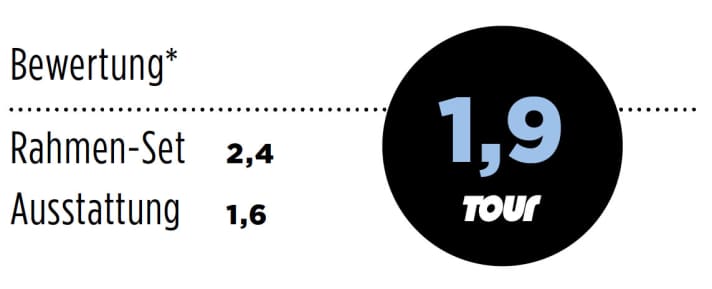

*The frame set accounts for 40 per cent and the equipment for 60 per cent of the overall grade. The grades are calculated with all decimal places up to the final grade; however, for the sake of clarity, all grades are given with rounded decimal places.
**Weighed weights
***Manufacturer's test size bold
****Stack/Reach Projected vertical/horizontal dimension from the centre of the bottom bracket to the top of the head tube; STR (Stack to Reach): 1.36 means a very stretched, 1.60 an upright riding position.
