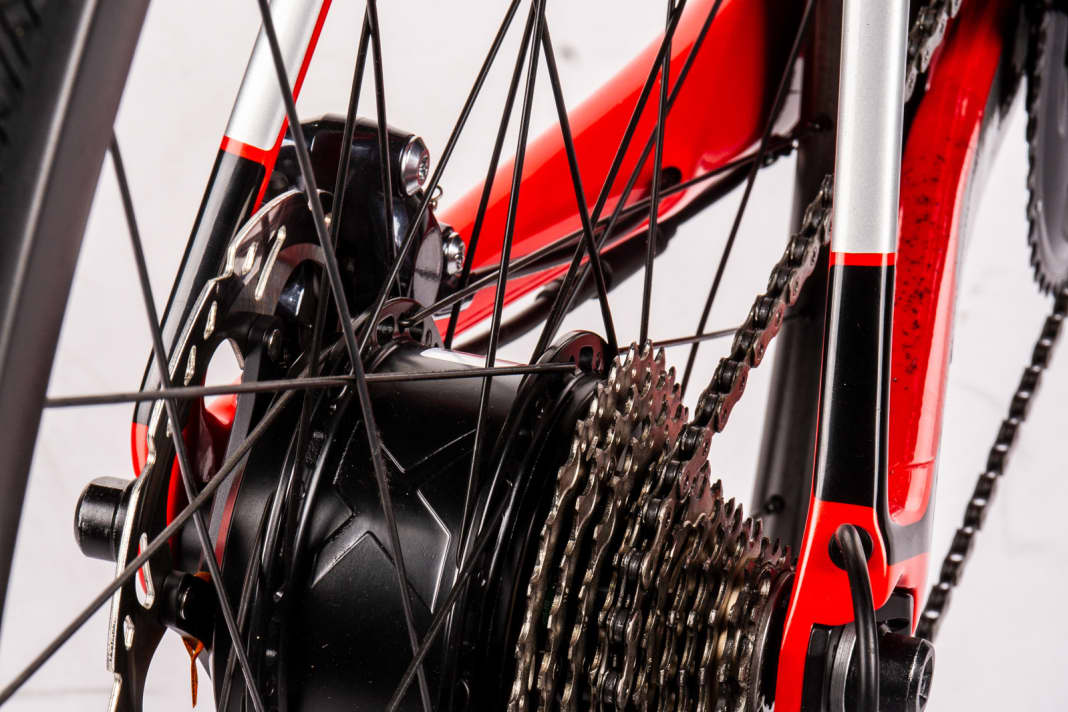

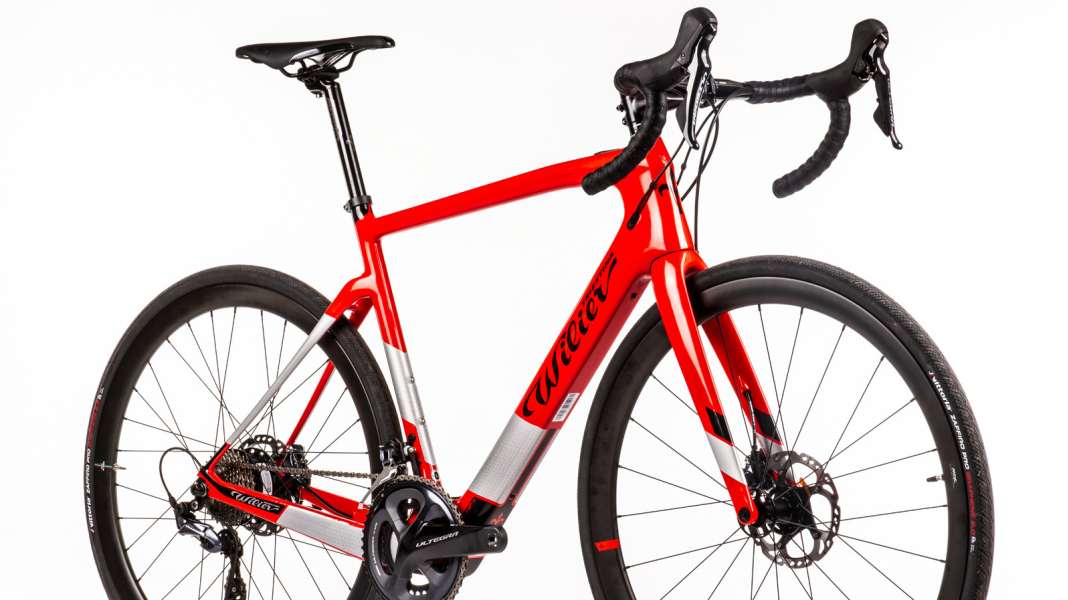

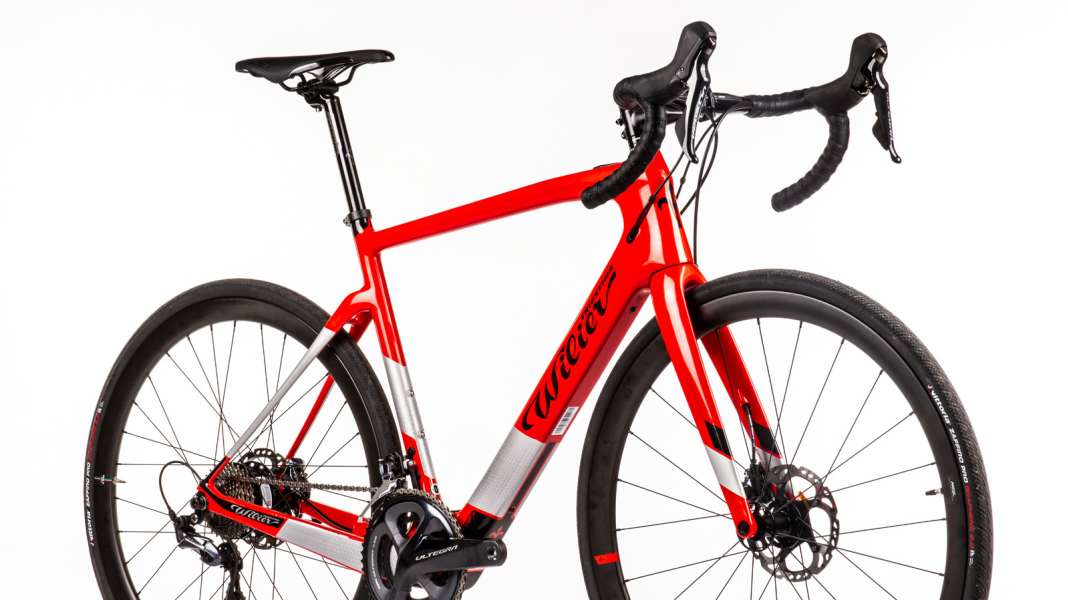

With the Mahle Ebikemotion drive, the Wilier can hardly be distinguished from a classic competition road bike, at least visually. The classic diamond frame made of carbon with a tube diameter that does not appear exaggerated conceals the battery in the down tube, while the motor itself is only visible as a rear hub motor between the brake disc and cassette on closer inspection. The bike also comes closest to a classic racing bike in terms of weight and therefore handling: at just over twelve kilograms, it is one of the lightest in its class. The bike also reacts correspondingly light-footedly during steering manoeuvres, and riding above the motor's cut-off speed of 25 km/h feels less cumbersome than with other e-road bikes. With the reasonable weight and the fully-fledged dual drive, which also offers low gears for climbing, long-term use without the motor is also conceivable. The very high frame stiffness in comparison ensures that the bike also feels stable and precise downhill, where other bikes have weaknesses.
The drive assistance can be switched on with a single button on the top tube and adjusted in three stages. Only an LED ring provides information about the riding mode and battery status, which is not self-explanatory. If you want more information, you have to read it out via a smartphone; the associated app has a huge range of functions. It can also be used to navigate or switch on the motor assistance depending on the rider's heart rate.
The maximum rated power is 250 watts; a special feature of the drive is that the assistance levels can be individually programmed via the associated app. The power is not dependent on the rider's own power output or torque, but switches on digitally: either it pushes or it doesn't push. However, as use is generally limited to climbs, the testers did not find this to be a problem. With the lightweight battery, the bike offers relatively little range in assist mode, but this can be increased with an additional battery in the frame triangle for an extra charge.
INFO AND GEOMETRY
www wilier.com
Frame material Carbon
Frame sizes XS, S, M, L, XL
Seat/top tube/head tube 530/550/167 mm
Stack/Reach/STR 575/490 mm/1.47
Wheelbase 1.005mm
EQUIPMENT
Motor/battery capacity Mahle Ebikemotion/250Wh
Gear system (chainrings/cassette) Shimano Ultegra (50/34/11-30T.)
Brakes Shimano Ultegra (160/160 mm)
Wheels/tyres Wilier Air 38/Vittoria Zaffiro Pro 28mm
MEASURED VALUES AND INDIVIDUAL NOTES
Weight of complete wheel...................12,1 kg 1,3
Battery capacity*.............................129.5Wh 3,7
Driving stability.................................82 N/mm 1,0
Seatpost spring stiffness................134 N/mm 2,0
TOUR grade: 2.0
