Premium gravel frameset from Mondraker: There are only 47 of the Arid Unlimited Faultline available!

Conclusion: Lots of Arid technology, few units

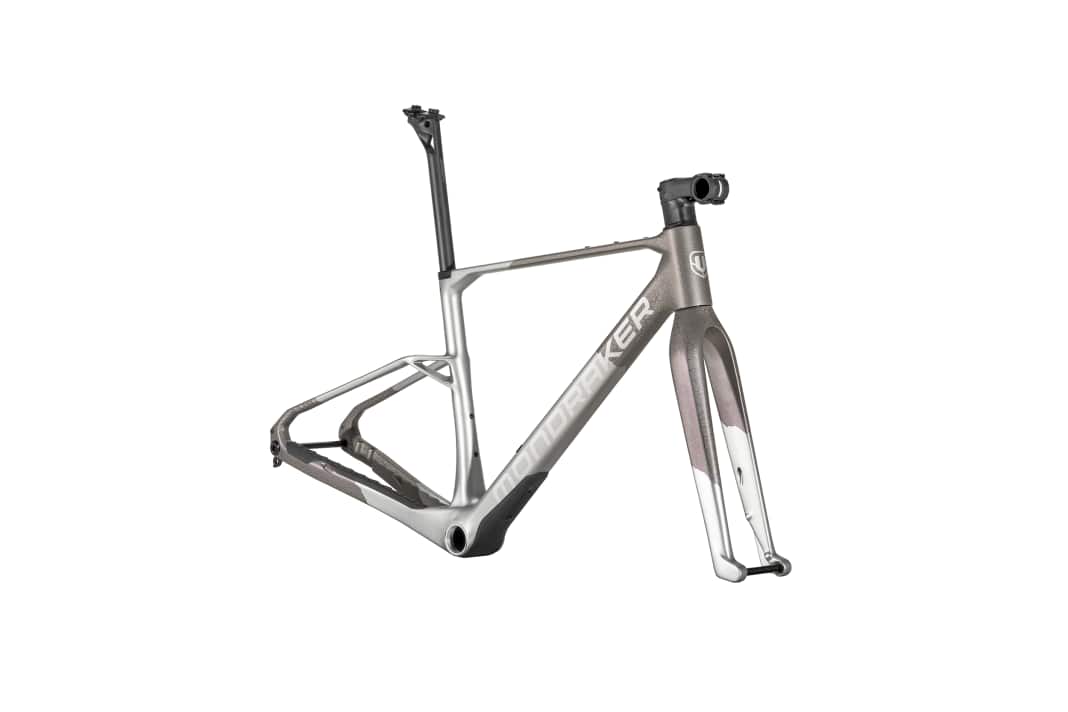

The Arid Carbon Unlimited Faultline remains, technically speaking, a new-generation Arid Carbon. The appeal of this frameset lies not in a secret carbon formula or new features, but in its appearance: the frame, fork and core components are finished with an elaborate custom paint job. With 50 millimetres of tyre clearance, in-frame storage and a UDH derailleur hanger, the frameset offers plenty of substance for fast gravel rides or long bikepacking stages. With only 47 numbered frames available, supply is severely limited. So if you want to build your very own Arid Unlimited Faultline, you’ll need to be quick. If exclusivity isn’t important to you, you can save yourself the extra cost by opting for the standard Arid frameset.

Key facts about the Mondraker Arid Carbon Unlimited Faultline

• Model: Mondraker Arid Carbon Unlimited Faultline, available exclusively as a frameset
• Limitation: 47 numbered copies, available from 15 September 2026
• Frame: Arid Stealth Air Carbon with integrated storage compartment
• Fork: Revised Stealth Air Carbon fork
• Ground clearance: Up to 50 millimetres at 700C
• Drive and brakes: Single-chainring layout, SRAM UDH, 12x142 mm rear axle, flat-mount brake mount
• Bottom bracket: T47 BSA with a wheelbase of 47.5 millimetres
• Contents of the package: Frame, fork, Onoff S9 carbon seatpost, headset, stem, seatpost clamp, thru-axles, UDH and three bags for the frame storage compartment
• Price: Mondraker currently lists the Unlimited frameset at 2,499 euros

Faultline paint rather than a technological revolution

Mondraker combines the Lunar Magnesium and Vapor Titanium colourways to create a multi-layered crack texture. The fine cracks run across the frame and fork, as if the ground had fought back after a gruelling gravel sprint. Mondraker manufactures the Unlimited models in its in-house Blue Lab and paints each one by hand. The brand thus presents the frameset as a collector’s item.

The Arid platform: Plenty of space and clear priorities

For the frame, Mondraker has opted for Stealth Air Carbon, a fully internal HHG cable routing system and a threaded BSA bottom bracket. Added to this are a 12x142-millimetre rear axle width, UDH standard and a design specifically tailored for single-chainring set-ups. This opens the door to modern gravel and MTB drivetrains. A setup with a front derailleur is not provided for.

The tyre clearance of up to 50 millimetres remains crucial to the bike’s intended use. This means the Arid is clearly aimed at more than just the classic local gravel loop. Wide tyres, low pressure, rough tracks, short single-track detours: this is exactly where the design really comes into its own.

The redesigned frame bag can hold the three carry-on bags supplied. This means the inner tube, CO₂ cartridge, multi-tool and tubeless plugs no longer need to be carried in the jersey pockets.

If you’d like to find out more about the Arid, you’ll find all the features on Mondraker’s new gravel bike here.

A slimmer fork, familiar geometry

The Stealth Air Carbon fork does away with its side mounting points. According to the manufacturer, this saves around 20 grams and is said to provide additional flex. Anyone wanting to turn their gravel bike into a packhorse therefore needs to work out a luggage strategy that utilises the frame, seatpost or handlebars. With the Faultline, Mondraker clearly prioritises a sleek design over bikepacking functionality.

The geometry remains identical to that of the Arid Carbon: a 70-degree head angle, a 74-degree effective seat angle and 425-millimetre chainstays are common to all five sizes. This promises a smooth yet responsive ride. For even rougher conditions, Mondraker also allows the use of gravel suspension forks such as the RockShox Rudy XPLR or Fox TC32.

Advantages and disadvantages

What are your thoughts on exclusivity? Would you be willing to pay more for a frameset just to get a rarer paint finish, or are features and ride characteristics the only things that matter to you? Let us know what you think in the comments!
