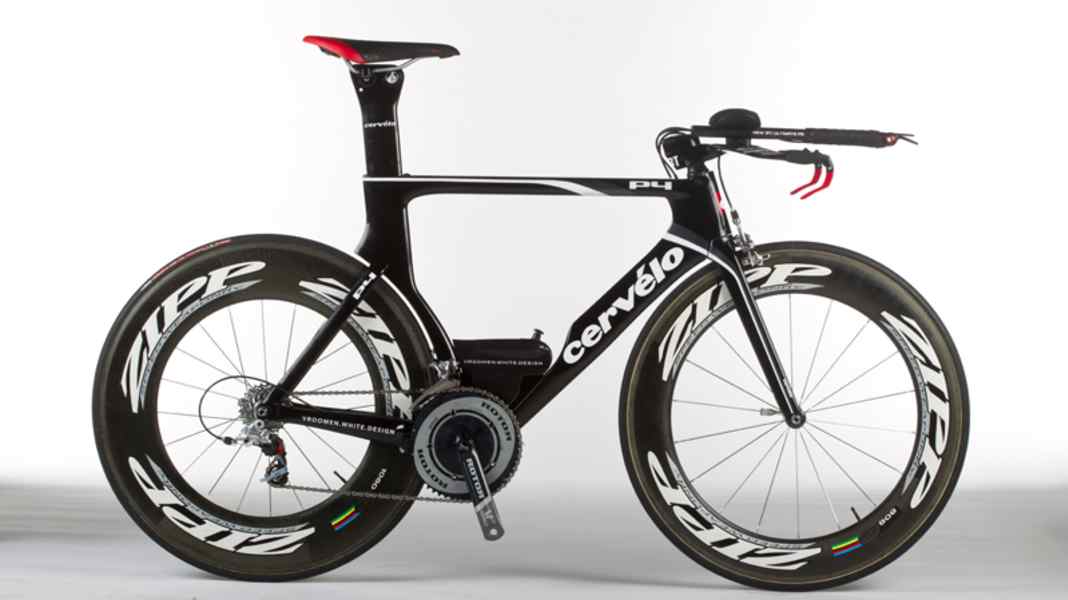

The P4 frame is the further development of the classic P3, which Cervélo continues to offer. The most striking difference to its predecessor is the aero water bottle integrated into the frame triangle, which is also a kind of spoiler. The fork, head tube and down tube have been formally harmonised and the rear brake is located under a fairing behind the bottom bracket. The wind tunnel results justify the design effort - here the P4 is one of the best, up to 5 degrees angle of attack it is even top and therefore ideal for fast time trials. Another plus point is the six frame sizes (size 48 for 26-inch wheels) - no other supplier offers so much choice. The stiffness values are also good - important for strong riders. The main criticism is the rear brake, which lacks any bite due to the angled cable routing.
Price 4,100/8,500 Euro 1)
Weight 7.9 kilos
available in specialised shops
Reference/Info www.cervelo.com
Weight frame/fork/headset bearing/seatpost* 1,442/419/60/291 grammes
Frame sizes** 48 (for 650C-LR), 51, 54, 56, 58, 61 cm
Seat angle 75°-78,5°
Steering angle 73°
Seat/top tube/head tube 520/ 545/126 mm
Wheelbase/caster 1,005/56 mm
Stack/Reach/STR*** 520/442 mm/1.18
EQUIPMENT
Steering bearing Cane Creek, 1-1/8 inch
Brakes/brake lever SRAM Red (f.), integrated (h.)/3T
Gear lever/gear shift SRAM 900TT/Red
Bottom bracket Rotor 3D (53/39 t.; BSA)
Impellers Zipp 808/ 1080
Tyres Vittoria Corsa Evo CX 21 (inner tube)
Saddle Fizik Arione Tri2
Handlebar/stem 3T Ventus Team/3T ARX Team
1) Frame set/complete bike. *Weighed weights. **Manufacturer's specification, test size greased. ***Stack/reach: projected vertical/horizontal measurement from the centre of the bottom bracket to the top of the head tube (centre); STR (stack to reach): Values below 1.30 indicate a race-like riding position, values of 1.20 and smaller indicate an extreme time trial position.
