At just over € 9,000, the Speedmax is the most expensive Canyon of all time, but a look at the spec puts the price into perspective. For a comparable package w ith an eleven-speed Di2 and super-fast wheels, you w ould easily pay € 3,000 more elsewhere. However, it wouldn't do this bike justice if you only judged it by its price. No time trial bike currently looks so well thought out. Because there would have been no room between the handlebars and frame for a clean cable routing, the bike only comes with Di2 shifting, even in cheaper versions. The result in the wind tunnel - on a par with Cervélo - confirms the high level of development effort. The unusually long wheelbase for a time trial bike should soon set a precedent in the scene. No competitor's model tracks more confidently.
Price 9,159 Euro
Weight 7.5 kilos
Available via mail order
Price frame set not available
Weight frame set** 4.2 kg
Reference/Info www.canyon.com
Frame sizes*** S, M, L
Seat/steering angle 72-80°/73.5° Seat/top/head tube 565/605/91 mm
Wheelbase/caster 1,025/58 mm
Stack/Reach**** 510/439 mm
EQUIPMENT
Brakes/brake lever Canyon/Shimano Dura-Ace
Gear lever/gear shift Shimano Dura-Ace 9070 Di2
Bottom bracket Shimano Dura-Ace 9000 (53/39 t, press-fit)
Wheels/tyres front Zipp 808 with Conti Grand Prix TT clincher/rear Lightweight Disc with Continental Competition tubular tyre
Saddle Selle Italia SLR
Handlebar/stem Canyon Speedmax CF

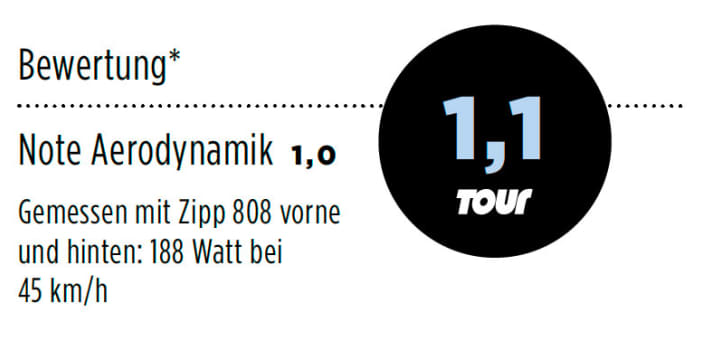

* The frame set accounts for 40 per cent of the overall score and the equipment for 60 per cent. Individual grades are included in these ratings, only some of which are printed for reasons of space. The grades are calculated up to the final grade with all decimal places; however, for the sake of clarity, all grades are given with rounded decimal places.
** Tested frame size greased.
*** Stack/reach: projected vertical/horizontal measurement from the centre of the bottom bracket to the top of the headset; STR (stack to reach): Values between 1 .45 and 1 .55 indicate a sporty riding position, values below are race-like, above are comfortable.
**** Adjusted weight for frame size 57 cm and fork steerer length 225 mm.
