Winora Yakun X10 2025 Pedelec > Trekking > Trekkingbike

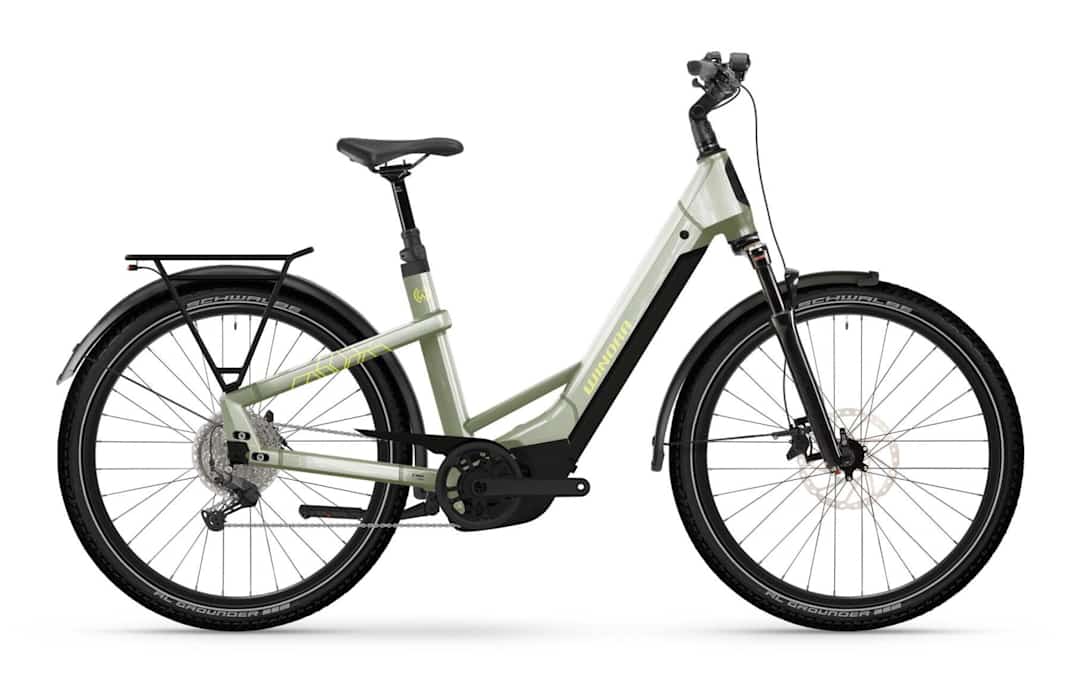

Yakun X10

Anstrengung, was ist das? Das Winora Yakun X10 bietet alles, was du für E-Bike Ausflüge brauchst – sowohl innerhalb als auch außerhalb der Stadtgrenzen. Die neueste Auflage dieses Yakun Klassikers überzeugt mit einem neuen Rahmendesign, das noch mehr Komfort und Vielseitigkeit verspricht als die Vorgänger. Dazu kommt der ebenfalls neue Bosch Performance CX Motor, der zusammen mit dem 800 Wh Akku auch ausdauernde Abenteuer spielerisch meistert. Die Luftfedergabel schluckt Stöße im Gelände gekonnt weg. Und die großvolumigen Reifen des wahlweise mit High- oder Low-Rahmen erhältlichen Trekking E-Bikes verwandeln auch grobes Kopfsteinpflaster in sanfte Asphaltpisten. Praktisch ist das Modular Rail System, mit dem du Zubehör wie zusätzliche Flaschenhalter befestigen kannst. Ein Klickfix-Halter am Steuerrohr ermöglicht zudem die Montage eines Frontgepäckträgers. So wird deine nächste Tour zu einem unvergesslichen Erlebnis – ganz ohne Anstrengung.


        In this article, we use so-called affiliate links. With every purchase through these links, we receive a commission from the merchant.
        All relevant referral links are marked with <icon></icon>. <link>Learn more</link>.



        In this article, we use so-called affiliate links. With every purchase through these links, we receive a commission from the merchant.
        All relevant referral links are marked with <icon></icon>.


Most read in category {categoryTitle}

This summary was generated automatically.

Summary

Save filter

The Big Bike Search

Note: This text is a service for our readers and was automatically generated from the data in our bike database.

Verdict on the {brandName} {modelName} test

Verdict on the {modelName} test

Topics on this page

Measurements

Data and facts about the {brandName} {modelName}

Actions

I agree to display external content. This may involve the transmission of personal data to third-party platforms. Learn more in our

At this point, you will find external content that complements the article. You can display and hide it with a click.

Filter

Login required

Save for later?

Rate this article?

 | TOUR

My Premium Guides

My Account

Pro cycling calendar {year}

{title} - Live updates on the race status

{liveticker} {stageName} - {raceName} {year}

To rank the riders, we use results from World Tour races from last year and the current year. The score is updated once a week and is calculated from the sum of wins in one-day races, time trials, stage wins and overall victories.

Saved articles

Search

Just discovered at {portalName}: {articleTitle} {shareUrl}

Many users prefer commenting under a pseudonym. Currently the name from your account is shown. You can change it directly now.

Rear brakes	Shimano Deore BR-MT410, 180mm, 180 mm
Front brakes	Shimano Deore BR-MT410, 203 mm
Brakes	Shimano Deore BR-MT410, 203 mm, Shimano Deore BR-MT410, 180 mm, 180 mm
Front brake disc	Shimano SM-RT30 203 mm, centre lock
Rear brake disc	Shimano SM-RT30, Centre Lock
Brake levers	Shimano BL-MT402, aluminium
Front brake lever	Shimano BL-MT402, aluminium
Frame	WINORA WB07AH7C510, M12 (1.00) x 148 mm thru-axle, post-mount disc brake
Frame material	Aluminium
Drivetrain	Shimano CUES RD-U6000 10s, Shadow+, 10-speed
Shift levers	Shimano Cues SL-U6000-10R, Rapidfire+
Drivetrain type	Derailleur
Fork	SR Suntour SF23 X1 Boost LO-R, air, travel: 80mm, 15 x 110mm Boost thru-axle
Fork travel (mm)	80
Sprocket	XLC Chainring 38T, Shimano Cues CS-LG300-10, HG, 11-48T
Drive	Shimano CN-LG500 10-speed, Linkglide
Drive type	Chain
Headset	Glory Wheel ICR-51.9 ZS56
Handlebar	JD TR28AL, diameter 31.8 mm, rise 19 mm
Grips	Herrmans DD42, Lockable Grips
Stem	Satori TDS-673 Diameter: 31.8 mm, Length: 90 mm, Bar bore: 31.8 mm
Saddle	Selle Royal Vivo Ergo
Seatpost	JD SP20T.1A Diameter 34.9 mm, Length: 400 mm
Seat clamp	Quick-release fastener
Wheel size	27.5“/584mm
Rims	Schürmann Yak25 32H with single eyelets
Tires	Schwalbe Al Grounder Performance, DD RaceGuard, 60-584, Reflex
Front tire	Schwalbe Al Grounder Performance, DD RaceGuard, 60-584, Reflex
Front hub	Shimano HB-TC500-B 15x110 mm, Centre Lock
Rear hub	Shimano FH-TC500-HM 12x142mm, Centre Lock
Spokes	Sapim Leader Inox, 2.0 mm diameter
Pedals	VP VPE-625 MTB Pedal with reflector, aluminium, non-slip
Front light	Trelock Skybeamer 300, 6-24V
Rear light	Spanninga Pimento XE with Brakelight, 6-36V
Mudguards	Curana Apollo 65, aluminium
Kickstand	Ursus Power 94 Central Stand
Motor manufacturer / model	Bosch Performance CX, 250 W, 85 Nm, 25 km/h
Motor type	up to 25 km/h
Display	Bosch Kiox 300 + LED Remote
Battery	Bosch PowerTube
Battery capacity (Wh)	800
Charger	Bosch Charger 4A

Winora Yakun X10

Equipment
