Brakes	Shimano MT200, aluminium, 180mm / Shimano MT200, aluminium, 160mm
Brake levers	Shimano MT201, aluminium
Frame	Aluminium 6061, post-mount disc brake
Drivetrain	Shimano Cues U3020, 9-speed
Shift levers	Shimano Cues U4000, Rapidfire
Number of gears	9
Fork	SR Suntour NEX E25, steel spring, travel: 63mm, steel steerer tube 1 1/8" – 1 1/2" tapered, 8 x 100mm
Crankset	Samox, 38
Sprocket	Shimano Cues LG300-9, 11–36 teeth
Drive	Shimano Cues LG500
Headset	VP J213PE
Handlebar	Ergobar, oversized 640mm
Grips	Ergonomic handles
Stem	Aluminium, angle-adjustable, A-Head, bar bore: 31.8mm
Saddle	Selle Royal Wave
Seatpost	XLC, spring-loaded, 31.6 mm, aluminium
Rims	Ryde Eco21, eyeletted, hollow-section rim, aluminium
Tires	Schwalbe Road Cruiser, 50-622, Reflex
Front hub	Shimano HB-TX505
Rear hub	Shimano TX505-8
Spokes	Sapim Leader
Pedals	VP VPE-461
Front light	Herrmans MR-GO, 30 lux
Rear light	AXA Juno e-bike
Mudguards	Eurofender Tempo, Chromoplastik
Kickstand	Ursus Mooi, adjustable
Rack	XinXing System Luggage Rack, MIK
Motor manufacturer / model	Bosch Performance Line Smart System, 250W, 75Nm, 25km/h
Display	Bosch Intuvia 100 + LED Remote
Battery	Bosch PowerTube
Battery capacity (Wh)	500
Charger	Bosch Standard Charger 4Ah

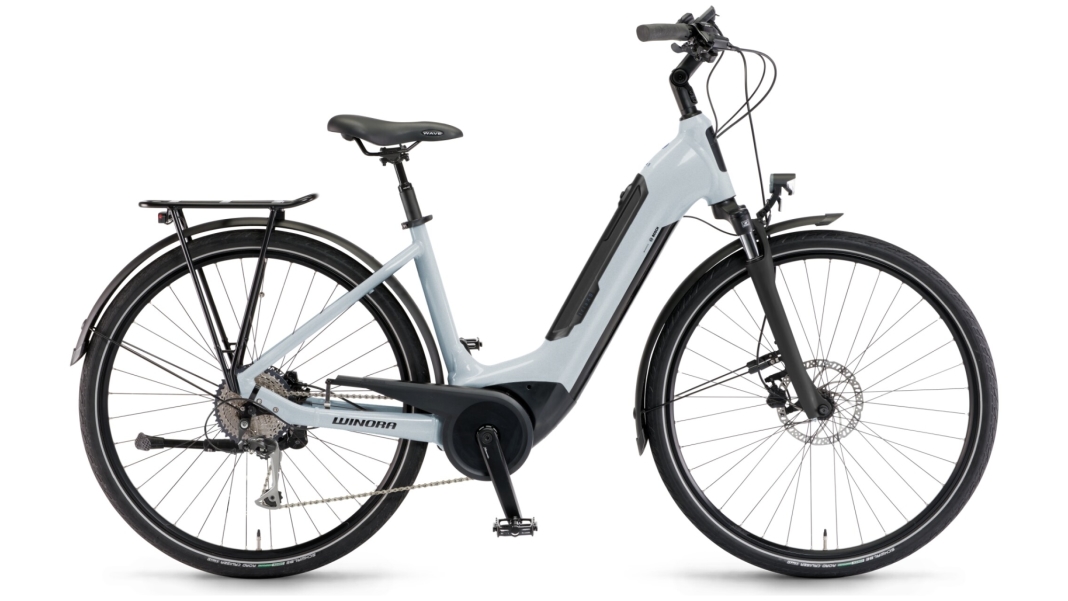

Winora Tria X9
