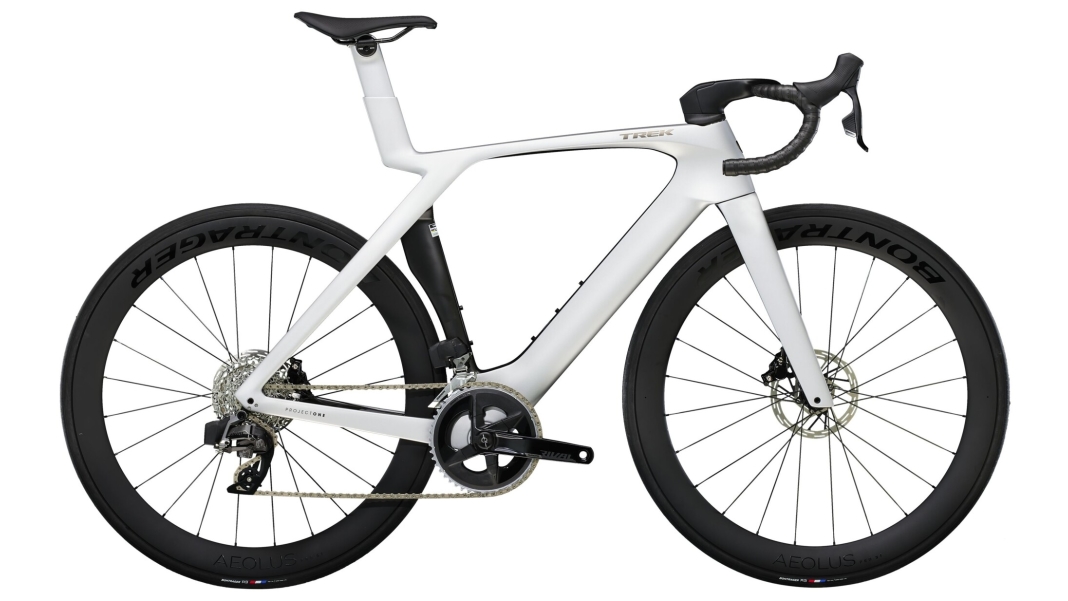

Trek Madone SLR 6 AXS Gen 7

The 2023 Madone SLR 6 AXS Gen 7 from Trek is a state-of-the-art road bike that is characterised by its advanced technology and high-quality equipment. The price for this model is EUR 8,899.

The frame of the Madone SLR 6 AXS Gen 7 is made of 800 Series OCLV Carbon and features a KVF (Kammtail Virtual Foil) tube profile for optimal aerodynamics. The IsoFlow seat tube, the invisible cable routing and the aerodynamic 3S chain guide contribute to the efficiency and aesthetics of the bike. The T47 bottom bracket and the flat mount disc brake mount are further features of the frame, which is equipped with a 142 x 12 mm thru axle. The permissible total weight is 125 kg, while the bike itself weighs just 8 kg.

The brakes consist of hydraulic disc brakes from SRAM Rival at the front and rear, each with a SRAM Paceline brake disc (160 mm) and centre lock disc mount. The gears are controlled by SRAM Rival eTap AXS shifters with 12 gears, whereby the front derailleur is also from SRAM Rival eTap AXS and is a braze-on version.

The fork of the Madone SLR 6 AXS Gen 7 is a Madone KVF full carbon fork with tapered carbon steerer, internal brake routing, flat mount disc brake mount and carbon dropouts. It is equipped with a 12x100 mm thru axle.

The crankset consists of a SRAM Rival AXS with power meter and has a gradation of 48/35 teeth and a crank arm length of 165 mm. The bottom bracket is a SRAM DUB T47 with thread. The sprocket is a SRAM XG-1250 with a gradation of 10-36 teeth and also 12-speed.

The handlebar is an integrated handlebar/stem unit made of OCLV carbon with a width of 380 mm and a stem length of 80 mm. The wheelset consists of Bontrager Aeolus Pro 51 wheels, which are also made of OCLV carbon and are tubeless ready. The front thru axle measures 100 x 12 mm, while the rear thru axle measures 142 x 12 mm.

The saddle is a Bontrager Aeolus P2 Elite with a width of 155 mm. The seatpost is a Madone aerodynamic internal carbon seat tower attachment with integrated rear light mount, without offset and in a short version.

The packaging dimensions are 21 mm in width, 119 mm in height and 189 mm in length. Other geometric data includes a reach of 37 mm, a stack of 51 mm, a seat tube length of 42 mm, a top tube length of 51 mm, a head tube angle of 72 degrees, a seat tube angle of 75 degrees, a head tube length of 10 mm, a chainstay length of 41 mm, a standover height of 69 mm and a wheelbase of 97 mm.

The Trek Madone SLR 6 AXS Gen 7 is therefore a technologically advanced road bike that is characterised by its lightness, aerodynamics and high-quality components, making it an excellent choice for ambitious cyclists.
