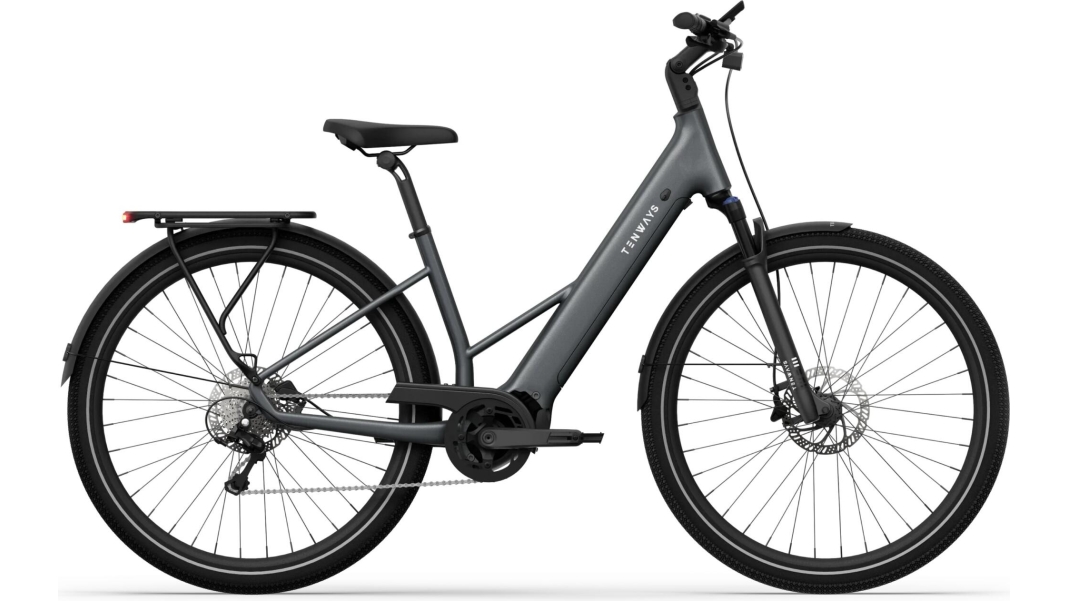

Tenways AGO AIR
Model: AGO AIR
Model year: 2025
Category: Urbanbike
Frame material: Aluminium
Weight: 28 kg
Permissible total weight: 120 kg
Wheel size: 29"/622mm
Equipment
| Rear brakes | AMT200JRRURX175,DISC,BRAKE,ASSEMBLED |
| Front brakes | AMT200JLFPRX095, DISC, BRAKE, ASSEMBLED |
| Brakes | Shimano MT200 hydraulic disc brake |
| Front brake disc | Tektro, TR160-52 |
| Rear brake disc | Tektro, TR160-52 |
| Brake levers | Aluminium, 4-finger |
| Front brake lever | Shimano MT200 hydraulic disc brake |
| Rear brake lever | Shimano MT200 hydraulic disc brake |
| Frame | AGO AIR frame, dwg: AT45D19-432, e-bike frame (mid-drive motor), Grey |
| Frame material | Aluminium |
| Drivetrain | ARDU4000GS, REAR DERAILLEUR, RD-U4000, CUES |
| Shift levers | ASLU40009RC SHIFT LEVER, SL-U4000-9R, CUES |
| Drivetrain type | Derailleur |
| Fork | 188NS-700C-HLO, alloy, black, ø24.6 × ø28.6 × 252 mm, travel 65 mm, SUSPENSION |
| Fork travel (mm) | 65 |
| Crankset | PROWHEEL alloy 170mm, powder-coated sand black, without fixing bolt |
| Sprocket | PROWHEEL Alloy 40T Chainring / SHIAMNO 9-speed cassette 11–41T |
| Drive | SHIMAO 9-speed + MID motor + chain |
| Drive type | Chain |
| Headset | H886G internal cable threading headset, hidden toothless headset, aluminium, matt black, Φ28.8 × Φ56 × Φ39.8 |
| Handlebar | MHB-A6009BT, aluminium, matt black, riser handlebar, W: 700 mm, compatible with a stem φ31.8 mm, H = 40 mm, 12°, grip distance ≥ 185 mm |
| Grips | HL-G170, black, 130 mm, bypass, with black plug, anodised aluminium black locking ring, black stainless steel screw |
| Stem | EAS-JD6609-8/0, aluminium, matt black, integrated, E: 100 mm, fits handlebars with a diameter of 31.8 mm, fits fork tubes with dimensions 28.6 × 35 mm,angle adjustable: 0° to +90°, cover suitable for front light bracket with an inner diameter of 10 mm, φ6 hole, without logo, original angle 0° |
| Saddle | Saddle A037D, with safety line, without clamp, 270 × 200 mm, |
| Seatpost | ESP-D609, aluminium, matt black, ø30.4 × 350 mm × 3.2T, offset 21 mm |
| Wheel size | 29"/622mm |
| Rims | J24SE double-walled MATT Black, A/V |
| Tires | K1185, rubber, 60 TPI, black, puncture-proof, with reflective stripe |
| Front tire | 700C × 50C, |
| Rear tire | 700C × 50C, |
| Front hub | DC-213.2 bearing, disc rotor type, aluminium, anodised black |
| Rear hub | DC-216.2 bearing, disc rotor type, aluminium, anodised black |
| Spokes | Stainless steel 304 C17,14G, 286 mm, black, with a 16 mm milled-slot copper cap (light yellow) & 284 mm, black, with a 16 mm milled-slot copper cap (light yellow) |
| Pedals | 23ZP, copper bearing, aluminium body with TPR edge, black, 9/16", BS/CPSC/DIN standard reflector |
| Front light | AGO AIR)DH011, front light, LED, 12–48 V, with 2-core cable, length including end: 150 mm |
| Rear light | rear light, model COBC, 6–36 V DC, IPX5 |
| Mudguards | YSHJD58F-700C-003/YSHJD58R-700C-020, AGO AIR, D58, aluminium-reinforced, matt black, outer width 58 mm, height 19 mm,front and rear U-type black stainless steel adjustable mudguard stays |
| Motor manufacturer / model | M410 mid-motor system: 250W, 700C, 25 km/h, torque 80 N·m |
| Motor type | up to 25 km/h |
| Display | BC240+K31 colour display, single-sided stand, 36V, 700C, 25 km/h |
| Battery | Battery, 36V, 15.6Ah, LG21700 cell 5200mAh, 30 cells, 4-core charging port (female end) (HG-Z411AM), 6P discharge connector, current limit 15A,BMS/CANBUS (suitable for Bafang M410) |
| Battery mount | Intube |
| Battery type | Lithium-ion (Li-ion) |
| Battery voltage (V) | 36V |
| Charger | LBC045100301, for lithium batteries, backflow prevention, 36V/42V, 3A, input voltage 100–240V, charging plug: new EU standard EN50604, 4-hole, 3-pin (HG-Z411,red, black and yellow – 5V indicator), AC mains plug: small EU standard two-core/Type C plug |
