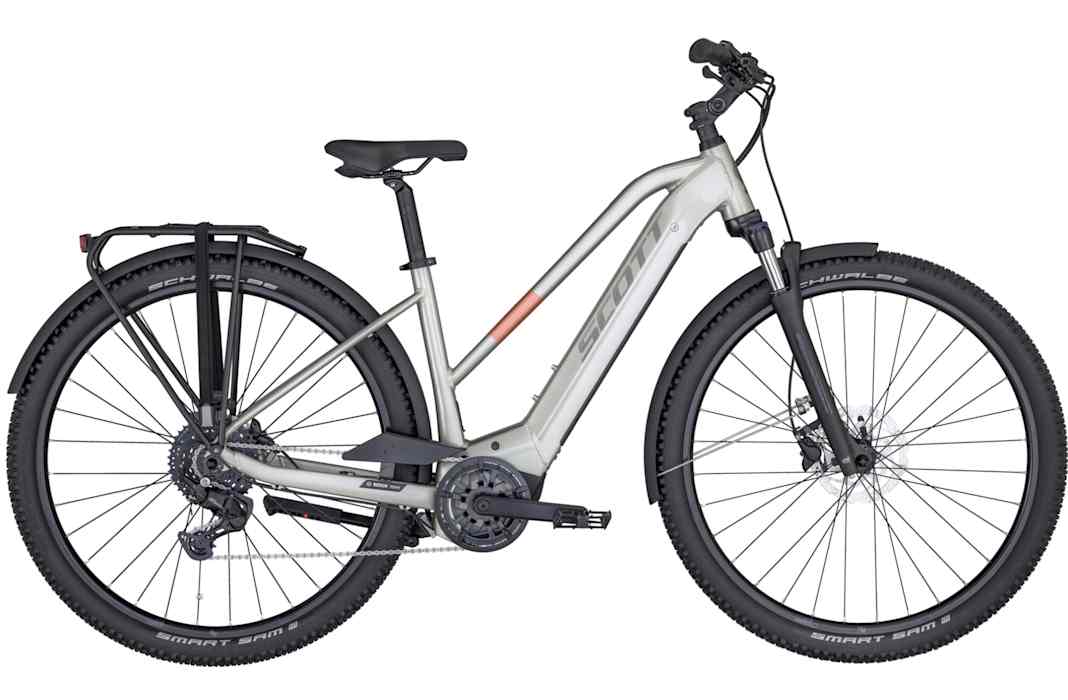

Scott Sub Cross eRIDE 30 Lady EQ

The 2024 "Sub Cross eRIDE 30 Lady EQ" model from Scott is a versatile e-bike designed specifically for women. Priced at 2799 EUR, it offers a balanced combination of performance and comfort. The frame is made from Sub eRIDE 6061 alloy and is available in sizes S to L, making it suitable for riders between 170 cm and 180 cm tall.

Braking performance is provided by Shimano BR-M200 disc brakes at the front and rear, fitted with SM-RT10 rotors – 180 mm in diameter at the front and 160 mm at the rear. Gear changes are handled by a Shimano CUES ARDU4000GS 9-speed drivetrain, controlled by the Shimano CUES ASLU40009RC shift lever. This combination offers reliable and precise gear selection.

The SUNTOUR NVX 30 NLO DS QR 700C fork, with 63 mm of travel, ensures a comfortable ride on a variety of surfaces. The bike is also fitted with VPE-506 pedals and a Miranda crankset with a length of 172.5 mm. The Shimano CS-LG3009 sprocket offers a gear ratio of 11-41T, whilst power is transmitted via a KMC eGLIDE chain.

The handlebars are Syncros UC3.0, with a width of 680 mm, a rise of 12 mm and a backsweep of 15 degrees. The stem, also a Syncros UC 3.0, is adjustable and measures 110 mm in length. The headset is semi-integrated and is manufactured by GW.

The wheelsets consist of Cross X17 Disc rims with black spokes (14G at the front, 13G at the rear). The tyres are Schwalbe Smart Sam in size 29x2.25, which provide good grip and riding comfort. The hubs are Shimano HBMT200B at the front and FHMT200B at the rear, both with 32 holes and quick-release mechanisms.

The saddle is a Syncros Capilano, mounted on a Syncros 3.0 seatpost with a diameter of 31.6 mm and a length of 350 mm. An Ursus Mooi Central kickstand ensures stability when parking the bike.

The bike is powered by a Bosch Active motor, which provides assistance up to a speed of 25 km/h. The battery is a 400Wh PowerTube battery, controlled via a Purion display. The charger delivers a current of 2A.

The bike’s total weight is 32,400 g. The frame geometry comprises a reach of 421 mm, a stack of 640 mm, a seat tube length of 480 mm and a top tube length of 598 mm. The head tube angle is 70 degrees, and the seat tube angle is 75 degrees. Other dimensions include a head tube length of 140 mm, a chainstay length of 490 mm, a bottom bracket drop of 74 mm and a fork offset of 44 mm. The top tube height is 684 mm, the fork installation height is 475 mm, the crank length is 173 mm and the wheelbase measures 1158 mm in total. The bottom bracket height is 291 mm.

In summary, the Scott Sub Cross eRIDE 30 Lady EQ M offers a well-thought-out design and high-quality components that are suitable for both everyday use and longer rides.
