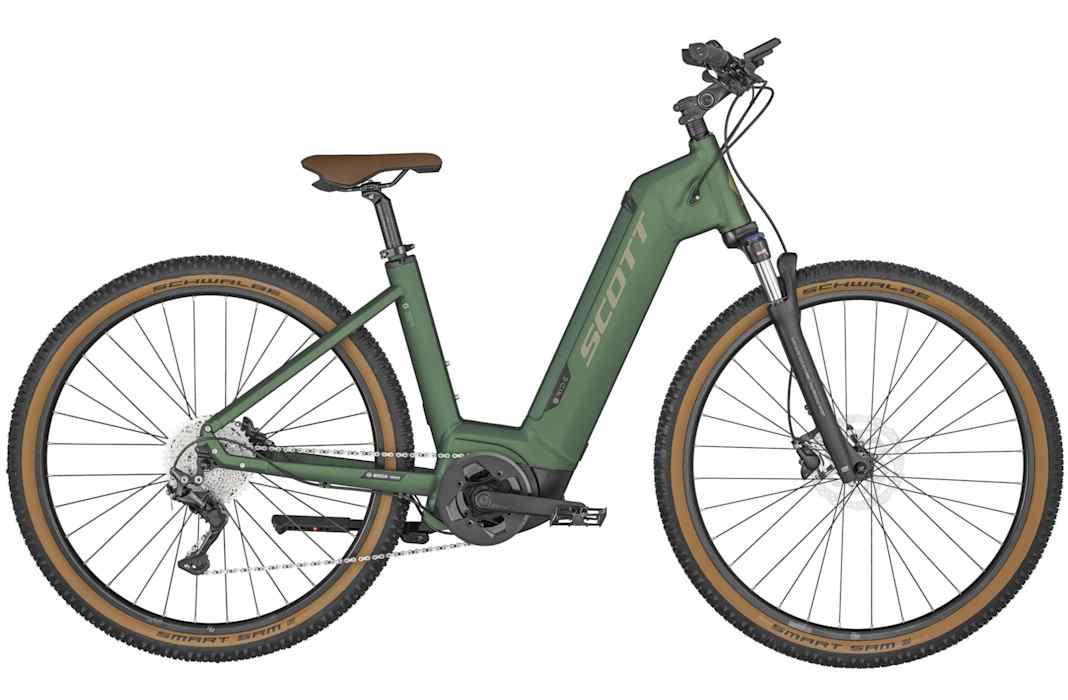

Scott Sub Cross eRIDE 10 Unisex

The “Sub Cross eRIDE 10 Unisex” model from Scott, released in 2024, is a versatile e-bike that stands out for its high-quality components and well-thought-out design. The price for this model is 3599 EUR. The frame is made from Sub eRIDE 6061 alloy and the maximum permissible weight is 128 kg, whilst the bike itself weighs 27 kg.

The bike is suitable for riders between 170 cm and 180 cm in height. The braking system consists of Shimano BR-M200 disc brakes on both wheels, with the front brake disc having a diameter of 180 mm and the rear one a diameter of 160 mm. The derailleur is a Shimano Deore RD M5120SGS with 10 speeds, operated via Shimano Deore SL-M4100 shift levers.

The bike’s fork is a SUNTOUR NVX 30 NLO DS QR 700C TAPERED with 63 mm of travel, ensuring a comfortable ride on a variety of surfaces. The bike is fitted with VPE-506 pedals and the crankset has a length of 172.5 mm. The cassette is a Shimano CSM4100 with a range of 11–42T and the drivetrain uses a KMC E10S chain.

The handlebars are Syncros UC3.0, with a width of 680 mm, a rise of 12 mm and a backsweep of 15 degrees. The stem is also a Syncros UC3.0 and is adjustable. The headset is a semi-integrated model from GW. The rims are Cross X17 Disc 32h at both the front and rear, fitted with black spokes (14G at the front, 13G at the rear). Schwalbe Smart Sam 29x2.25 tyres are fitted. The front hub is a Shimano HBMT200B 32H QR CL and the rear hub is a Shimano FHRM35BZBL5 32H QR CL.

The saddle is a Syncros Capilano and the seatpost is a Syncros 3.0 with a diameter of 31.6 mm and a length of 350 mm. An Ursus Mooi Central kickstand ensures the bike stands securely when parked.

The e-bike is powered by a Bosch Performance CX BES3s motor, which provides assistance up to a speed of 25 km/h in the EU (up to 20 mph in the USA). The battery has a capacity of 625 Wh and is charged using a 4A charger. The Intuvia 100 display shows all the key information.

The bike’s geometry comprises a reach of 402 mm, a stack of 644 mm, a seat tube length of 520 mm and a top tube length of 605 mm. The head tube angle is 70 degrees and the seat tube angle is 73 degrees. The head tube length is 170 mm, the chainstay length is 505 mm and the bottom bracket drop is 70 mm. Other dimensions include a fork offset of 42 mm, a top tube height of 499 mm, a fork installation height of 458 mm and a crank length of 173 mm. The wheelbase measures 1161 mm in total and the bottom bracket height is 304 mm.

The bike is supplied in packaging measuring 25 mm in width, 131 mm in height and 192 mm in length. The gross weight of the packaging is 35,700 g.

In summary, the Scott Sub Cross eRIDE 10 Unisex M offers a well-thought-out and robust design, complemented by high-quality components, and is suitable for a variety of riding conditions.
