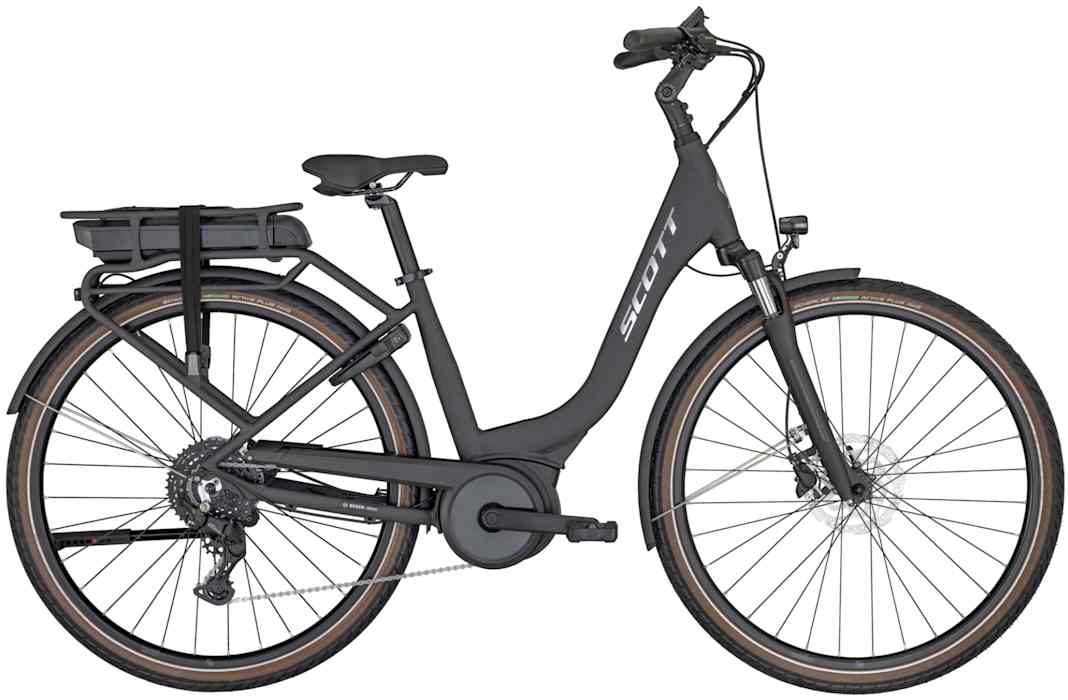

Scott Sub Active eRIDE 10 Unisex rack

The "Sub Active eRIDE 10 Unisex rack" model from Scott, released in 2024, is a versatile, high-quality e-bike that stands out for its well-thought-out features and robust construction. Priced at 3099 EUR, it offers good value for money for riders who prioritise quality and reliability.

The bike’s frame is made from 6061 alloy custom butted tubing and is fitted with a Bosch 500Wh rack battery, which is internally wired. This ensures a clean look and protects the cables from external influences. The bike is suitable for riders between 160 cm and 170 cm in height.

Safety is ensured by Shimano BR-M200 hydraulic disc brakes at both the front and rear, with a 180 mm front rotor and a 160 mm rear rotor. The gear system consists of a Shimano CUES ARDU4000GS 9-speed system, controlled by the Shimano CUES ASLU40009RC shift lever. The cassette is a Shimano CS-LG3009 with 11-41T, and power is transmitted via a KMC E9s NPBK chain.

The SUNTOUR NEX-E25 DS QR 700C fork offers 63 mm of travel, providing extra comfort on uneven terrain. An Axa Compactline 35 front light and an Axa rear light are fitted to ensure good visibility in traffic. The pedals are Syncros SP-828 and the crankset is a Miranda with a length of 172.5 mm.

The bike’s handlebars are 610 mm wide and the stem is a Syncros UC 3.0, which is adjustable. The headset is semi-integrated and the stem length is 110 mm. The rims are Cross X17 Disc 32h and the spokes are black, 14G at the front and 13G at the rear. The tyres are Schwalbe Energizer Active Plus in size 700x50c.

The hubs are from Shimano: the front hub is the HB-QC300BAL 32H QR CL model and the rear hub is the FH-FHQC300HMBZ 32H QR CL model. The saddle is a Syncros Capilano and the seatpost is a Syncros 3.0 with a diameter of 31.6 mm and a length of 350 mm. The bike is also fitted with Curana wide extruded mudguards, an Ursus Mooi rear stand and an Abus 4750L ART-approved lock. The luggage rack is a Weldon carrier with a spring-loaded flap.

The motor is a Bosch Active Plus, which provides assistance up to a speed of 25 km/h. The battery has a capacity of 500 Wh and is charged using a 2A charger. The display is an Intuvia, which clearly shows all the important information.

The bike’s gross weight is 33,660 g. The frame geometry comprises a reach of 361 mm, a stack of 636 mm, a seat tube length of 440 mm, a top tube length of 555 mm, a head tube angle of 70 degrees, a seat tube angle of 73 degrees, a head tube length of 185 mm, a chainstay length of 480 mm, a bottom bracket drop of 65 mm, a fork offset of 60 mm, a top tube height of 446 mm, a fork installation height of 440 mm, a crank length of 173 mm, a wheelbase of 1123 mm and a bottom bracket height of 290 mm.

Overall, the 2024 Scott Sub Active eRIDE 10 Unisex rack offers a comprehensive range of features and high quality for both everyday use and longer rides.
